Touchscreen Integrated Modular UPS Systems 60 Kva Battery OEM
Touchscreen Integrated Modular UPS Systems 60 Kva Battery OEM
Touchscreen Integrated Modular UPS Systems 60 Kva Battery OEM
Touchscreen Integrated Modular UPS Systems 60 Kva Battery OEM
Touchscreen Integrated Modular UPS Systems 60 Kva Battery OEM
Touchscreen Integrated Modular UPS Systems 60 Kva Battery OEM
Specifications
Brand Name :
Soeteck
Model Number :
SY-M
Certification :
CE, ISO, UL
Place of Origin :
China
MOQ :
1
Price :
To Be Negotiated
Payment Terms :
D/A
Supply Ability :
10000 Piece/Pieces per Month
Delivery Time :
2-4W
Packaging Details :
Cartons, Wooden boxes
System Capacity :
60kVA
Dimensions :
Varies by model, typically
Waveform :
Sine wave or Simulated sine wave
Backup Time :
5 to 60 minutes depending on load
Type :
Power Backup Device
Battery Type :
Sealed Lead Acid (SLA) or Lithium-ion
Output Voltage :
380-415V AC
Communication Ports :
RS232,RS485,programmable dry contact interfaces
Operating Temperature :
0°C to 40°C
Input Voltage :
380-415V AC
Noise Level :
Less than 60 dB
Description

For mission-critical scenarios like data centers, telecom facilities, and industrial applications, the Integrated Modular UPS delivers a robust blend of flexibility, reliability, and efficiency. Engineered to protect high-value sensitive equipment from power disruptions, it ensures unbroken operation even in demanding grid environments where power stability is non-negotiable.

Equipped with 20kVA/18kW intelligent power modules, the system enables flexible capacity expansion up to 60kVA—eliminating the need for full-system replacement as load demands rise. Its dual-input design and three-phase voltage support, paired with advanced IGBT module technology, achieve 96% efficiency in ECO mode. Featuring hot-swappable battery packs and smart charging management, it cuts down maintenance downtime significantly while extending battery life, making it a cost-efficient solution for long-term critical power management.


Product Family

Model No. System Capacity Module Power Input Voltage Output Voltage Efficiency Wiring
SYM060/20B › 60kVA 20kVA × 3 380/400/415VAC (Line Voltage)
220/230/240VAC (Phase Voltage)		 380/400/415VAC (Line Voltage) ≥95% 3 phase N PE

Product Features

Touchscreen Integrated Modular UPS Systems 60 Kva Battery OEM

Modular Scalable Design

Constructed with 20kVA/18kW power modules (1 to 3 modules selectable), it enables smooth capacity expansion up to 60kVA. Each module operates independently, which eliminates single-point failure risks and strengthens protection for critical loads.


Hot-Swappable Batteries

Battery packages support hot-swapping, allowing maintenance or capacity adjustment without system shutdown. The system can accommodate 32 to 44 batteries, flexibly meeting different backup time needs in diverse application scenarios.


High Power Performance

With input THD < 3% and output THD < 1%, it reduces grid harmonic interference and delivers pure, stable power to sensitive equipment. The 125% bypass overload capacity for prolonged periods ensures stable operation under fluctuating load conditions.


Intelligent Operation

Comes with a 5.7-inch LCD touchscreen (plus keyboard interface) for real-time monitoring of load rate, battery health, and module status. Supports RS232, RS485, and programmable dry contact interfaces for easy remote control and system integration.

Touchscreen Integrated Modular UPS Systems 60 Kva Battery OEM

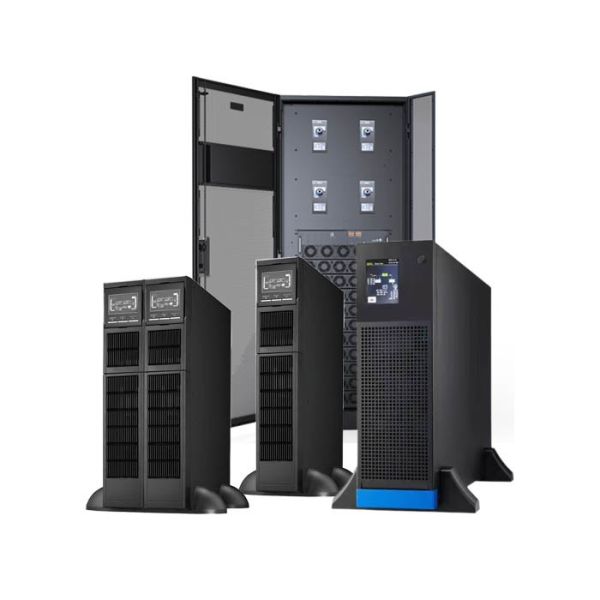

Featured Types of UPS Series


With diverse UPS series spanning industrial-grade resilience, highly scalable modularity, and smart space-efficient designs, Soeteck delivers fully personalized, industry-leading high-availability power solutions to safeguard all critical electronics with unwavering reliability.

Touchscreen Integrated Modular UPS Systems 60 Kva Battery OEM

1-60 kVA

Rack/Tower UPS

rack/tower convertible, space-saving, cost-effective, suitable for small-to-medium devices.

Touchscreen Integrated Modular UPS Systems 60 Kva Battery OEM

1-600 kVA

Industrial UPS

3-phase unbalance allowed, high overload, ideal for critical industrial & healthcare scenarios.

Touchscreen Integrated Modular UPS Systems 60 Kva Battery OEM

1-1200 kVA

Tower Online UPS

high-frequency, wide input range, high integration, fits small server rooms to large facilities.

Touchscreen Integrated Modular UPS Systems 60 Kva Battery OEM

20-1600 kVA

Modular Online UPS

hot-swappable modules, N+X redundancy, flexible expansion for dynamic load demands.

APPLICATIONS


Touchscreen Integrated Modular UPS Systems 60 Kva Battery OEM
Data Center & IDC
Touchscreen Integrated Modular UPS Systems 60 Kva Battery OEM
Medical & Healthcare
Touchscreen Integrated Modular UPS Systems 60 Kva Battery OEM
Industrial Automation
Touchscreen Integrated Modular UPS Systems 60 Kva Battery OEM
Telecommunications

FAQ


1. Why integrate an isolation transformer in the UPS?
We achieve stable voltage regulation and electrical isolation, shielding sensitive equipment from electrical disturbances and harmonics.
2. How do you ensure product quality before shipment?
We will conduct overall inspection and debugging strictly according to the process quality inspection checklist.
3. Can the system expand capacity seamlessly as power demand grows?
It features scalable modular design, enabling flexible seamless expansion to match rising power requirements.
