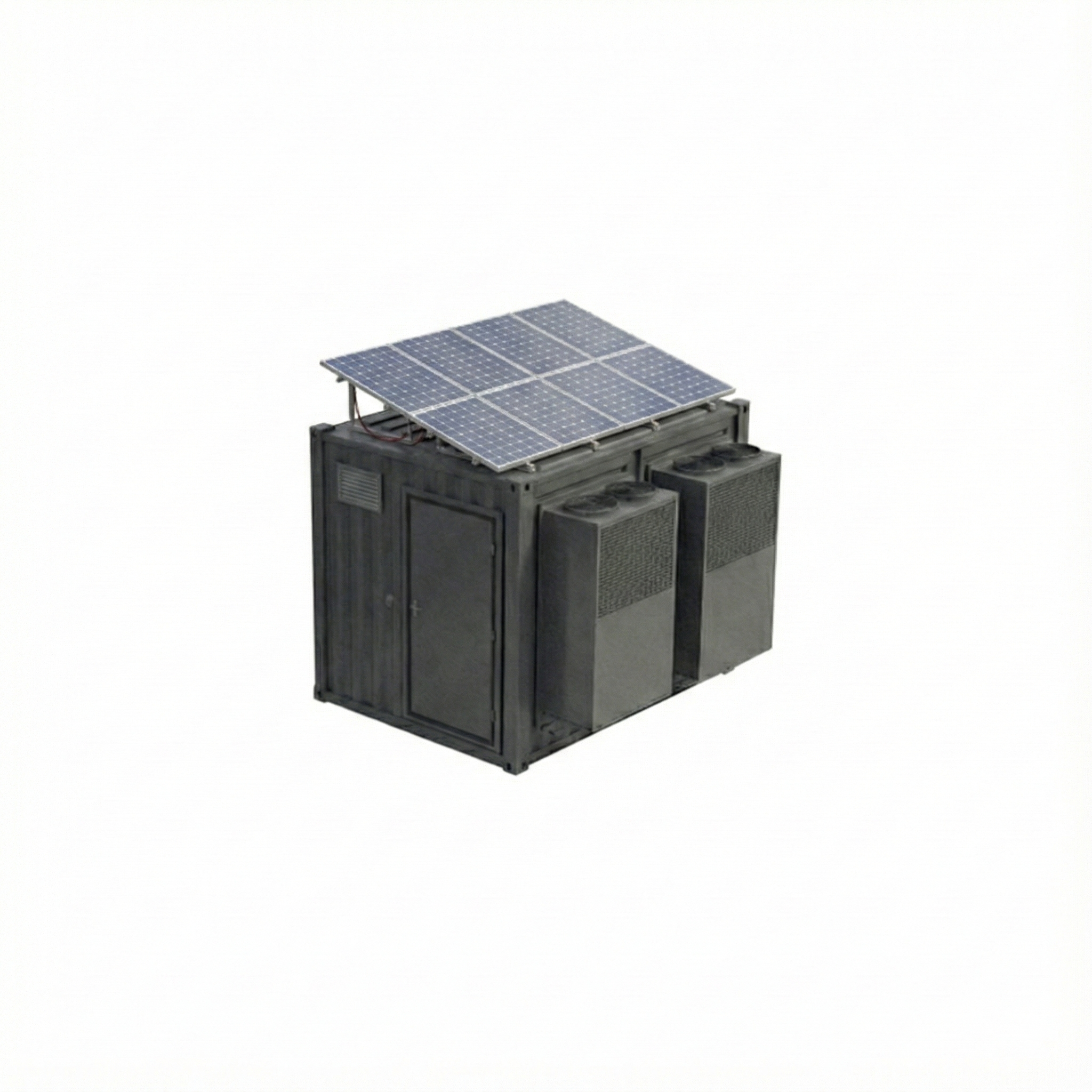

20ft 42U Container Data Center Customizable For Housing Edge Computing
20ft 42U Container Data Center Customizable For Housing Edge Computing
20ft 42U Container Data Center Customizable For Housing Edge Computing
20ft 42U Container Data Center Customizable For Housing Edge Computing
Specifications
Place of Origin :
China
Brand Name :
Soeteck
Certification :
CE, ISO, UL
MOQ :
1
Price :
To Be Negotiated
Packaging Details :
20/40ft High Cube Container
Delivery Time :
5-10 Weeks
Supply Ability :
10000/Month
Model Number :
SYICDC
Payment Terms :
D/P,D/A,L/C,T/T
Deployment Time :
5-10 Weeks
Rack Quantity :
4/9/12 pcs
Single Rack Capacity :
42U
Single Rack Max. Capacity :
6kW
Power Sypply :
N+1 Modular UPS, Capacity On Demand
Cooling Type :
In Row Pricision AC/ Liquid Cooling
Rack Dimensions (W*D*H) :
600*1100*2000mm
Applications :
Edge Computing, Remote Sites, Disaster Recovery
Monitoring System :
Yes
Door Security System :
Yes
EPO :
Yes
Video Monitoring System :
Yes
Description

SOETECK’s Cost-Efficient Container Data Center with 20ft, 40ft, Customizable Size redefines cost-effective infrastructure deployment by transforming complex server rooms into size-flexible, transportable product modules. Ranging from compact 20ft Edge Units (ideal for space-constrained sites and low-to-mid workloads) to high-density 40ft Enterprise Modules (supporting large-scale computing demands) and fully Customizable Size Clusters (tailored to unique space or capacity needs), our solutions deliver exceptional cost savings while bringing computing power directly to where data is generated.

Whether deploying in the scorching heat of the Middle East or the freezing tundra of Northern Europe, our factory-prefabricated, "All-in-One" designs ensure consistent performance at a fraction of the cost of traditional data centers—cutting construction time by up to 80% and slashing upfront investment compared to purpose-built facilities. Fully compliant with ISO shipping standards, these cost-efficient, size-adaptable container data centers (20ft, 40ft, or customized) are as mobile as your business needs, eliminating unnecessary expenses while scaling perfectly with your workload demands.


Product Family

Model No. Container Size Total Capacity Rack Qty Single Rack Load UPS Configuration Cooling
ICDC20 › 20' HQ (ISO) 54 KW 9 Racks Max 6 KW 90 kVA Modular (N+1) In-Row
ICDC40-A › 40' HQ (ISO) 24 KW 4 Racks (Spacious) Max 6 KW 45 kVA Modular (N+1) In-Row
ICDC40-B › 40' HQ (ISO) 72 KW 12 Racks Max 6 KW 120 kVA Modular (N+1) In-Row
Customized › Non-Standard Up to 500 KW Flexible Up to 20 KW+ Custom Redundancy In-Row / Liquid

Product Features

20ft 42U Container Data Center Customizable For Housing Edge Computing

Turnkey "Plug-and-Play" Delivery

Forget the complexities of multi-vendor coordination. Our containers integrate Racks, UPS, Cooling, Fire Suppression, and DCIM monitoring into a single, pre-tested unit. Once delivered, simply connect power and data, and you are live within hours, not months.


Military-Grade Environmental Protection

Built to withstand the elements. Featuring IP55-rated enclosures, C5-M anti-corrosion coating options, and insulated walls (R-value > 14), our containers isolate sensitive IT equipment from dust, moisture, and extreme temperatures (-40°C to +55°C), ensuring 99.999% availability in outdoor environments.

20ft 42U Container Data Center Customizable For Housing Edge Computing

FEATURED PRODUCTS OF DATA CENTER SOLUTIONS


Tailored to diverse deployment scenarios—including small enterprise IT rooms, retrofitted traditional data centers and outdoor edge nodes—our modular data center solutions balance performance, cost and energy efficiency.

20ft 42U Container Data Center Customizable For Housing Edge Computing

3-15 kW per Cabinet

Micro Data Center

All-in-one integrated cabinet design, plug-and-play deployment (1-3 days), remote intelligent monitoring. Ideal for edge endpoints like retail stores, ATMs and small enterprise IT rooms.

20ft 42U Container Data Center Customizable For Housing Edge Computing

8-30 kW per Cabinet

Row Modular Data Center

Column-level prefabricated design, flexible expansion by rows, fits existing server rooms without major reconstruction. PUE 1.2-1.4, perfect for medium-density enterprise IT deployments.

20ft 42U Container Data Center Customizable For Housing Edge Computing

15-40 kW per Cabinet

Aisle Containment Data Center

Airtight cold/hot aisle enclosure, 90%+ cold air utilization, PUE reduced to 1.2-1.3. Cost-effective upgrade for traditional open data centers to support high-density servers.

20ft 42U Container Data Center Customizable For Housing Edge Computing

10-500 kW (20ft/40ft)

Container Data Center

Prefabricated all-in-one container (20ft/40ft), dustproof/anti-vibration, deployable outdoors. Liquid cooling optional for AI high-density computing (PUE ≤1.1), ideal for edge & temporary computing needs.

APPLICATIONS


Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.

20ft 42U Container Data Center Customizable For Housing Edge Computing
AI Training & HPC Clusters
20ft 42U Container Data Center Customizable For Housing Edge Computing
High-Density Data Centers
20ft 42U Container Data Center Customizable For Housing Edge Computing
Modular & Container Solutions
20ft 42U Container Data Center Customizable For Housing Edge Computing
Blockchain & Crypto Mining

FAQ


1. What are the primary applications for Container Data Centers?
Container Data Centers (CDCs) are ideal for rapid capacity expansion, disaster recovery, and edge computing. They are widely used in remote oil & gas sites, military operations, large-scale sporting events, and as modular building blocks for hyperscale data centers.
2. What are the key advantages over traditional data centers?
The main benefits include speed of deployment (weeks instead of years), mobility, and scalability. Because they are factory-pre-integrated and tested, they minimize on-site construction risks and offer a "pay-as-you-grow" financial model.
3. How do containers withstand harsh outdoor environments?
CDCs are built using ruggedized ISO steel enclosures with high-grade insulation and IP55/IP65 ratings. They are designed to operate in extreme temperatures (from -40°C to +55°C) and feature specialized coatings to resist corrosion, salt spray, and sandstorms.
4. Are Container Data Centers energy efficient?
Yes. By using contained cold/hot aisles and close-coupled cooling (In-Row), CDCs significantly reduce energy waste. This precision cooling allows many units to achieve a Power Usage Effectiveness (PUE) as low as 1.15 to 1.3, making them more efficient than many traditional facilities.
5. What internal systems are included in a standard unit?
A standard CDC is an all-in-one solution including power distribution (UPS/ATS), cooling systems, fire suppression (FM200 or Novec 1230), smart environmental monitoring (DCIM), and physical security/access control systems.
