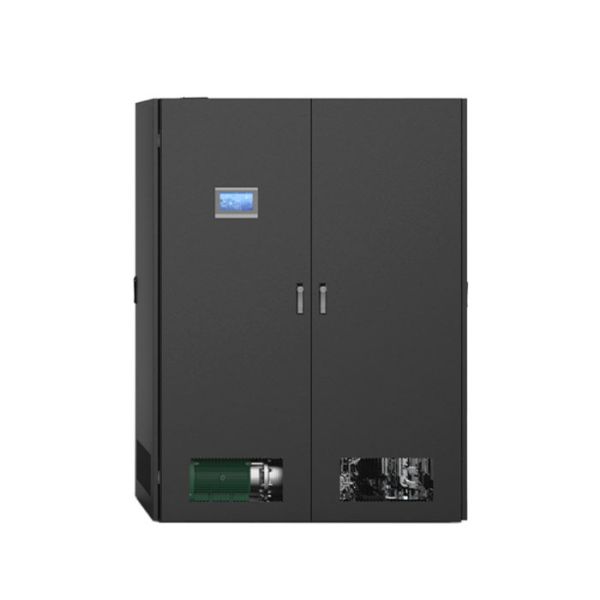

In Room Hyperscale Data Center Distribution Coolant Distribution Unit CDU 2000kW
In Room Hyperscale Data Center Distribution Coolant Distribution Unit CDU 2000kW
Specifications
Place of Origin :
China
Brand Name :
Soeteck
Certification :
CE, ISO, UL
MOQ :
1
Price :
To Be Negotiated
Payment Terms :
D/A
Supply Ability :
1000/Month
Delivery Time :
4 Weeks
Packaging Details :
WOODEN
Cooling Capacity :
2000 kW
Rated Power :
33.0 kW
Fluid Type :
Chilled Water
Flow Rate :
173.73 m³/h
Inlet and Outlet Temp. :
35/45 ℃
Dimensions (W*D*H) :
1396 x 1200 x 2245 mm
Weight :
1500 kg
Connecting Spec. :
φ159×3.0
Number of Pumps :
2
Available Head :
≥120
Description

The AlCoolit™ In-Room Coolant Distribution Unit is an industrial-grade infrastructure solution designed for hyperscale data centers. It provides massive, centralized cooling capacity to manage the thermal loads of entire server halls.

With capacities reaching 2000kW per unit, this system consolidates coolant distribution for high efficiency. It is the preferred choice for large-scale deployments where centralized management and energy efficiency are paramount.


Product Family

Model No. Cooling Capacity Rated Power Flow Rate Design Temp (In/Out) Dimensions (WxDxH)
SY-RM-1000 › 1000 kW 18.5 kW 95.39 m³/h Pri: 35/45°C
Sec: 50/40°C		 1000 x 1200 x 2200 mm
SY-RM-1350 › 1350 kW 26 kW 128.89 m³/h Pri: 35/45°C
Sec: 50/40°C		 1396 x 1200 x 2245 mm
SY-RM-2000 › 2000 kW 33 kW 190.78 m³/h Pri: 35/45°C
Sec: 50/40°C		 1396 x 1200 x 2245 mm

Product Features

In Room Hyperscale Data Center Distribution Coolant Distribution Unit CDU 2000kW

Massive Capacity

Delivering up to 2000kW of cooling power in a single unit, the SY-CDU-RM series is built for scale. It features large-diameter piping (up to DN159) to minimize pressure drop and energy consumption across massive facility loops.


Centralized Management

Consolidating your cooling distribution into a centralized "Room" level unit simplifies facility maintenance. It allows for a unified approach to water quality management, filtration, and pressure regulation for the entire data center.

In Room Hyperscale Data Center Distribution Coolant Distribution Unit CDU 2000kW

FEATURED PRODUCTS OF liquid COOLING SOLUTIONS


Focus on the core cooling demands of high-density data center deployments, where our full range of liquid cooling products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.

In Room Hyperscale Data Center Distribution Coolant Distribution Unit CDU 2000kW

In-Rack / In-Row / In-Room

Intelligent CDU Series

The heart of liquid cooling. Available in Rack-mounted (50-80kW), In-Row (350-900kW), and large-scale In-Room (up to 2MW) configurations. Features N+1 redundancy and smart control.

In Room Hyperscale Data Center Distribution Coolant Distribution Unit CDU 2000kW

PUE < 1.2

Immersion Cooling Tank

Single-phase immersion technology for ultimate heat dissipation. Integrated plug-and-play design suitable for edge nodes and high-density clusters. Silent operation with PUE < 1.2.

In Room Hyperscale Data Center Distribution Coolant Distribution Unit CDU 2000kW

Prefab & Modular

Prefab Liquid Cooling DC

Rapid-deployment modular data center. A turnkey solution integrating power, liquid cooling (Cold Plate or Immersion), and monitoring. Ideal for AI training and crypto mining.

In Room Hyperscale Data Center Distribution Coolant Distribution Unit CDU 2000kW

High-Quality

Key Accessories

Essential components for safety and efficiency. Includes high-precision Manifolds, flexible Secondary Loops, and Quick Disconnects (QD) with leak-prevention design.

APPLICATIONS


Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.

In Room Hyperscale Data Center Distribution Coolant Distribution Unit CDU 2000kW
AI Training & HPC Clusters
In Room Hyperscale Data Center Distribution Coolant Distribution Unit CDU 2000kW
High-Density Data Centers
In Room Hyperscale Data Center Distribution Coolant Distribution Unit CDU 2000kW
Modular & Container Solutions
In Room Hyperscale Data Center Distribution Coolant Distribution Unit CDU 2000kW
Blockchain & Crypto Mining

FAQ


1. What industrial protocols are supported?
The SY-CDU-RM series supports industrial-grade Modbus and SNMP protocols, ensuring seamless integration with Building Management Systems (BMS) and DCIM for centralized control.
2. How is water quality maintained?
The system includes advanced filtration and can be equipped with real-time water quality monitoring sensors. This ensures the coolant remains within specification to prevent corrosion and bacterial growth.
3. What power supply is required?
These high-capacity units typically require a 3-phase 380V/50Hz power supply to drive the powerful circulation pumps and control systems.
