ODM Data Center Infrastructure Components Quick Disconnect Coupling For Liquid Cooling Solutions
ODM Data Center Infrastructure Components Quick Disconnect Coupling For Liquid Cooling Solutions
Specifications
Brand Name :
Soeteck
Model Number :
1
Certification :
CE, ISO, UL
Place of Origin :
China
MOQ :
1
Price :
asdfadfdasf
Payment Terms :
D/A
Supply Ability :
asdfasdfa
Delivery Time :
fasdfasdf
Packaging Details :
sdfasdfasdfasd
1 :
1
3 :
3
Number Of Outlets :
4 to 12
Power Capacity :
500VA to 3000VA
Transfer Time :
Typically 2-10 milliseconds
Dimensions :
Varies by model, typically 150x350x200 mm
Waveform :
Sine wave or Simulated sine wave
Backup Time :
5 to 60 minutes depending on load
Type :
Power Backup Device
Weight :
5 to 15 kg
Battery Type :
Sealed Lead Acid (SLA) or Lithium-ion
Output Voltage :
220-230V AC
Communication Ports :
USB, RS-232, or Network Management Card
Operating Temperature :
0°C to 40°C
Input Voltage :
100-240V AC
Noise Level :
Less than 40 dB
Total Number of Cabinets :
1
Available Space for IT Equipment :
21-151u
UPS Capacity :
Edge sites, remote offices, harsh environments
Cooling Type :
Integrated liquid cooling or air cooling
Cooling Capacity :
High
Dimensions (W*D*H) :
Less than or equal to 1.2
Description

Quick Disconnect Coupling for Liquid Cooling Solutions


The Quick Disconnect Coupling (QDC) is the vital connector ensuring the integrity of the entire liquid cooling circulation system. It enables rapid connection and disconnection of devices without leakage, significantly reducing the workload for liquid maintenance and improving operational efficiency.

Our QDC solutions offer free connection and disconnection under pressure with zero leakage. Available in Manual Self-Fastening and Blind Connection series, they feature highly reliable sealing and support customized materials including stainless steel, aluminum, and copper to meet diverse cooling requirements.


Product Family

Model Locking Mechanism Load Type Working Medium Description
CGN Series › Self-Fastening Normal General Coolant Manual connection via sliding sleeve, steel ball fastening.
CGQ Series › Quick Connector Light Load Glycol, Aqueous Solution Direct steel ball fastening for rapid manual operation.
CGB Series › Blind Connection Light Load Glycol, Aqueous Solution Locked by external structure (e.g., chassis), no internal fastening.
UQD Series › Universal Universal Various Available in 2/4/6/8 inch equivalents, SUS304/316 Base.

Product Features


Zero-Leakage Guarantee

Our couplings feature a Bidirectional Self-Sealing design. When disconnected, both ends automatically seal to prevent any coolant spillage. This ensures clean maintenance and enables safe "hot-swapping" of liquid-cooled components.


Versatile Material Options

We offer a wide range of sealing materials to match your specific coolant and temperature needs, including EPDM (-45~150°C for Ethylene Glycol), FKM (strong acid/alkali resistance), and NBR. Body materials include SUS304, SUS316, and Anodized Aluminum.

FEATURED PRODUCTS OF liquid COOLING SOLUTIONS


Focus on the core cooling demands of high-density data center deployments, where our full range of liquid cooling products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.

ODM Data Center Infrastructure Components Quick Disconnect Coupling For Liquid Cooling Solutions

In-Rack / In-Row / In-Room

Intelligent CDU Series

The heart of liquid cooling. Available in Rack-mounted (50-80kW), In-Row (350-900kW), and large-scale In-Room (up to 2MW) configurations. Features N+1 redundancy and smart control.

ODM Data Center Infrastructure Components Quick Disconnect Coupling For Liquid Cooling Solutions

PUE < 1.2

Immersion Cooling Tank

Single-phase immersion technology for ultimate heat dissipation. Integrated plug-and-play design suitable for edge nodes and high-density clusters. Silent operation with PUE < 1.2.

ODM Data Center Infrastructure Components Quick Disconnect Coupling For Liquid Cooling Solutions

Prefab & Modular

Prefab Liquid Cooling DC

Rapid-deployment modular data center. A turnkey solution integrating power, liquid cooling (Cold Plate or Immersion), and monitoring. Ideal for AI training and crypto mining.

ODM Data Center Infrastructure Components Quick Disconnect Coupling For Liquid Cooling Solutions

High-Quality

Key Accessories

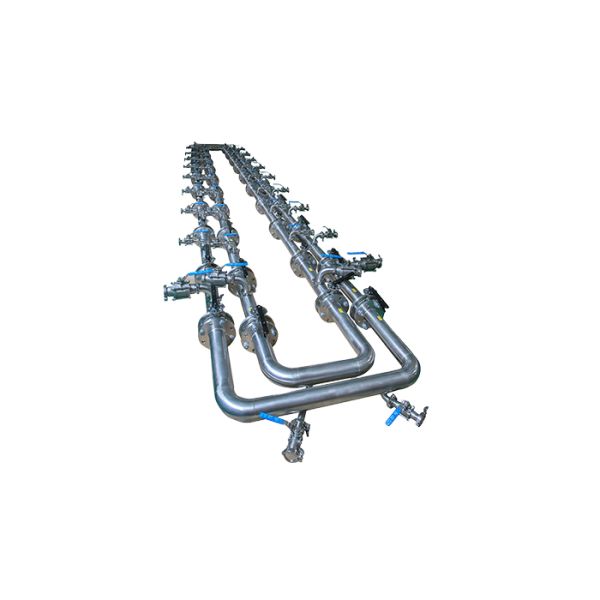

Essential components for safety and efficiency. Includes high-precision Manifolds, flexible Secondary Loops, and Quick Disconnects (QD) with leak-prevention design.

APPLICATIONS


Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.

ODM Data Center Infrastructure Components Quick Disconnect Coupling For Liquid Cooling Solutions
AI Training & HPC Clusters
ODM Data Center Infrastructure Components Quick Disconnect Coupling For Liquid Cooling Solutions
High-Density Data Centers
ODM Data Center Infrastructure Components Quick Disconnect Coupling For Liquid Cooling Solutions
Modular & Container Solutions
ODM Data Center Infrastructure Components Quick Disconnect Coupling For Liquid Cooling Solutions
Blockchain & Crypto Mining

FAQ


1. What is the difference between Self-Fastening and Blind Connection?
Self-Fastening (e.g., CGN/CGQ) uses an internal steel ball mechanism to lock the connection manually. Blind Connection (e.g., CGB) has no internal lock and relies on external force (like sliding a server into a chassis) to maintain connection, enabling automatic docking.
2. Which sealing material should I choose for data center cooling?
For standard data center coolants like Ethylene Glycol (EG) or Deionized Water, EPDM is recommended due to its excellent compatibility and temperature range (-45°C to 150°C).
3. Do you support customized interfaces?
Yes, we offer a variety of interface modes including Internal Thread, External Thread, Flange, Pagoda (Barb), and Union connectors to match your existing piping infrastructure.
