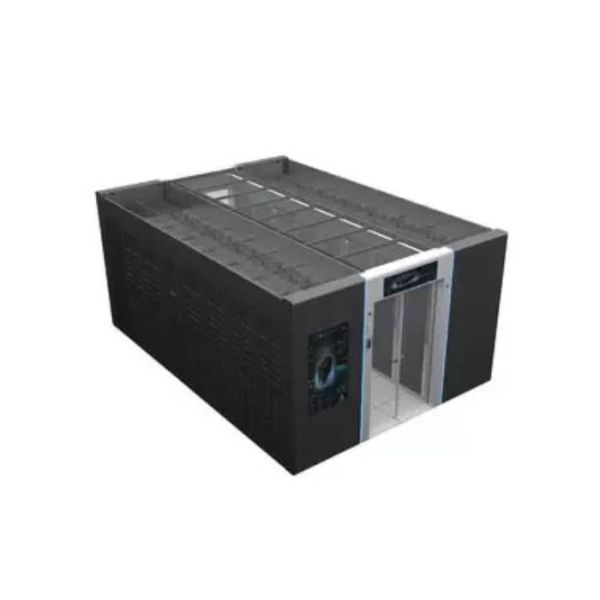

High Density Hot Cold Aisle Containment Data Center 14 Rack 5kW OEM
High Density Hot Cold Aisle Containment Data Center 14 Rack 5kW OEM
Specifications
Brand Name :
Soeteck
Model Number :
1
Certification :
CE, ISO, UL
Place of Origin :
China
MOQ :
1
Price :
To Be Negotiated
Payment Terms :
D/A,L/C,D/P,T/T
Supply Ability :
10000/Month
Delivery Time :
5-10 Weeks
Packaging Details :
Wooden
Total Racks :
12
Power Input :
380V, 50/60HZ
Single Rack Capacity :
42U
Single Rack Max. Capacity :
5kW
Power Sypply :
15KVA*5(4+1)
Available U Space :
On Demand
Cooling Type :
In-Row AC
Cooling Capacity :
4*25.5KW, 3+1 Redundancy
Communication Ports :
USB, RS-232, or Network Management Card
Applications :
Edge Computing, Large-Scale Data Center
Description

For high-density IT environments where energy efficiency and reliable cooling are non-negotiable, the Cold Aisle Containment Data Center with In-Row ACs delivers a turnkey solution that rethinks how data centers use cooling. By enclosing the cold aisle and pairing it with In-Row precision air conditioners, this system eliminates the waste of hot and cold air mixing—boosting energy efficiency far beyond what traditional data centers can achieve, all in a pre-built setup that’s ready to deploy quickly.

Built for mission-critical operations, this solution combines the reliability of modular power protection with the precision of targeted cooling, making it ideal for small and medium businesses, financial branch offices, and edge computing nodes. It’s designed to be installed easily on any floor type—concrete or raised—without extensive construction work, while still delivering the high-level reliability needed for demanding computing tasks like high-performance processing.


Product Family

Configuration IT Cabinets Power / Cab UPS System Cooling Capacity Refrigeration Type Dimensions (L*W*H)
Plan 1 › 12 Cabinets 5 kW 90K Rack Modular
(15kVA modules, 4+1)		 25.5kW x 4
(3+1 Redundancy)		 In-Row AC 4200 x 3600 x 2000 mm
Plan 2 › 12 Cabinets 5 kW 120K Tower Modular
(30kVA modules, 3+1)		 65.5kW x 2
(1+1 Redundant)		 In-Row AC 4800 x 3600 x 2000 mm
Plan 3 › 14 Cabinets 5 kW 120K Tower Modular
(30kVA modules, 3+1)		 71.1kW x 1
(N Redundancy)		 Room-Level AC 4800 x 3600 x 2000 mm
Plan 4 › 14 Cabinets 5 kW 120K Tower Modular
(30kVA modules, 3+1)		 Custom Capacity
(Tailored)		 FAN WALL 4800 x 3600 x 2000 mm
Plan 5 › 18 Cabinets 5 kW Modular N+1
(25kVA modules, 4+1)		 31.1kW x 4
(3+1 Redundancy)		 In-Row AC 6000 x 3600 x 2000 mm
Plan 6 › 24 Cabinets 5 kW Modular N+1
(25kVA modules, 5+1)		 40.9kW x 4
(3+1 Redundancy)		 In-Row AC 8400 x 3600 x 2000 mm
Custom › ≤ 48 Cabinets ≤ 15 kW Max 500kVA
(2N/N+1 Redundancy)		 Flexible Capacity
(Row or Room)		 Air / Water / Chilled Length ≤ 15000 mm

Product Features

High Density Hot Cold Aisle Containment Data Center 14 Rack 5kW OEM

Smart Safety & Fire Protection

The enclosed cold aisle features a fire-responsive magnetic skylight that automatically opens when a fire alarm is triggered, ensuring fire suppression gas can fill the space instantly and effectively. For access control, the system supports multiple secure verification methods—including facial recognition, fingerprint, password, and IC card—while electric sliding doors with panoramic tempered glass balance strict security with full visibility of the equipment inside.


Energy-Efficient Precision Cooling

By combining fully enclosed cold/hot aisles with In-Row air conditioning, cooling is delivered exactly where heat is generated—right next to server racks. This design stops hot and cold air from mixing, making cooling far more efficient than traditional room-wide cooling systems. The solution also includes an intelligent sleep mode for power modules, cutting down on unnecessary energy use and keeping operational costs low while maintaining optimal cooling performance.

High Density Hot Cold Aisle Containment Data Center 14 Rack 5kW OEM

Full Series OF HIGH-DENSITY DATA CENTER SOLUTIONS


Focus on the core cooling demands of high-density data center deployments, where our full range of premium products leverages advanced technological advantages to reliably safeguard continuous, efficient, and stable operation.

High Density Hot Cold Aisle Containment Data Center 14 Rack 5kW OEM

5-30 kW per Cabinet

Cold Aisle Data Center

Airtight cold aisle enclosure, 90%+ cold air utilization rate, PUE ≤ 1.2, fast deployment and flexible expansion for medium-density IT loads.

High Density Hot Cold Aisle Containment Data Center 14 Rack 5kW OEM

10-80 kW Total Power

20ft Container DC

Prefabricated all-in-one design, anti-vibration & dust-proof, plug-and-play, ideal for edge computing and temporary computing demand scenarios.

High Density Hot Cold Aisle Containment Data Center 14 Rack 5kW OEM

30-100 kW per Cabinet

40ft Cold Plate Container DC

Hybrid air-liquid cooling, direct heat dissipation from GPU/CPU, AI-ready design, high power density with low energy consumption.

High Density Hot Cold Aisle Containment Data Center 14 Rack 5kW OEM

50-200 kW per Cabinet

40ft Immersion Container DC

Immersion cooling with dielectric fluid, 100x higher heat dissipation efficiency than air cooling, PUE ≤ 1.1, perfect for ultra-high density AI clusters.

APPLICATIONS


Empowering next-generation infrastructure with superior thermal management for high-wattage computing demands.

High Density Hot Cold Aisle Containment Data Center 14 Rack 5kW OEM
AI Training & HPC Clusters
High Density Hot Cold Aisle Containment Data Center 14 Rack 5kW OEM
High-Density Data Centers
High Density Hot Cold Aisle Containment Data Center 14 Rack 5kW OEM
Modular & Container Solutions
High Density Hot Cold Aisle Containment Data Center 14 Rack 5kW OEM
Blockchain & Crypto Mining

FAQ


1. Can the 12-rack module be installed without a raised floor?
Yes, this is a key advantage of our edge solution. It can be deployed directly on a concrete floor, significantly reducing room height requirements and civil engineering costs.
2. Is the noise level suitable for an office environment?
The system features a fully enclosed design with sound-insulated glass doors, keeping operational noise below 65dB, making it suitable for office-adjacent server rooms.
3. What is the standard lead time for international delivery?
For standard models (12/18/24/30/Customized racks), production typically takes 25-60 days. For customized solutions, the lead time is approximately 45 days after design approval. We ship globally in reinforced, fumigation-free wooden crates.
4. Do you provide on-site installation services?
We provide comprehensive installation manuals and 24/7 video technical support. For large-scale projects, we can dispatch engineers to your site for installation guidance and commissioning upon request.
5. What certifications do your data centers hold?
Our manufacturing facilities are ISO 9001/14001 certified. The modular data center components (UPS, Cooling, PDU) comply with CE, UL, and TIER-ready standards, ensuring global regulatory compliance.
