ADSS 24 Cores Single Mode Fiber Optic Cable 48 Threads With One Tube HDPE Jacket
ADSS 24 Cores Single Mode Fiber Optic Cable 48 Threads With One Tube HDPE Jacket
ADSS 24 Cores Single Mode Fiber Optic Cable 48 Threads With One Tube HDPE Jacket
ADSS 24 Cores Single Mode Fiber Optic Cable 48 Threads With One Tube HDPE Jacket
Specifications
Model Number :
Fiber Optic Cable
Certification :
CE
Place of Origin :
Shenzhen , China
MOQ :
NO
Price :
Contact us for the price
Payment Terms :
T/T, Western Union
Delivery Time :
10-15 days upon receipt of payment
Packaging Details :
drums
Application :
OUTDOOR
Jacket materi :
PE
Span :
80-1000m
Fiber Type :
Single mode
Operating temperature :
-40 ~ +70°c
Weight :
132~182kg/km
Description

ADSS 24 Cores Single Mode Fiber Optic Cable,48 threads with one tube, HDPE jacket and FO number of tube 12

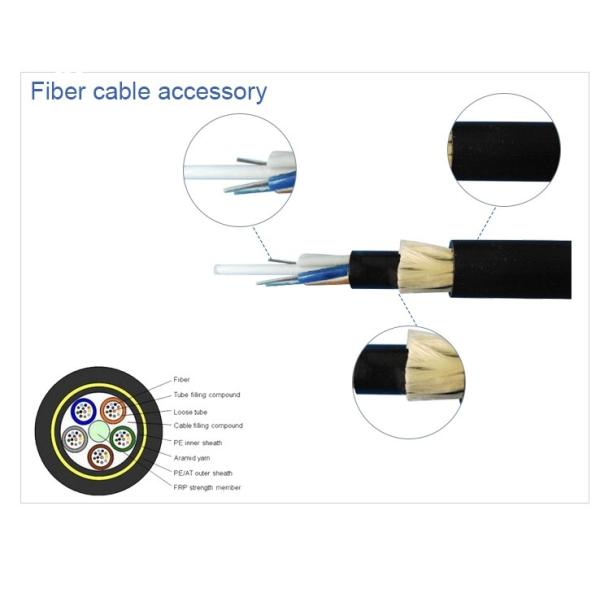

Construction:

250μm Colored Fiber
PBT loose Tube
Tube Filling Compound(Gel)
FRP central strength member
Cable filling compound
PE inner sheath
Aramid yarn
PE outer sheath

Characteristic:
Can be installed without shutting off the power
Excellent AT performance. The maximum inductive at the operating point of AT sheath can reach 25kV
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
Large span lengths and the largest span is over 800m
Good performance of tensile strength and temperature
The design life span is over 30 years

Place of Origin: Guangdong, China Application for: Aerial/Self-supporting
Model Number: ADSS Fiber Type: Single mode
Number of Conductors: ≥ 10 Fiber Count: 12~144
Outer Sheath Material: PE/AT Span: 80-1000m
Voltage: within 220kv Operating temperature: -40 ~ +70°c
Weight: 132~182kg/km Custom: Customized available

ADSS 24 Cores Single Mode Fiber Optic Cable 48 Threads With One Tube HDPE Jacket
