GYTY53 Stranded Loose Tube Single Mode Armored 48 Core Fiber Optic Cable Outdoor
GYTY53 Stranded Loose Tube Single Mode Armored 48 Core Fiber Optic Cable Outdoor
GYTY53 Stranded Loose Tube Single Mode Armored 48 Core Fiber Optic Cable Outdoor
GYTY53 Stranded Loose Tube Single Mode Armored 48 Core Fiber Optic Cable Outdoor
Specifications
Place of Origin :
Shenzhen,China
MOQ :
No
Price :
contact us for the price
Payment Terms :
T/T, Western Union
Model Number :
Fiber Optic Cable
Certification :
CE
Packaging Details :

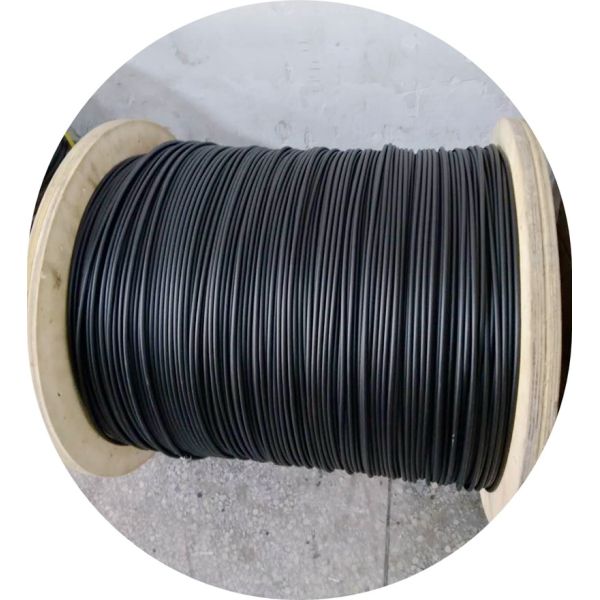

Drum
Delivery Time :
10-15 days upon receipt of payment
Fiber type :
SM/MM
Packing :
Wooden Drum
Armour Material :
Corrugated Steel Tape
operation temperature :
-40+70℃
Strength member :
Central Steel Wire
Application :
Telecom/network
Description

GYTY53 Stranded Loose Tube Single Mode Armored Fiber Cable Outdoor

GYTY53 Stranded Loose Tube Single Mode Armored 48 Core Fiber Optic Cable Outdoor

Description

GYTY53 Outdoor Fiber Optic Cable is used for direct buried underground. GYTY53 fiber cable suits for long distance and LAN fiber communications.

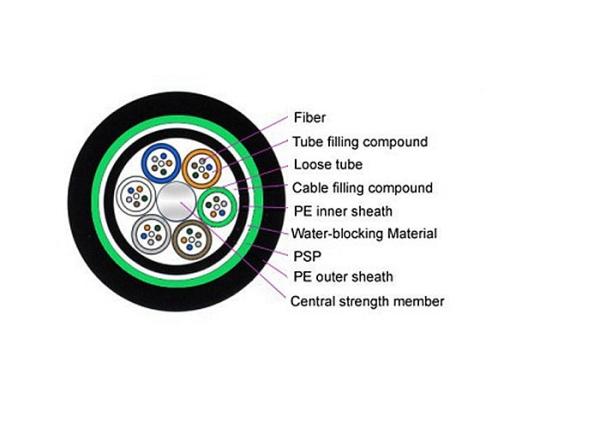

The fibers, 125μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes (and fillers) are stranded around the strength member into a compact and circular cable core. The cable core is filled with the filling compound to protect it from water ingress, over which a thin PE inner sheath is applied. After the PSP is longitudinally applied over the inner sheath, the cable is completed with a PE outer sheath.

Characteristics

· Good mechanical and temperature performance

· High strength looes tube that is hydrolysis resistant

· Special tube filling compound ensure a critical protection of fiber

· Crush resistance and flexibility

· The following measures are taken to ensure the cable watertight:

- Steel wire used as the central strength member

- Loose tube filling compound

- 100% cable core filling

- PSP enhancing moisture-proof

- Water-blocking material

Technical Parameters
Cable Type Fiber Count Tubes Fillers Cable Diameter mm Cable Weight kg/km Tensile Strength Crush Resistance Bending Radius
Long/Short Term Long/Short Term Static/ Dynamic
N N/100mm mm
GYTY53-2~6 2~6 1 5 13.8 188 1000/3000 1000/3000 10D/20D
GYTY53-8~12 8~12 2 4 13.8 188 1000/3000 1000/3000 10D/20D
GYTY53-14~18 14~18 3 3 13.8 188 1000/3000 1000/3000 10D/20D
GYTY53-20~24 20~24 4 2 13.8 188 1000/3000 1000/3000 10D/20D
GYTY53-26~30 26~30 5 1 13.8 188 1000/3000 1000/3000 10D/20D
GYTY53-32~36 32~36 6 0 13.8 188 1000/3000 1000/3000 10D/20D
GYTY53-38~48 38~48 4 1 14.6 206 1000/3000 1000/3000 10D/20D
GYTY53-50~60 50~60 5 0 14.6 206 1000/3000 1000/3000 10D/20D
GYTY53-62~72 62~72 6 0 15 215 1000/3000 1000/3000 10D/20D
GYTY53-74~84 74~84 7 1 16.4 254 1000/3000 1000/3000 10D/20D
GYTY53-86~96 86~96 8 0 16.4 254 1000/3000 1000/3000 10D/20D
GYTY53-98~108 98~108 9 1 17.8 290 1000/3000 1000/3000 10D/20D
GYTY53-110~120 110~120 10 0 17.8 290 1000/3000 1000/3000 10D/20D
GYTY53-122~132 122~132 11 1 19.5 340 1000/3000 1000/3000 10D/20D
GYTY53-134~144 134~144 12 0 19.5 340 1000/3000 1000/3000 10D/20D
GYTY53-146~216 146~216 19.5 345 1000/3000 1000/3000 10D/20D
