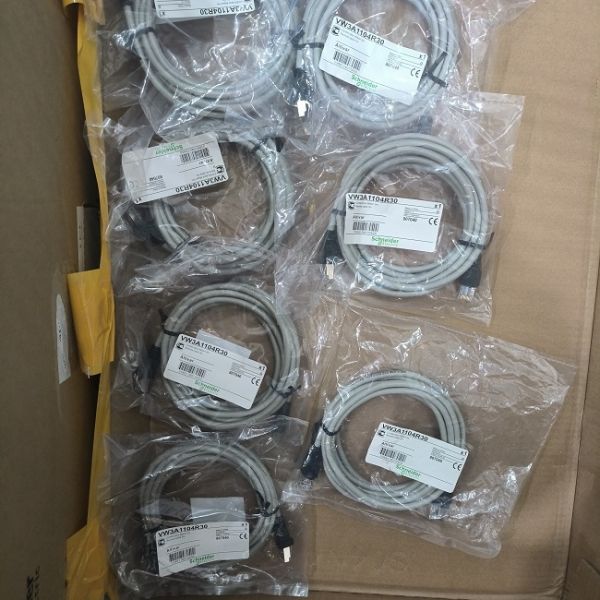

Schneider Electric VW3A1104R30 Remote Cable 3m For Graphic Display Terminal

1. Overview of the Schneider Electric VW3A1104R30

The Schneider VW3A1104R30 is a 3-meter-long, specialized communications cable with shielded RJ45 connectors on both ends. It is designed to quickly connect Schneider graphic display terminals (such as Magelis HMIs or advanced control panels) to Altivar/Altistart series inverters and TeSys T motor management systems. The shield is integrally molded into the injection-molded jacket, ensuring long-term flexing in industrial environments ranging from 0–70°C, and is resistant to drag and oil contamination, ensuring zero Modbus/CANopen signal loss. The cable utilizes a highly flexible 8-core twisted pair cable with an aluminum foil shield, achieving 100 Ω impedance and meeting CAT5e standards. The RJ45 terminals are gold-plated, 3 μm in diameter, and have a plug-and-play life of over 1,000 cycles. Plug-and-play operation eliminates the need for on-site stripping and crimping, reducing wiring time by over 50%. The orange jacket is easily identifiable, reducing the risk of accidental disconnection during maintenance.

2. Core Features:

1. Basic Parameters
Model: VW3A1104R30
Category: Graphic Display Terminal Remote Connection Cable (RJ45-RJ45)
Length: 3 m (±0.1 m)
Connector: 8P8C RJ45 male connectors on both ends, gold-plated contacts ≥3 µm
Cable Specifications: CAT5e rated, 8-core twisted pair, aluminum foil and braid double shield, flame-retardant PVC jacket (orange)
Electrical Characteristics: Impedance 100 Ω ±15%, Rated Current 1 A/core, Operating Voltage 30 V AC/DC
Mechanical Characteristics: Bend Radius ≥ 30 mm, Insertion/Removal Life ≥ 1000 Cycles
Environmental Rating: Operating Temperature –20°C to +70°C; IP20 Protection; Oil and UV Resistant

2. Compatibility and Certifications
Applicable Drives/Systems:
– Altivar 12 / 212 / 312 / 32 / 61 / 71 / 320 / 340/630/930 Series Inverters
– Altistart 22 Soft Starter
– Lexium 32 Servo Drive
– TeSys T Motor Management System
Compatible Terminals: VW3A1101, VW3M1701, and other Graphic Display Terminals
Certifications: CE, UL 508, EAC, RoHS, REACH

3. Feature Highlights
Plug-and-Play: Double-ended shielded RJ45 connectors connect to remote panels without crimping, reducing field wiring time by 50%.
High-Speed ​​and Reliable: Shielding suppresses EMI, ensuring loss-free Modbus/CANopen or Ethernet communications.
Maintenance-Friendly: Orange sheath for easy identification and prevents accidental removal. 3m length covers the distance from most cabinets to doors.
Green Packaging: Made with ≥70% recycled cardboard, in line with Schneider's 2050 Net Zero Emissions commitment.
