Specifications
Brand Name :
Schneider Electric
Model Number :
ATV71HD45N4
Certification :
COO & COC
Place of Origin :
China
MOQ :
1 pc
Price :
$3000-$3900
Payment Terms :
T/T,paypal,alipay
Supply Ability :
99+
Delivery Time :
3-5 days
Packaging Details :
Brand new and original
Shipping Weight :
38 KG
Packing Size :
77.5 x 80.4 x 60.4 cm
Condition :
Brand new and original
Warranty :
One year
Trade Terms: :
EXW, DAP, FOB, CIF
Express Delivery :
DHL, FedEx, UPS
Description

Schneider Electric ATV71HD45N4 Variable Speed Drive ATV71 45kW 60HP 480V with EMC filter

Product Description
The Schneider Electric ATV71HD45N4 is a high-performance 45 kW (60 HP) three-phase variable-frequency drive from the Altivar 71 family, designed for demanding applications requiring high torque at low speed and precise dynamic response. With sensorless vector control and closed-loop vector capability, it delivers 200 % break-away torque at 0.5 Hz, making it ideal for cranes, hoists, winding machines, extruders and centrifugal pumps.

Key Specifications
• Part No.: ATV71HD45N4
• Power: 45 kW / 60 HP @ 400 V
• Output Current: 86 A (CT) / 104 A (VT)
• Input: 380–480 V ±10 %, 50/60 Hz, 3-phase
• Control: V/f, Sensorless vector, Closed-loop vector, Servo
• Braking: Built-in brake chopper 100 % duty cycle
• EMC: Integrated C3 filter (optional C2)
• I/O: 8 DI, 2 AI, 2 AO, 2 relay outputs, 1 encoder card slot
• Communication: Modbus, CANopen; PROFIBUS, EtherNet/IP, DeviceNet via option cards
• Protection: IP20, UL Type 1 kit available, overload 150 % for 60 s
• Certifications: CE, UL, CSA, RoHS, marine approvals

Typical Applications
• Overhead cranes & gantry systems
• Plastic extruders & film lines
• High-speed textile winders
• Centrifugal compressors & pumps
• Machine-tool spindles & feed drives

Benefits
• Space-saving: Book-style footprint, side-by-side mounting
• Energy-efficient: Automatic torque optimization and sleep/wake functions
• Maintenance-friendly: Removable fan, front-access terminals
• Safety: Safe Torque Off (STO) SIL 3/PLe built-in; ATEX zone 2 version optional

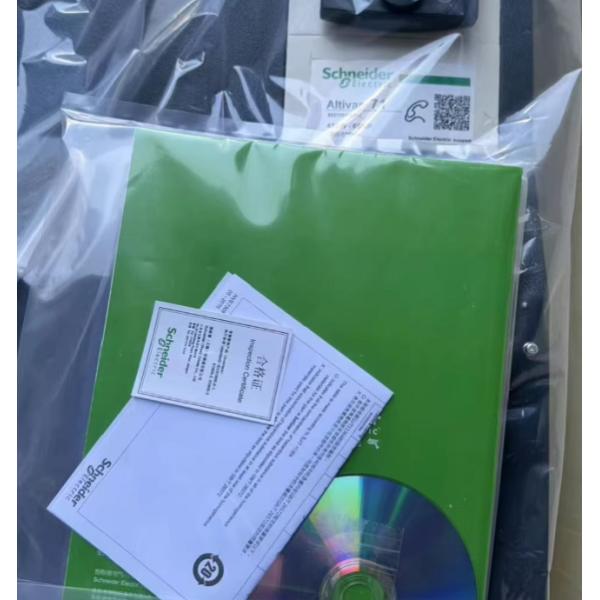

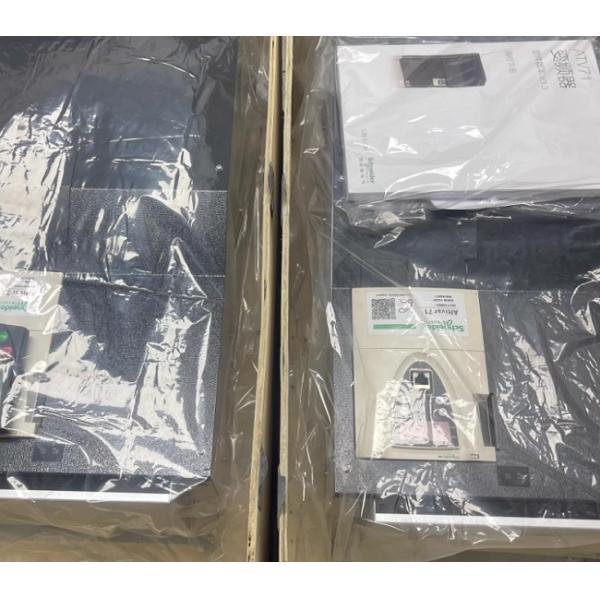

Product details pictures

Schneider Electric ATV71HD45N4 Variable Speed Drive ATV71 45kW 60HP 480V With EMC Filter

Schneider Electric ATV71HD45N4 Variable Speed Drive ATV71 45kW 60HP 480V With EMC Filter

Schneider Electric ATV71HD45N4 Variable Speed Drive ATV71 45kW 60HP 480V With EMC Filter

Related products

ATV71HU15N4 1.5 kW 3.7 A ATV71HU22N4 2.2 kW 5.5 A
ATV71HU30N4 3 kW 7.1 A ATV71HU40N4 4 kW 9.5 A
ATV71HU55N4 5.5 kW 11.9 A ATV71HU75N4 7.5 kW 15.9 A
ATV71HD11N4 11 kW 22.5 A ATV71HD15N4 15 kW 30.5 A
ATV71HD18N4 18.5 kW 37.2 A ATV71HD22N4 22 kW 43.5 A
ATV71HD30N4 30 kW 57.5 A ATV71HD37N4 37 kW 69 A
ATV71HD45N4 45 kW 86 A ATV71HD55N4 55 kW 104 A
ATV71HD75N4 75 kW 141 A ATV71HD90N4 90 kW 176 A
ATV71HC11N4 110 kW 211 A ATV71HC13N4 132 kW 250 A
ATV71HC16N4 160 kW 302 A ATV71HC20N4 200 kW 390 A
