Bently Nevada 3300/03-02-00 System Monitor 220VAC Redundant Power Supply Version

Product Overview
The Bently Nevada 3300/03-02-00 is the standard model in the GE Bently Nevada 3300 series rack-mount system monitor. Mounted in a 19-inch rack, it features integrated power, communication, and display interfaces. It can simultaneously manage up to 16 monitoring modules (e.g., vibration, temperature, speed, displacement), providing 24/7 continuous protection and diagnostics for critical equipment such as steam turbines, gas turbines, large-capacity compressors, and generators. The suffix "-02-00" designates a 220 V AC redundant power supply, no special coatings, and no additional certifications. It is compatible worldwide and offers strong field interchangeability.

Core Functions
• Comprehensive Monitoring: Supports the full range of 3500/3300 monitoring cards, allowing for a mix of vibration, temperature, speed, and relay modules within a single chassis.
• Dual redundant power supplies: 220 V AC/DC auto-sensing, hot-swappable, power failure switchover in <5 ms, MTBF >250,000 h
• High-speed Communications: Front RS-232/485 and rear Ethernet ports support Modbus RTU/TCP and OPC UA, enabling seamless integration into DCS/SCADA systems.
• Real-time Display: 6-line LCD (128×64) displays channel status, alarm values, bar graphs, and trend charts in a cyclic manner, with 6-key front panel for quick navigation.
• Event Log: 2 MB non-volatile memory stores up to 1,000 alarm/fault/operation logs with 1 ms timestamp accuracy.
• Self-Diagnostics: Continuously monitors power supply, fuse, fan, and backplane temperatures, instantly sending fault information to System 1 software.
• Online Configuration: Configurable via Bently Nevada System 1 or Rack Configuration Software for remote/offline configuration of channel parameters, alarm logic, and relay mapping.
• Standard 6U rack: 483 mm × 267 mm × 44 mm (1E), supports mixed 3U/6U installation, saving control cabinet space.

Technical Specifications
Power Supply: 220 V AC ±10%, 47–63 Hz; or 220 V DC ±20%
Power Consumption: Fully loaded with 16 modules + LCD fan ≤75 W
Operating Temperature: 0°C to +65°C; Storage: –40°C to +85°C
Relative Humidity: 5–95% non-condensing
Vibration: 4 g, 5–500 Hz; Shock: 30 g, 11 ms
EMC: IEC 61000-6-2 / 61000-6-4 Industrial Grade
Protection Rating: IP20 (when installed inside a rack)
Weight: Approx. 3.2 kg kg (empty rack)

Backplane Slots
• 2 system interface slots (power + communication)
• 14 monitoring module slots (compatible with 3300/16, 3300/20, 3300/50, etc.)
• 2 relay module slots (optional 4 sets of SPDT contacts)

Typical Applications
• Integrated vibration, displacement, and key phase protection for steam turbines in refinery hydrocracking units
• Centralized monitoring of speed, shaft temperature, and casing vibration for large BOG compressors at LNG receiving terminals
• Zero speed, overspeed, and bearing temperature interlocks for offshore FPSO gas turbines
• Comprehensive diagnosis of vibration, differential expansion, and axial displacement for feedwater pump turbines in coal-fired power plants

Ordering Information
Complete Model: 3300/03-02-00
Optional Upgrade: 3300/03-02-01 (110 V AC redundant power supply)
3300/03-02-02 (24 V DC Redundant Power Supply)
If explosion-proof coating, marine certification, or extended relays are required, please specify a custom suffix "-xx-xx" in your order.

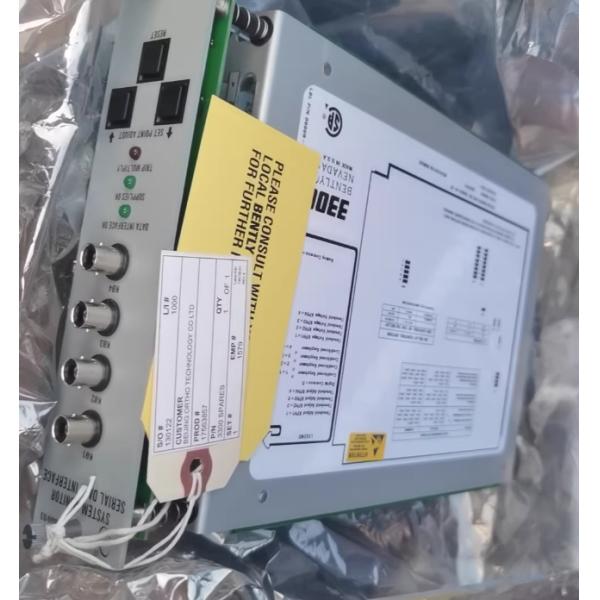

Product Images
