E54MA7.5C Mitsubishi Original Trigger Firing Board for FR-E540-7.5K VFD Inverter Gate Drive PCB Replacement Part
E54MA7.5C Mitsubishi Original Trigger Firing Board for FR-E540-7.5K VFD Inverter Gate Drive PCB Replacement Part
E54MA7.5C Mitsubishi Original Trigger Firing Board for FR-E540-7.5K VFD Inverter Gate Drive PCB Replacement Part
E54MA7.5C Mitsubishi Original Trigger Firing Board for FR-E540-7.5K VFD Inverter Gate Drive PCB Replacement Part
E54MA7.5C Mitsubishi Original Trigger Firing Board for FR-E540-7.5K VFD Inverter Gate Drive PCB Replacement Part
E54MA7.5C Mitsubishi Original Trigger Firing Board for FR-E540-7.5K VFD Inverter Gate Drive PCB Replacement Part
Specifications
Model Number :
E54MA7.5C
MOQ :
1
Delivery Time :
3-5 days
Express Delivery :
DHL, FedEx, UPS
Price :
$10
Shipping Weight :
0.95 kg
Certification :
COO & COC
Payment Terms :
T/T,Alipay,Paypal
Condition :
Brand new and original
Warranty :
1 year
Trade Terms: :
EXW, DAP, FOB, CIF
Supply Ability :
99+
Packing Size :
265 × 185 × 40 mm
Brand Name :
Mitsubishi
Packaging Details :
Brand new and original
Place of Origin :
Japan
Description

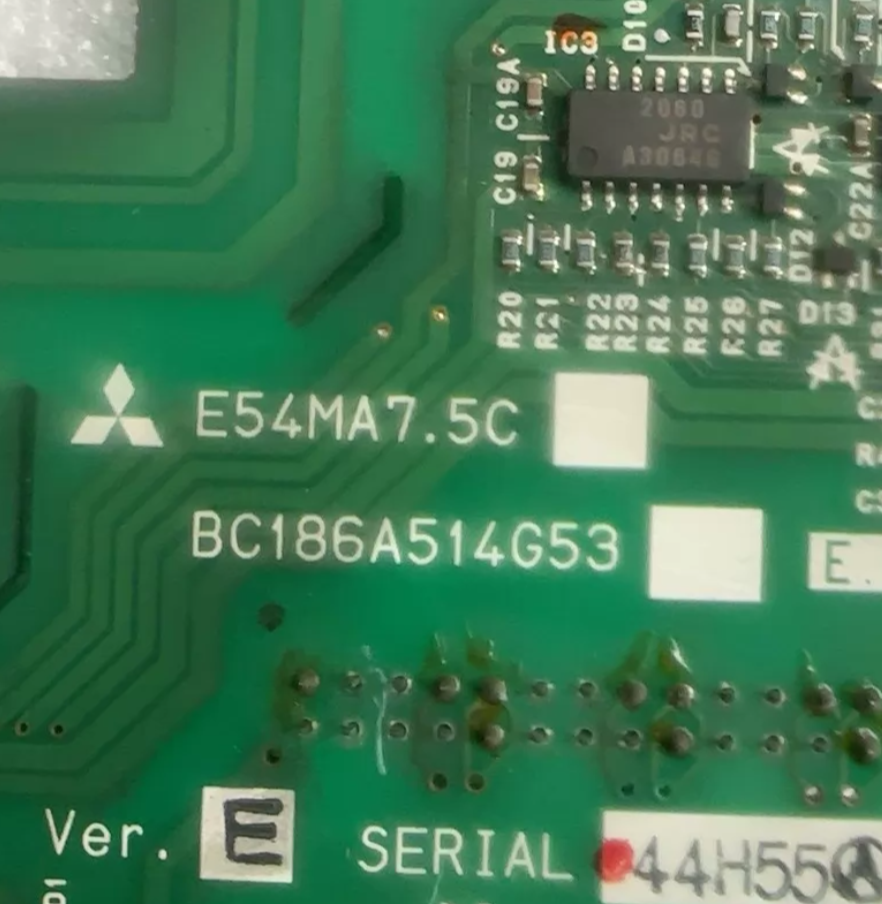

E54MA7.5C Mitsubishi Original Trigger Firing Board for FR-E540-7.5K VFD Inverter Gate Drive PCB Replacement Part

The Mitsubishi E54MA7.5C is an original trigger board (firing / gate drive control PCB) manufactured as a factory service spare for the Mitsubishi FR-E540-7.5K three-phase 380 V variable frequency drive. Positioned between the main control card and the IGBT power module, this board converts PWM logic signals into precise gate-level firing pulses, executes dead-time management, current and DC-bus voltage sensing, and hardware-level overcurrent and short-circuit protection tripping.
Built with industrial-grade gate drive optocouplers, reinforced creepage and clearance isolation barriers, precision analog sensing circuits, and ESD-hardened signal inputs, the E54MA7.5C delivers accurate IGBT switching timing, reliable desaturation detection, and consistent fault-trip response under continuous heavy-duty industrial operation. Factory-matched plug-in connectors and standardized screw-fixing holes enable direct drop-in replacement into the corresponding FR-E540 inverter frame without wiring modification or mechanical adaptation.
Installing a genuine Mitsubishi E54MA7.5C eliminates common drive failures including E.OC1/E.OC2/E.OC3 overcurrent fault trips, output phase imbalance, unstable motor torque, intermittent shutdown, and gate drive signal loss caused by degraded semiconductor components. Every board is functionally verified for PWM waveform integrity, dielectric isolation withstand, and protection trip accuracy prior to shipment, guaranteeing immediate plug-and-play restoration and extended inverter service life.


Product Overview: Mitsubishi E54MA7.5C


Parameter Specification
Brand Mitsubishi Electric
Part Number E54MA7.5C
Product Type Trigger Board / Firing Gate Drive Control PCB
Application Mitsubishi FR-E540-7.5K VFD Inverter (3-Phase 380 V, 7.5 kW)
