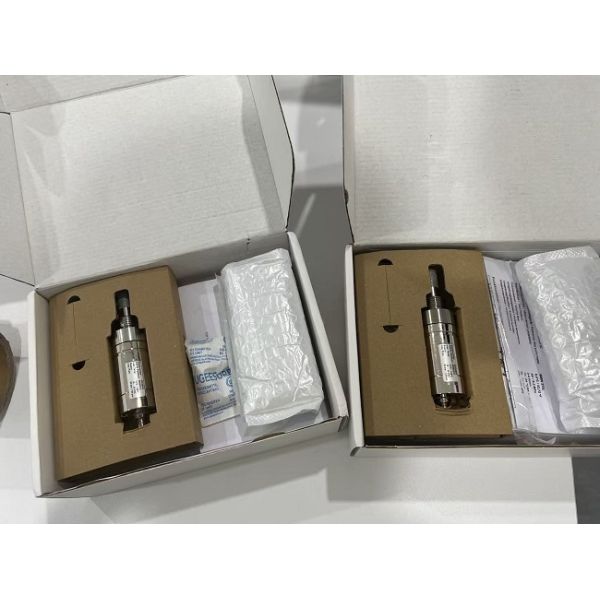

FA510 0699.0512-0001 CS INSTRUMENTS Sensor Dew Point FA510 -20 +50 deg 6990512

Product Details

Model: FA510
Order Number: 0699.0512-0001 (Standard Type)
Function: Simultaneous online measurement of dew point (Td), flow rate (Q), and pressure (P)
Principle: Polymer humidity capacitor + thermal mass flow chip + piezoresistive pressure sensor
Measurement range
Dew point: -80... +20 °C Td
Traffic: 0.3... 185 Nm/s (can be scaled on-site)
Pressure: 0... 1.6 MPa (0...) 16 bar
Output: 3 channels, 4... 20 mA + Modbus RTU (RS-485)
Accuracy: Dew point ±2 °C Td, flow rate ± 1.5% reading, pressure ± 0.25%
Process connection: G ½" external thread, stainless steel 1.4404 (316L)
Power supply: 18... 30 V DC / < 0.5 W
Cable: M12 4-pin A-coded (straight out 2m, customizable)
Protection: IP65 (probe)/IP67 (meter head conversion box)
Certifications: CE, RoHS, optional ATEX Ex ia II C T4 Ga

Core features

Three-in-one integration - One probe simultaneously outputs Td+Q+P, saving 2 installation holes and 50% wiring.
-80 °C low dew point - suitable for deep drying monitoring at the outlet of adsorption dryers and oxygen generators in nitrogen generators.
Thermal mass flow rate - No temperature and pressure compensation required, directly output Nm³/h, energy-saving audit data available immediately.
Modbus RTU - adjustable from 9600 to 115200 bps, supports 247 station numbers, and seamlessly integrates with PLC/SCADA.
Plug and play - Stable for 3 minutes after power-on at 24V. On-site zero point/range can be calibrated by pressing keys without the need for a computer.
Globally applicable -- 30... Operating at +70 °C, anti-condensation, meeting the ISO 8573-1 Class 2/3/4 requirements for compressed air.

Typical application

Dew point monitoring at the outlet of the dryer in the compressed air station
Nitrogen generator and oxygen generator deep drying -70 °C Td alarm
The flow rate and dew point in the automotive painting workshop are interlocked to prevent water stains
High-pressure air flow measurement for injection molding machines, energy-saving assessment
Dew point trend recording for air dryers used in petrochemical instruments
Food blow molding PET drying dew point 2 °C Td control

System connection (purchased separately)

Power/Signal: M12 4-pin female connector, 0-20mA / 4-20mA active output
RS-485: M12 5-pin A-coded, Modbus RTU twisted shield
Ball valve: GBV-C32 stainless steel ball valve, installed/disassembled under pressure online
Handheld device: DP 500/510 can be compared and calibrated on-site
Software: CS Soft Basic (free)/CS Data Logger (Data Logging)
