7IF321.7 B&R 2003 Series RS485/RS422 Interface Module
7IF321.7 B&R 2003 Series RS485/RS422 Interface Module
7IF321.7 B&R 2003 Series RS485/RS422 Interface Module
7IF321.7 B&R 2003 Series RS485/RS422 Interface Module
7IF321.7 B&R 2003 Series RS485/RS422 Interface Module
7IF321.7 B&R 2003 Series RS485/RS422 Interface Module
7IF321.7 B&R 2003 Series RS485/RS422 Interface Module
7IF321.7 B&R 2003 Series RS485/RS422 Interface Module
7IF321.7 B&R 2003 Series RS485/RS422 Interface Module
7IF321.7 B&R 2003 Series RS485/RS422 Interface Module
Specifications
Trade Terms :
EXW, DAP, FOB, CIF
Model Number :
5S3AB0501000L0-000
Shipping Weight :
0.15 kg
MOQ :
1
Delivery Time :
3-5 days
Payment Terms :
T/T,Alipay,Paypal
Customer Courier A/C :
Yes – DHL/FedEx/UPS account accepted
Brand Name :
B&R
Packaging Details :
Brand new and original
Packing Size :
180 mm × 100 mm × 50 mm
Place of Origin :
Austria
Shipping :
DHL (default) / FedEx / UPS / TNT / Air / Sea
Price :
$174
Supply Ability :
99+
Condition :
Brand new and original
Certification :
COO & COC
Description

Product pictures

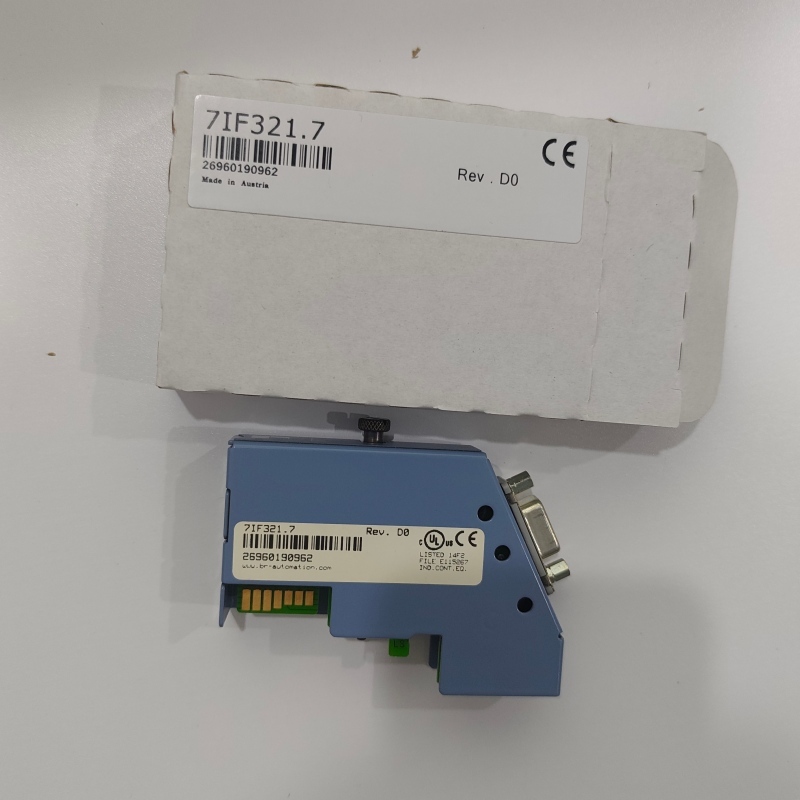

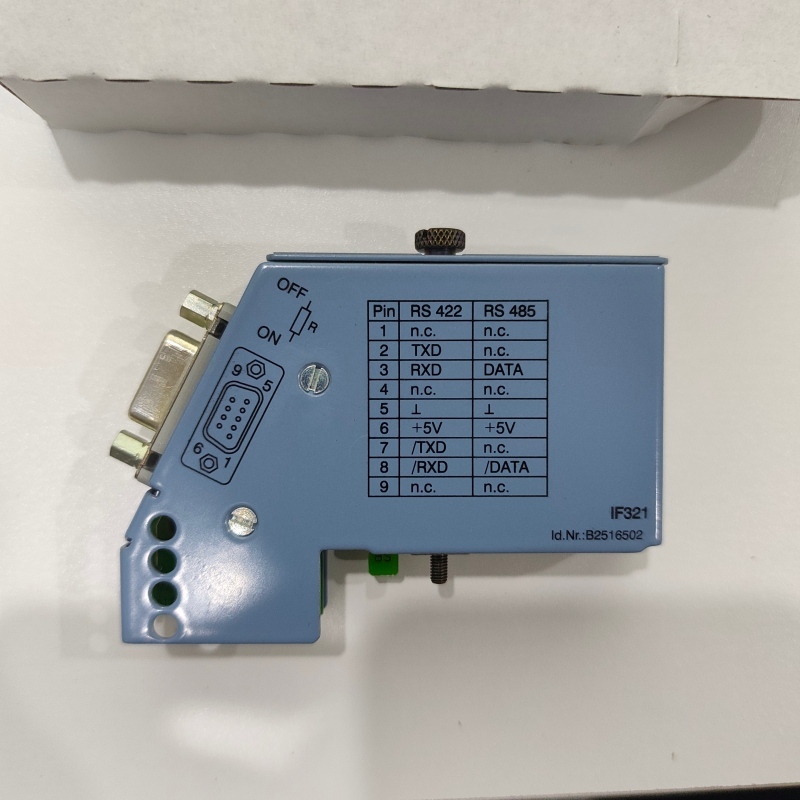

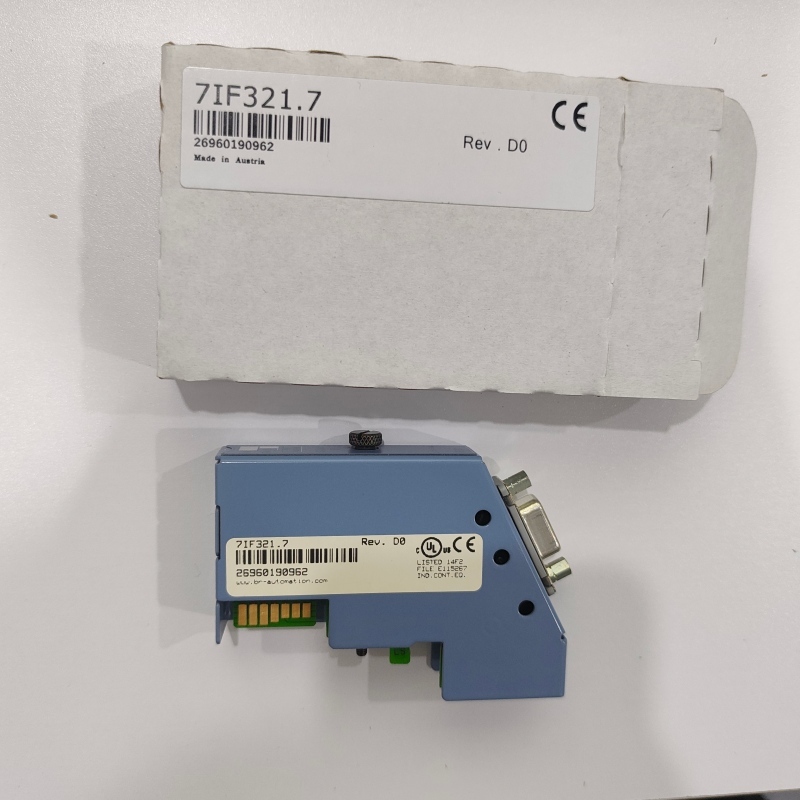

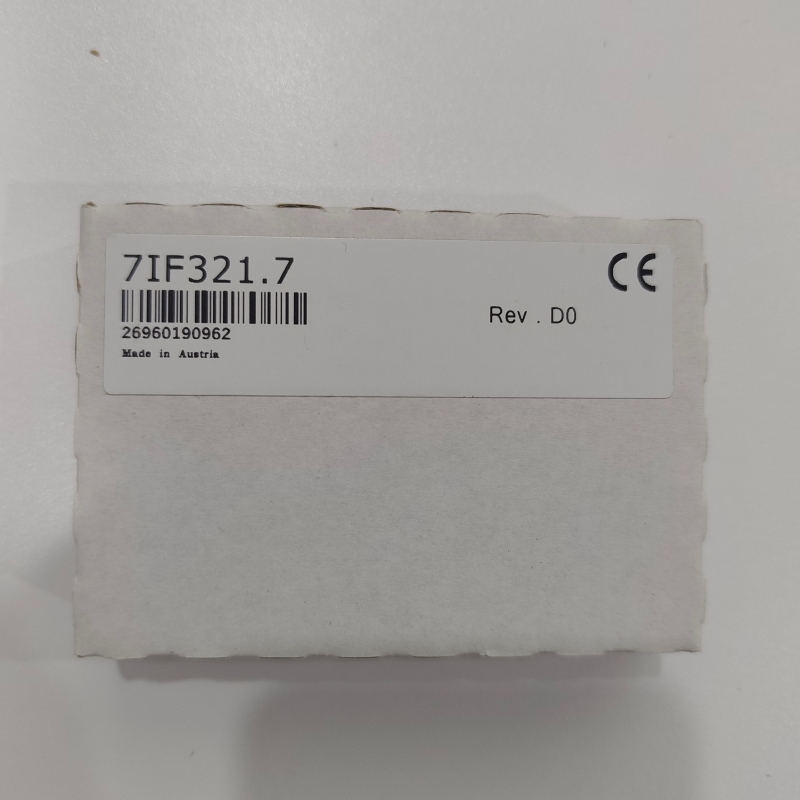

7IF321.7 B&R 2003 Series RS485/RS422 Interface Module

Product Overview: B&R 7IF321.7

Parameter Specification
Manufacturer B&R Industrial Automation
Model 7IF321.7
Product Series 2003 Series PLC System
Device Type Serial communication interface module
Interface Type 1× RS485 / RS422 serial port

Application & Fault Scenarios

Typical Uses: Adds RS485/RS422 serial communication capability to B&R 2003 Series PLC systems. Connects to serial devices such as barcode scanners, weighing scales, temperature controllers, and third-party PLCs for data exchange. Software-configurable between RS485 and RS422 modes.
Common Field Issues:
  • No communication established → verify RS485/RS422 wiring polarity (A/B or TX+/TX-); confirm baud rate, parity, and stop bit settings match the connected device; check if termination resistor is required for long cable runs.
  • Intermittent data errors → check for ground loop issues; verify cable shielding is properly grounded at one end only; ensure RS485 bus does not exceed maximum node count (typically 32 devices without repeater).
Note: The 7IF321.7 is part of B&R's 2003 Series modular PLC family. It requires a compatible 2003 Series backplane (e.g., 7BP701.0, 7BP702.0) for installation. Configuration is done via B&R Automation Studio software.

Related products

7IF311.7 7IF361.70-1
7AI351.70 7AI354.70
7AO352.70 7AM351.70
7DM435.7 7DM438.72
7BP701.0 7BP702.0
7AF101.7 7AF104.7
7NC161.7 7CM211.7
X20CP3684 X20CP1684
3IF060.6 3IF613.9
8BAC0120.000-1 8BAC0122.000-1

FAQ

Q1: What is B&R 7IF321.7?
A: The 7IF321.7 is a serial communication interface module for B&R's 2003 Series PLC system. It provides one RS485/RS422 port for connecting to serial devices such as barcode readers, scales, and third-party controllers.
Q2: What communication protocols does 7IF321.7 support?
A: This B&R 2003 Series interface module supports both RS485 and RS422 serial communication protocols. The mode is software-configurable via B&R Automation Studio, allowing flexible integration with different serial devices.
Q3: What backplane does 7IF321.7 require?
A: The 7IF321.7 mounts on B&R 2003 Series backplanes (7BP7xx series), such as 7BP701.0 (1-slot), 7BP702.0 (2-slot), up to 7BP710.0 (10-slot). Verify your backplane model before ordering.
