1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability
1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability
1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability
1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability
1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability
1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability
1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability
1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability
1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability
1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability
Specifications
Insertion Loss :
0.90(Typ.); 1.20(Max)
Port :
1x2 or customized
Control Type :
Latching
Fiber Connector :
LC/UPC, LC/APC, SC/UPC etc.
Voltage :
5V
Brand Name :
Gezhi or OEM
Model Number :
Magneto type
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1 pieces
Price :
USD >= 1 pieces $60
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Day
Delivery Time :
7 Days
Packaging Details :
inner box,Carton
Wavelength :
1310 or 1550
Description

Product description

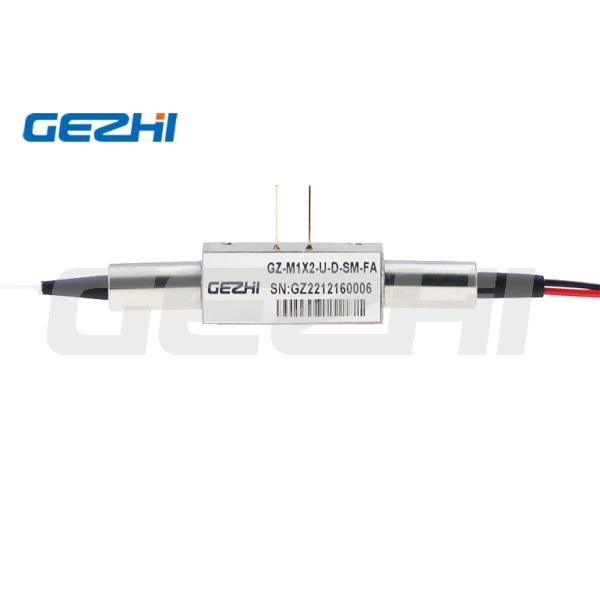

1x2 Single stage or Dual stage Magneto Optical Switch

GEZHI Magneto-optical switch uses faraday magneto-optical effect for optical switching. Capable of changing the external magnetic field, this kind of magneto optical switch uses Faraday rotation to change the polarization plane of incident polarized light, so as to switch the optical paths. Compared with the traditional mechanical optical switch, magneto optical switch has the advantages of fast switching speed and high stability. While compared with other non-mechanical optical switch, it also holds the advantages of low driving voltage and small crosstalk. Naturally, it is now gradually gaining widespread usage in fiber networks.

1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability

1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability

1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability

1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability

Feature

Low Insertion Loss

Fast Switching Time
High Stability & Reliability
Compact Size
Wide Wavelength Range
PRODUCT SPECIFICATIONS
Item
unit
Parameter
Wavelength
nm
1525 ~ 1565
Insertion Loss
dB
0.90(Typ.); 1.20(Max)
PDL
dB
0.10(Typ.), 0.20(Max)
Return Loss
dB
≥ 50
Crosstalk
dB
≥ 40
Repeatability
dB
+/- 0.02
Durability
Cycles
> 10 Billions
Switching Speed
μs
Regular (200); Ultra-fast (50)
Switching Type
n/a
Latching
Operating Temperature
°C
-5 ~ 70
Storage Temperature
°C
-40 ~ 85
Maximum Optical Power
mW
300
Dimension
mm
52 × 8.4× 8.4
Fiber Type
NA
SMF-28

Test Enviroment
1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability
1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability
1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability
1x2 Magneto Optical Switch with Fast Switching Speed Low Driving Voltage and High Stability
NO-dust workshop
High Temp. Ageing & High-Low Temperature cycling
Relay Reliable Testing
100% Testing Before Shipment

FAQ
Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
