SC APC Connector 1610nm 8 CH Coarse WDM Mux Demux Module
SC APC Connector 1610nm 8 CH Coarse WDM Mux Demux Module
SC APC Connector 1610nm 8 CH Coarse WDM Mux Demux Module
SC APC Connector 1610nm 8 CH Coarse WDM Mux Demux Module
SC APC Connector 1610nm 8 CH Coarse WDM Mux Demux Module
SC APC Connector 1610nm 8 CH Coarse WDM Mux Demux Module
SC APC Connector 1610nm 8 CH Coarse WDM Mux Demux Module
SC APC Connector 1610nm 8 CH Coarse WDM Mux Demux Module
Specifications
Brand Name :
GEZHI or OEM
Model Number :
8CH-CWDM
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000Channel per month
Delivery Time :
5-8 work days
Packaging Details :
Paper box
Product Name :
Coarse WDM
Wavelength :
1470~1610+1310nm
Channel Number :
8CH
Line Type :
Mux
Connector :
SC/APC
Application :
CATV Network
Description

8 CH Coarse WDM Mux Demux Module 1470~1610 + wide band 1310nm

GEZHI's 8 CH Coarse WDM Mux Demux Module 1470~1610 + wide 1310nm is ABS module with SC/APC pigtailed. This 8 CH Coarse WDM Mux Demux Module 1470~1610 + wide 1310nm can solve the shortage of fiber and transparent transmission of business, and reduce the cost of network building. With low-cost, low power consumption and small compact, it is widely used in access layer and metro aggregation to do transmission on a short time.

The 8 CH Coarse WDM Mux Demux Module 1470~1610 + wide 1310nm for Short-haul Transmission. It's protocol and rate transparent supporting such applications as SDH/SONET, 1G/10G Ethernet and 8/4/2/1G Fiber Channel across the same fiber link.

Features

Ultra low insertion loss

Wide pass band
High stability and reliability

high channel isolation

Protocal and rate transparent for applications up to 10Gbps
Completely passive, no power& no cooling required

Applications

WDM network
Fiber optical amplifier

Access Network

Line monitoring

Telecommunication

Cellular Application

Specification

Parameter 8CH Mux or Demux
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±6.5
Operating Wavelength (nm) 1470~1610nm + Wide 1310nm
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) <2.8dB
Isolation(dB) Adjacent Channel 30
Non-Adjacent Channel 45
PDL (dB) 0.2
PMD (ps) 0.1
Return Loss (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (℃) -20~+70
Storage Temperature (℃) -40～85
Connector SC/APC
BOX Package (mm) ABS box 100x80x10

Note: 1. Customization is available.

2. Specification maybe changed without notice.

8 CH Coarse WDM Mux Demux Module 1470~1610 + wide band 1310nm

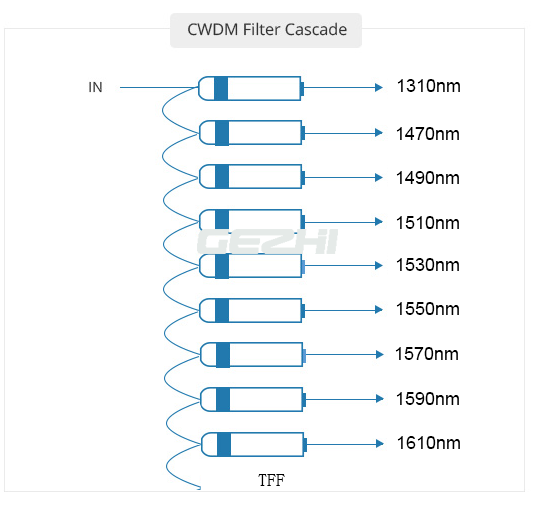

Filter cascading

SC APC Connector 1610nm 8 CH Coarse WDM Mux Demux Module

8 CH Coarse WDM Mux Demux Module 1470~1610 + wide band 1310nm

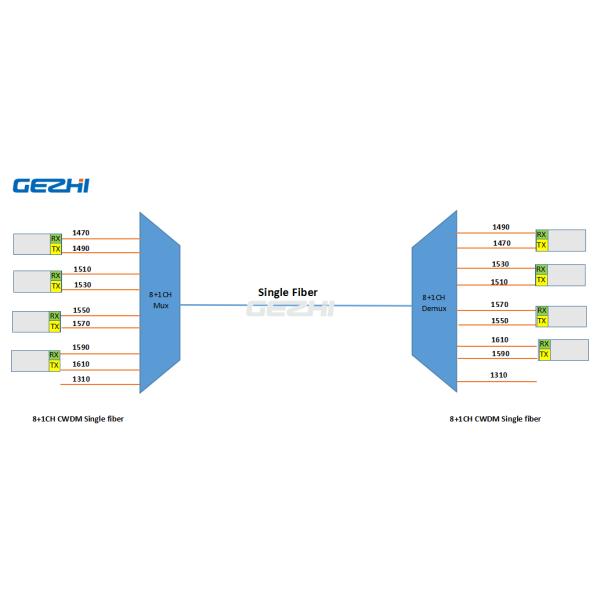

Single Fiber transmission

SC APC Connector 1610nm 8 CH Coarse WDM Mux Demux Module

8 CH Coarse WDM Mux Demux Module 1470~1610 + wide band 1310nm

Package

SC APC Connector 1610nm 8 CH Coarse WDM Mux Demux Module
