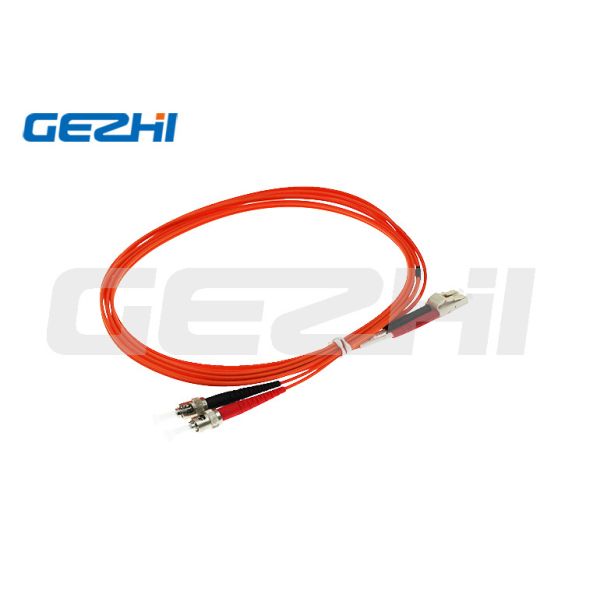

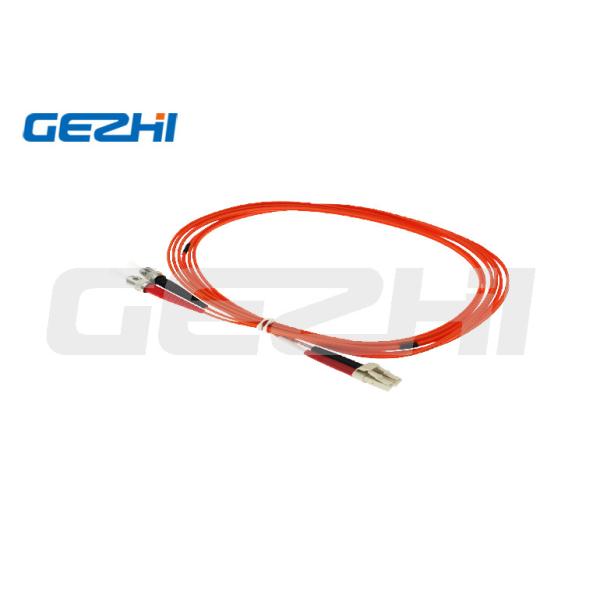

LC to ST Fiber Patch Cord with Low Insertion Loss High Return Loss for Telecom Systems 3 Years Warranty
LC to ST Fiber Patch Cord with Low Insertion Loss High Return Loss for Telecom Systems 3 Years Warranty
LC to ST Fiber Patch Cord with Low Insertion Loss High Return Loss for Telecom Systems 3 Years Warranty
LC to ST Fiber Patch Cord with Low Insertion Loss High Return Loss for Telecom Systems 3 Years Warranty
LC to ST Fiber Patch Cord with Low Insertion Loss High Return Loss for Telecom Systems 3 Years Warranty
LC to ST Fiber Patch Cord with Low Insertion Loss High Return Loss for Telecom Systems 3 Years Warranty
LC to ST Fiber Patch Cord with Low Insertion Loss High Return Loss for Telecom Systems 3 Years Warranty
LC to ST Fiber Patch Cord with Low Insertion Loss High Return Loss for Telecom Systems 3 Years Warranty
Specifications
Cable OD :
2.0mm or 3.0mm
Return Loss :
≥45 dB (SM)
Fiber Type :
Duplex
Fiber Length :
2m
Operating Temperature :
-40 ~ +80 ℃
Brand Name :
Gezhi/OEM
Model Number :
Fiber Optic Cable
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1 pieces
Price :
USD >= 1 pieces $0.98
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Day
Delivery Time :
7 Days
Packaging Details :
inner box,Carton
Insertion Loss :
≤ 0.20 dB
Description

Product description

LC to ST Fiber Patch Cord For Telecom System

Feature:

Kinds of Optional Connectors
Low Insertion Loss
High Return Loss
Good Repeatability and Interchangeability High Temperature Stability
Applications:
Optical Fiber Communication System
Optical Fiber Access Networks
Optical Fiber Test Instruments
Optical Sensors
LC to ST Fiber Patch Cord with Low Insertion Loss High Return Loss for Telecom Systems 3 Years Warranty
LC to ST Fiber Patch Cord with Low Insertion Loss High Return Loss for Telecom Systems 3 Years Warranty
LC to ST Fiber Patch Cord with Low Insertion Loss High Return Loss for Telecom Systems 3 Years Warranty
LC to ST Fiber Patch Cord with Low Insertion Loss High Return Loss for Telecom Systems 3 Years Warranty
PRODUCT SPECIFICATIONS
Connector Type
FC,SC,ST,LC,MT-RJ etc
Ferrule Type
PC
UPC
APC
Insertion Loss(dB)
≤ 0.20
≤ 0.20
≤ 0.30
Repeatability(dB)
≤ 0.10
Interchangeability(dB)
≤ 0.20
Return Loss(dB)(SM)
≥45
≥50
≥60
Fiber Type
Corning SMF-28,9/125um SM
Operating Temperature(℃)
-40 ~ +80
Storage Temperature(℃)
-40 ~ +85
Durability
> 1000 times
Industry Standard
Telcordia GR-326-CORE

Order Information
Fiber Optic Patch Cord
Connector Type
Ceramic Ferrule
End Face
Cable Diameter
(mm)
Simplex/Duplex
Single mode
/Multi-mode
Length
(M)
FC
PC/UPC/APC
Φ0.9, Φ2,Φ3
Simplex/Duplex
SM/MM
Customized
SC
PC/UPC/APC
Φ0.9, Φ2,Φ3
Simplex/Duplex
SM/MM
Customized
ST
PC/UPC
Φ0.9, Φ2,Φ3
Simplex/Duplex
SM/MM
Customized
LC
PC/UPC
Φ0.9, Φ2
Simplex/Duplex
SM/MM
Customized
MU
PC/UPC
Φ0.9, Φ2
Simplex/Duplex
SM/MM
Customized
MTRJ
PC/UPC
Φ0.9, Φ2
Duplex
SM/MM
Customized

Recommend Products
LC to ST Fiber Patch Cord with Low Insertion Loss High Return Loss for Telecom Systems 3 Years Warranty
LC to ST Fiber Patch Cord with Low Insertion Loss High Return Loss for Telecom Systems 3 Years Warranty
LC to ST Fiber Patch Cord with Low Insertion Loss High Return Loss for Telecom Systems 3 Years Warranty
1X8 PLC Splitter Single Mode
LC UPC MUX DEMUX ABS Module Dual Fiber 8 Channel CWDM
50GHZ ABS Box Flat top Gaussian Filter DWDM AAWG 96CH Mux Demux

FAQ
Q1:Can I have a sample order? What is your MOQ ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales
representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time?
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
