6+1CH CWDM MUX Module with ABS Box and SC/APC LC/APC Connector for FTTX Networks
6+1CH CWDM MUX Module with ABS Box and SC/APC LC/APC Connector for FTTX Networks
6+1CH CWDM MUX Module with ABS Box and SC/APC LC/APC Connector for FTTX Networks
6+1CH CWDM MUX Module with ABS Box and SC/APC LC/APC Connector for FTTX Networks
6+1CH CWDM MUX Module with ABS Box and SC/APC LC/APC Connector for FTTX Networks
6+1CH CWDM MUX Module with ABS Box and SC/APC LC/APC Connector for FTTX Networks
6+1CH CWDM MUX Module with ABS Box and SC/APC LC/APC Connector for FTTX Networks
6+1CH CWDM MUX Module with ABS Box and SC/APC LC/APC Connector for FTTX Networks
6+1CH CWDM MUX Module with ABS Box and SC/APC LC/APC Connector for FTTX Networks
6+1CH CWDM MUX Module with ABS Box and SC/APC LC/APC Connector for FTTX Networks
Specifications
Brand Name :
GEZHI or OEM
Model Number :
CWDM06M47ALP
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
US$30-US$78
Payment Terms :
T/T,Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Name :
6+1CH CWDM MUX
Package :
ABS Box
Connector :
SC/APC LC/APC
Fiber Type :
Single Fiber
Description
CWDM WDM Module 6+1CH CWDM MUX FTTX ABS Single Fiber SC/APC LC/APC Connector
This CWDM WDM Module features a 6+1 channel configuration with CWDM MUX functionality, designed for FTTX applications. The module utilizes ABS housing and supports single fiber connections with SC/APC and LC/APC connectors.
Applications
  • CWDM Systems
  • PON Networks
  • FTTX Deployments
  • Metro Ethernet
  • CATV Links
Key Features
  • Low Insertion Loss
  • Wide Pass Band
  • High Channel Isolation
  • High Stability and Reliability
  • Epoxy-free Optical Path
  • Optimized for Access Networks
1*N CWDM Mux/Demux Module Specifications
Parameters 1x2 1x4 1x8 1x16
Center Wavelength (nm) ITU, ITU+1
Passband (nm) ITU±6.5
Operating Wavelength (nm) 1460~1620 or 1260~1620
Channel Space (nm) 20
Fiber Type SMF-28e or customer specified
IL (dB) (P/A Grade) 0.7/1.0 1.4/1.7 2.0/2.5 2.5/3.0
Isolation (dB) Adjacent Channel: 30 Non-Adjacent Channel: 50
Ripple (dB) 0.3 0.4 0.5 0.5
PDL (dB) 0.2
PMD (ps) 0.1
RL (dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 500
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
BOX Package (mm) 100*80*10 140*115*18
LGX Package 1U, 2U
19'' Rack mount Package 1U
Compliance Standards
  • Telcordia GR-1209-CORE-2001
  • RoHS Compliant
  • Telcordia GR-1221-CORE-1999

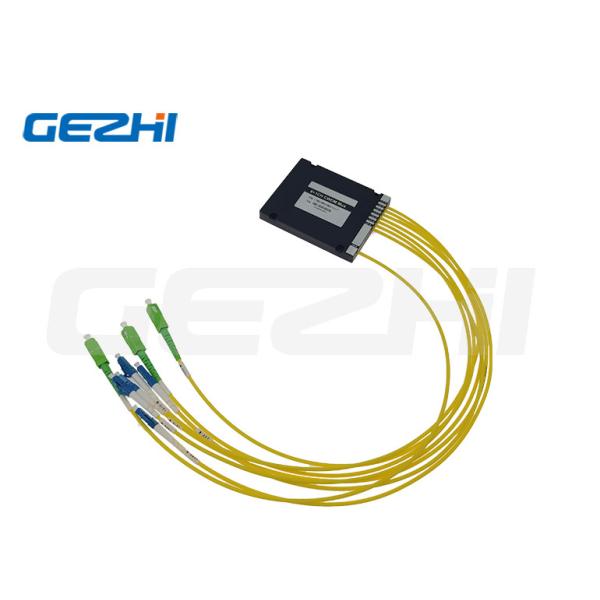

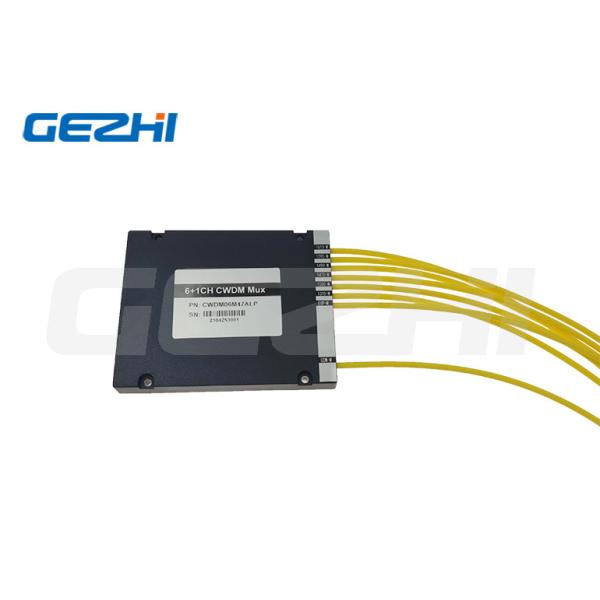

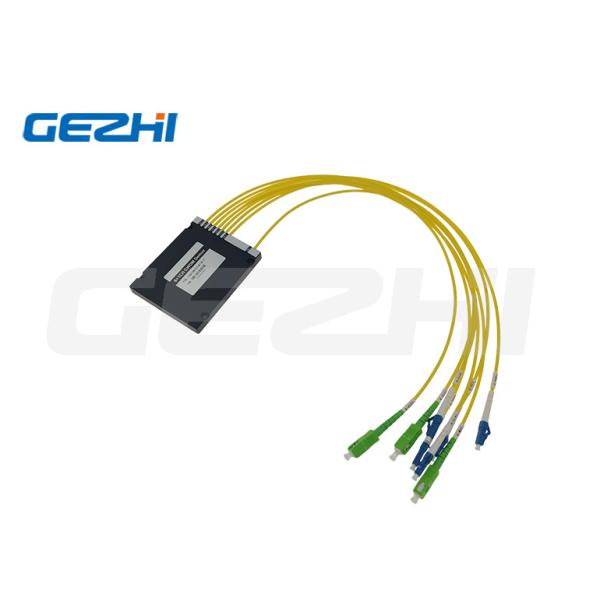

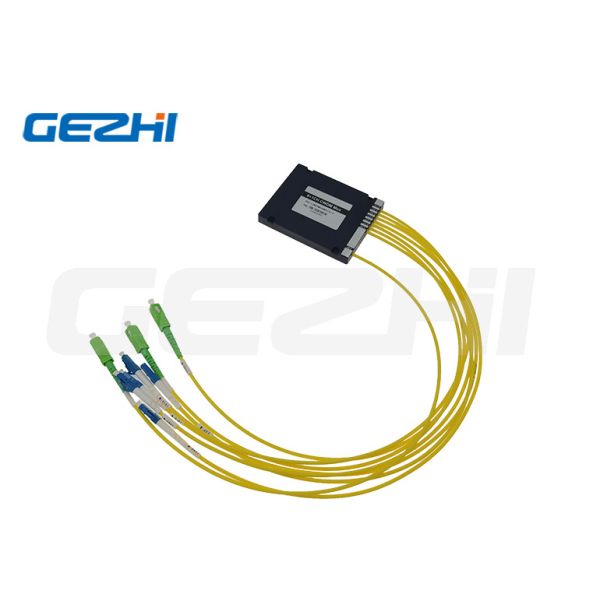

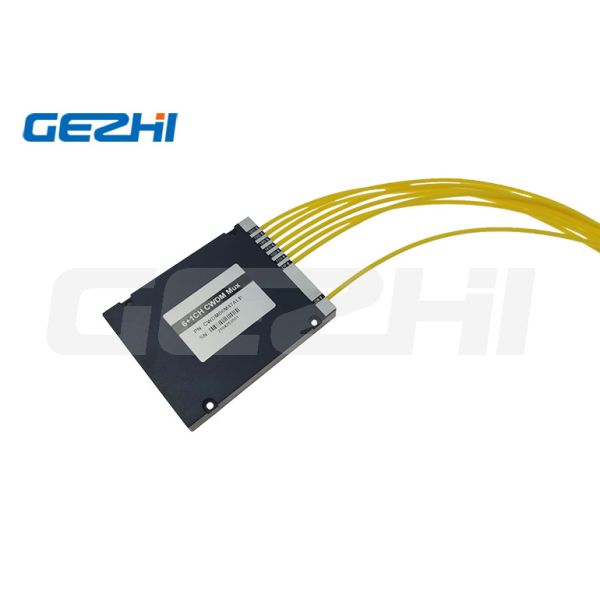

Product Images
6+1CH CWDM MUX Module with ABS Box and SC/APC LC/APC Connector for FTTX Networks 6+1CH CWDM MUX Module with ABS Box and SC/APC LC/APC Connector for FTTX Networks
Frequently Asked Questions
Q1: Can I place a sample order? What is your minimum order quantity?
A1: Sample orders are welcome for quality testing and verification. We do not have a minimum order quantity - single unit samples are available. Mixed samples are also acceptable.
Q2: What is your typical lead time?
A2: Standard lead time is approximately 1 week. For large quantities and specialized products, please consult with our sales representatives. We maintain stock for many products and can ship within 1-3 days after payment confirmation.
Q3: What payment methods do you accept?
A3: We accept T/T, PayPal, Western Union, cash payments, and AliPay.
Q4: What is your warranty period?
A4: We provide a 3-year warranty on all products.
Q5: Can I use my own logo, labeling, and packaging?
A5: Yes, we offer comprehensive OEM services. We can customize product labels, logos, part numbers, serial numbers, and packaging according to your specific requirements.
