1x16 plc fiber splitter description

PLC Splitter 1x16 with SC/APC Connectors PLC Splitter

Advanced development of integrated optics allows this planar optical splitter - PLC (Planar Lightwave Circuit) splitter - to combine an incredibly small size, the widest bandwidth covering the entire operating range, the best characteristics for this type of devices, as well as high reliability and stability of operation at any external conditions. Optical PLC splitters are designed to split one input signal into several output signals or combine several signals.

PLC splitters are made by depositing a waveguide layer (silicon dioxide) on a silicon substrate, then a ribbon fiber is welded to the resulting chip. Thereby to this technology, they can combine heat resistance, miniature size and a wide operating wavelength range.

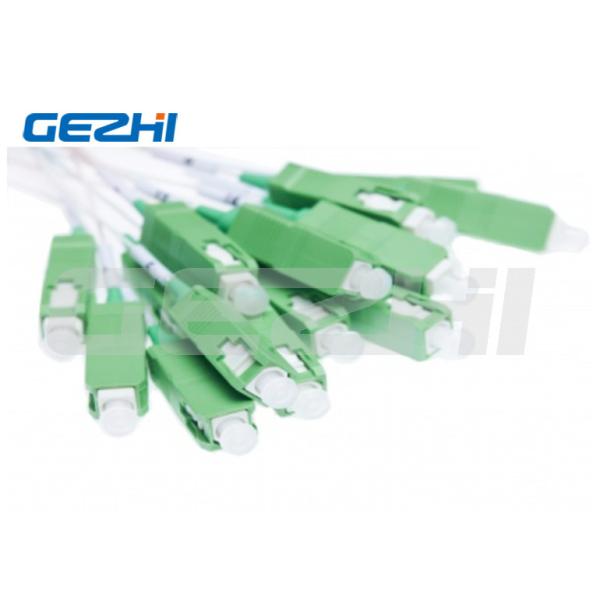

Planar PLC splitter PLC-116-A-SC/APC-9-SC/APC-15 type 1*16 has one input cable with SC/APC connector and sixteen output cables with SC/APC connectors as well.

The body of this PLC splitter is a metal tube. Tube size is 60*12*4 mm.

The PLC-116-A-SC/APC-9-SC/APC-15 splitter uses a cable with a diameter of 0.9 mm, a length of 1.5 m. Cable fiber is G657A, the cable sheath is made of LSZH material, characterized by low smoke emission in case of fire, and the absence of halogen toxic gases.

1x16 plc fiber splitter Feature

• Wide operating wavelength range 1260-1650 nm

• Low insertion loss

• Low back reflection

• Low PDL

• WDL value

• Low TDL

• High output signal uniformity

• High reliability

• Conform to Telcordia GR-1209 and GR-1221 recommendations

• Miniature size for use in small spaces

1x16 plc fiber splitter Application

• PON

• FTTx

• CATV

• Network monitoring

1x16 plc fiber splitter Specifications
