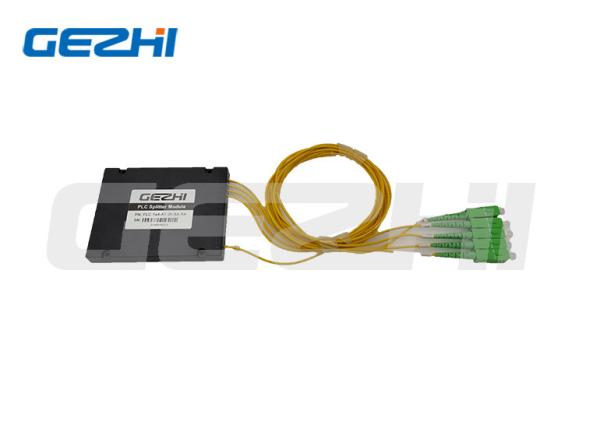

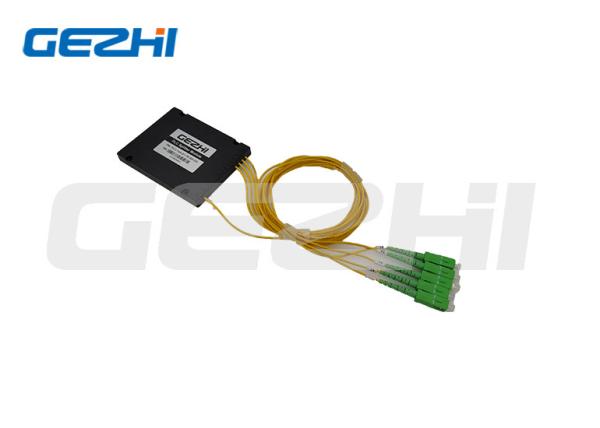

1x4 Passive Fiber Optic Splitter SC/APC ABS Module 1260 - 1650nm
1x4 Passive Fiber Optic Splitter SC/APC ABS Module 1260 - 1650nm
1x4 Passive Fiber Optic Splitter SC/APC ABS Module 1260 - 1650nm
1x4 Passive Fiber Optic Splitter SC/APC ABS Module 1260 - 1650nm
Specifications
Brand Name :
GEZHI or OEM
Model Number :
1x4 PLC Splitter Module
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
US$59-US$118
Payment Terms :
T/T, Western Union
Supply Ability :
100000Channel per month
Delivery Time :
5-8 work days
Packaging Details :
Paper box
Wavelength :
1260-1650nm
Port :
1x4
Connector :
LC/UPC, LC/APC, SC/UPC etc.
Package :
Stainless steel tube
Fiber Type :
G657A1
Application :
GEPON
Description

Specifications

Parameter
1xN PLC Splitter Specification
Operating Wavelength (nm)
1260 ~ 1650
Type
1x2
1x4
1x8
1x16
1x32
1x64
Insertion Loss (dB)
Typical
3.6
6.8
10.0
13.0
16.0
19.5
Max
3.8
7.1
10.3
13.5
16.5
20.5
Uniformity (dB)
Typical
0.4
0.5
0.5
1.0
1.0
2.5
Max
0.6
0.6
0.8
1.2
1.5
2.5
PDL(dB)Max
Typical
0.1
0.1
0.1
0.2
0.2
0.2
Max
0.15
0.15
0.25
0.3
0.3
0.3
Wavelength
department loss(dB)
Typical
0.1
0.1
0.1
0.3
0.4
0.7
Max
0.2
0.3
0.4
0.6
0.8
1.0
Temperature
department loss
Typical
0.3
0.3
0.3
0.4
0.4
0.4
Max
0.5
0.5
0.5
0.5
0.5
0.5
Directivity (dB) Min
55
Return Loss (dB) Min
55(50)
Operating Temperature (°C)
-40~ +85
Storage Temperature (°C)
-40 ~ +85
Fiber length
1m or Customized
Fiber Type
G657A
Connector Type
Customized
PLC Splitter Bare Fiber (mm)
4x4x40
4x4x40
4x4x40
4x7x50
4x7x50
4x12x60
PLC Splitter Blockless (mm)
4x4x40
4x7x60
4x7x60
4x12x60
6x20x80
6x40x100
PLC Splitter Module (mm)
100x80x10
100x80x10
100x80x10
120x80x18
120x80x18
141x115x18
PLC-splitter-rack-mountable(mm)
19’1U 2U Rack-Mount Box, LGX Box, ODF Box

Product overview

1x4 SC/APC PLC ABS Module Passive Optical Fiber 1260/1650 splitter

1x4PLC Splitter Module

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricated using silica optical
waveguide technology. It features small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting. Gezhi Photonics provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE-2001 and GR-1221-CORE-1999 requirements.

Product Features

Low Insertion loss

Low PDL

Compact Design

Good channel-to-channel uniformity

Wide Operating Wavelength: From 1260nm to 1650nm

Wide Operating Temperature: From -40℃ to 85℃

High Reliability and Stability

High Quality & Stability Material

1x4 Passive Fiber Optic Splitter SC/APC ABS Module 1260 - 1650nm 1x4 Passive Fiber Optic Splitter SC/APC ABS Module 1260 - 1650nm 1x4 Passive Fiber Optic Splitter SC/APC ABS Module 1260 - 1650nm

High Reliable & Stable quality
PLC Chip

G657A1 Fiber with min10mm bend radius allow tighter or bending

 zirconia ceramic ferrules
