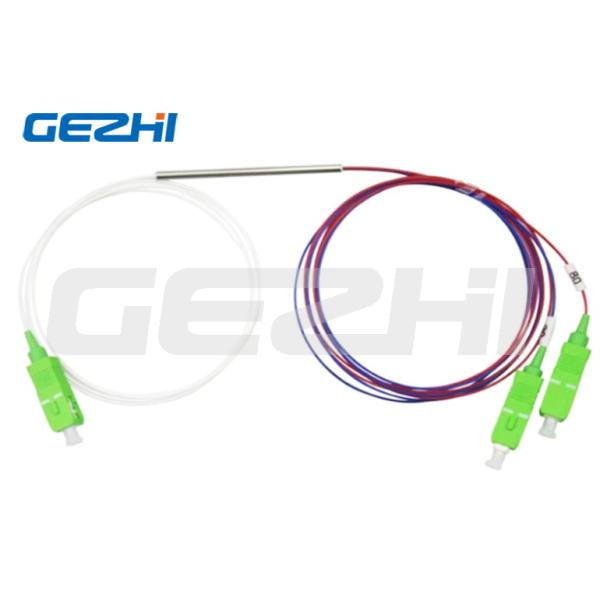

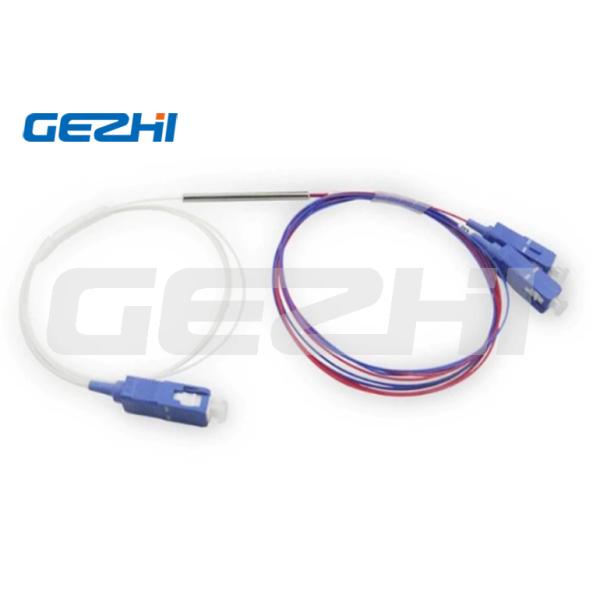

1x2 Configuration Fiber Optic Coupler with Low Insertion Loss and Wide Operating Temperature
1x2 Configuration Fiber Optic Coupler with Low Insertion Loss and Wide Operating Temperature
1x2 Configuration Fiber Optic Coupler with Low Insertion Loss and Wide Operating Temperature
1x2 Configuration Fiber Optic Coupler with Low Insertion Loss and Wide Operating Temperature
Specifications
PDL :
0.15db
Temperature :
-40~+85
Return Loss :
≥50dB
Fiber type :
SMF-28
Directivity :
55 dB
Brand Name :
Gezhi or OEM
Model Number :
1X2 FBT Coupler Splitter
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1 pieces
Price :
US$59-US$118
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Piece/Pieces per Day
Delivery Time :
7 Days
Packaging Details :
inner box,Carton
Package :
3x4513x54/3x60/90x20x10
Description

Splitting Ratio Fiber Optic 1x2 FBT Coupler Splitter product description

Splitting Ratio Fiber Optic 1x2 FBT Coupler Splitter

1.Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.

2. It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.

3.It provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE

4. It offers both tree and star type inline couplers/splitters with Rack mount box.

Splitting Ratio Fiber Optic 1x2 FBT Coupler Splitter specification

Configuration Unit 1x2or 2x2
Package Type SSC WBC DWC TWC
Operating
Wavelength		 nm 1310/1550 1310/1550 1310&1550 1310&1490&1550
Operating Bandwidth nm ±20 ±40 土40 1310&1550±40;1490±10

lnsertion

loss		 1/99

dB

 18.60~21.6/≤0.25 18.60-
21.6/≤0.25		 18.60-
21.6/≤0.25		 17.8-22.4≤0.35
2/98 15.75~18.45/≤0.3 15.75~18.45/≤0.3 15.75~18.45/≤0.3 15.00~19.20/≤0.4
3/97 14.1~16.5/≤0.35 14.1~16.5/≤0.
35		 14.1~16.5/≤0.35 13.6~17.05/≤0.45
5/95 12.05~14.15/≤0.4 12.05~14.15/≤0.4 12.05~14.15/≤0.4 11.55~14.65/≤0.5
10/90 9.20~11.2/≤0.75 9.20~11.2/≤0.
75		 9.20~11.2/≤0.75 8.8~11.41/≤0.8
20/80 9.5/1.0 9.5/1.0 9.5/1.0 10.0/1.2
25/75 ≤7.9/1.3 7.9/1.3 7.9/1.3 8.4/1.4
30/70 6.0/1.9 6.0/1.9 6.0/1.9 7.3/1.9
33/67 5.7/2.2 5.7/2.2 5.7/2.2 6.3/2.1
40/70 4.7/2.7 4.7/2.7 4.7/2.7 4.9/2.9
45/55 4.2/3.2 4.2/3.2 4.2/3.2 4.4/3.4
50/50 <3.6 <3.6 <3.6 <3.8
PDL dB 0.15
Return Loss dB ≥50
Directivity dB 55
Fiber type / SMF-28
Temperature ℃ -40~+85
Package mm 3x4513x54/3x60/90x20x10
Connector Type / As customized

1x2 Configuration Fiber Optic Coupler with Low Insertion Loss and Wide Operating Temperature

1x2 Configuration Fiber Optic Coupler with Low Insertion Loss and Wide Operating Temperature

Splitting Ratio Fiber Optic 1x2 FBT Coupler Splitter Feature

1. Low Insertion loss and PDL

2. Compact Design

3. Good channel-to-channel uniformity

4. Wide Operating Wavelength: From 1260nm to 1650nm

5. High Reliability and Stability

Splitting Ratio Fiber Optic 1x2 FBT Coupler Splitter Application

1. FTTX Systems

2. PON Networks

3. CATV

4. Optical Signal Distribution

FAQ

Q1:Can I have a sample order? What is your MOQ?
A1:Sample order is welcome to test and check quality. We don't MOQ, 1pcs sample is available. Also Mixed samples are acceptable.
Q2: What's the Lead time?
A2: The normal lead time is about 1week, For big quantity and special products. Please check lead time with our sales representative. But we keep stock for some products, could ship 1-3 days after receiving payment.
Q3: What are the payment terms?
A3: Payment term: T/T, Paypal, Western union,cash payment, ALI etc.
Q4: What is your warranty time
A4: 3 years' warranty.
Q5: Could I use our own logo, label and package?
A5: Yes, we could provide OEM service which according to your requirements, design products label, logo, PN, SN, package.
