16 Channels Passive DWDM Mux
16 Channels Passive DWDM Mux
Specifications
Brand Name :
GEZHI or OEM
Model Number :
16CH-DWDM-MD-1U
Certification :
CE RoHS ,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000Channel per month
Delivery Time :
5-8 work days
Packaging Details :
Paper box
Product Name :
Duplex 16CH DWDM
Wavelength :
C21 to C36
Channel Passband :
0.8nm (100Ghz)
Line Type :
Duplex Fiber
Features :
Thin-Film-Filter based
Application :
CATV Fiber Optic Links
Description

Duplex 16 Channels Optical DWDM Mux demux Splitter for Long Distance 40G Network

GEZHI’ Duplex 16 Channels Optical DWDM Mux demux Splitter for Long Distance 40G Network is a low loss, high density and standalone passive optical module. It is based on the thin film coating technology. The Duplex 16 Channels Optical DWDM Mux demux Splitter for Long Distance 40G Network offers an high channel isolation WDM solution for data centers and Metro access applications. The Duplex 16 Channels Optical DWDM Mux demux Splitter for Long Distance 40G Network packed a mux and demux into 19" 1U Rack Mount with LC/UPC adaptor. The operating wavelenght is C21~C36. The Duplex 16 Channels Optical DWDM Mux demux Splitter for Long Distance 40G Network is ideal for long-haul transport of fiber optic singals all over a dual fiber.

Features

Applications
  • Exceptionally Stable and Reliable
  • Low Polarization Dependent Loss
  • Epoxy-Free Optical Path
  • High Channel Isolation
  • Thin-Film-Filter based
  • Long Haul Networks
  • CATV Fiber Optic Links
  • Access / Enterprise Networks
  • Dense WDM Systems
  • Metro Networks

Specification

Parameter Unit 16 Channel Optical DWDM
Channel Number -- 16CH
Operation Wavelength nm C21~C36
Channel Central Wavelength nm ITU-T Grid @DWDM
Channel Passband nm 0.8 (100Ghz)
Insertion Loss @PB dB <4.8 or <3.5 with Skip
Isolation @Adjacent Channel dB >30
Isolation @Non-adjacent Channel dB >40
Isolation @Reflect Channel dB >15
Passband Ripple dB <0.5
Polarization Dependent Loss dB <0.15
Polarization Mode Dispersion ps <0.1
Directivity & Return Loss dB Directivity: >50 Return Loss:>45
Power Handling mW <500
Connector -- LC/UPC
Fiber Type -- SMF-28e or Customized
Operating Temperature ℃ -5 ~ +75
Storage Temperature ℃ -40 ~ +85
Package Dimension mm 19" 1U Rackmount

GEZHI's Duplex 16 Channels Optical DWDM Mux demux Splitter for Long Distance 40G Network offers high-capacity terminal DWDM solutions for network expansion. This Duplex 16 Channels Optical DWDM Mux demux Splitter for Long Distance 40G Network is used for long-haul transmission where wavelengths are packed tightly together over the C-band, up to 48 wavelengths in 100GHz grid (0.8nm). The Duplex 16 Channels Optical DWDM Mux demux Splitter for Long Distance 40G Network is protocol transparent and suited for applications including 10/1G Ethernet, SDH/SONET, 16/8/4/2/1G , CATV, Fibre Channel, FTTx, etc.

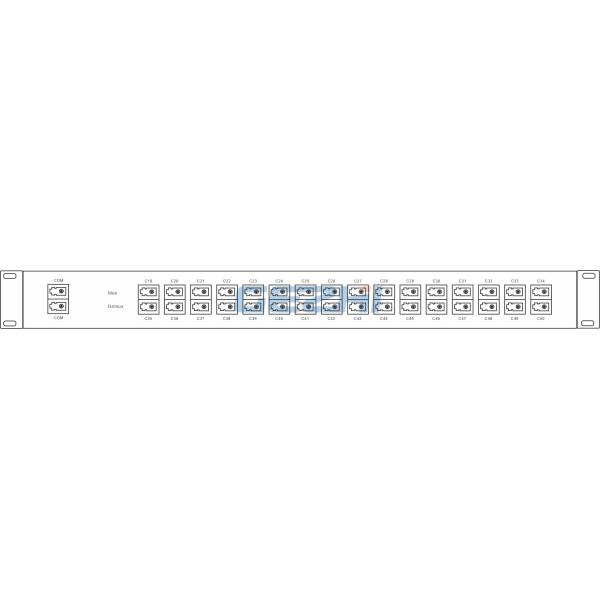

16 Channels Optical DWDM Mux Demux splitter 1U Frame

16 Channels Passive DWDM Mux

Duplex 16 Channels Optical DWDM Mux demux Splitter for Long Distance 40G Network

Dual Fiber DWDM

16 Channels Passive DWDM Mux
