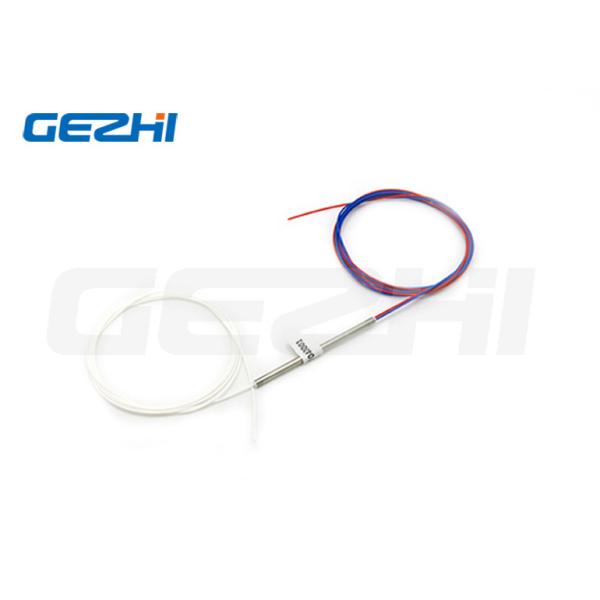

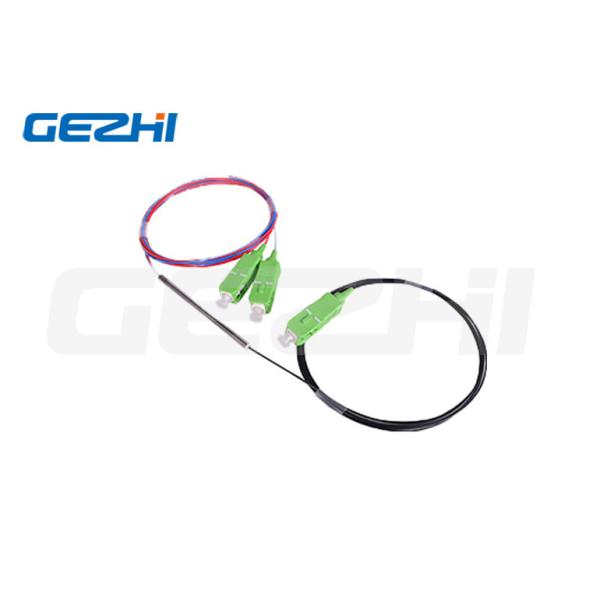

0.9mm Tube FBT Fiber Optic Splitter with Low Insertion Loss Wide Operating Wavelength and Compact Design
0.9mm Tube FBT Fiber Optic Splitter with Low Insertion Loss Wide Operating Wavelength and Compact Design
0.9mm Tube FBT Fiber Optic Splitter with Low Insertion Loss Wide Operating Wavelength and Compact Design
0.9mm Tube FBT Fiber Optic Splitter with Low Insertion Loss Wide Operating Wavelength and Compact Design
Specifications
Brand Name :
GEZHI or OEM
Model Number :
Steel Tube Type SM Fiber FBT Coupler
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
US$59-US$118
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Testing wavelength :
1310/1550nm
Description
0.9mm Tube FBT Fiber Optic Splitter Singlemode Multimode 1x2 1x3
Product Overview

GEZHI Photonics' FBT Singlemode coupler 1X2 2X2 offers very low insertion loss, low polarization dependence and excellent environmental stability. Accurate coupling ratio from 50/50 to 1/99 and fiber type 250um bare fiber, 3mm and 900um loose tube fiber are available with very tight uniformity. Singlemode standard coupler and wideband coupler components find extensive application to perform power splitting and monitoring functions in all kinds of optical communication.

Specifications
Single Standard Couplers
Grade P Grade A Grade
Coupling Ratio (%) 50/50 50/50
Excess Loss (Typical) (dB) 0.07 0.1
Maximum Insertion Loss (dB) 3.4 3.5
Polarization Sensitivity (dB) 0.15 0.2
Operating Wavelength (nm) 1310, 1480, 1550 or custom wavelength
Single Wideband Couplers
Grade P Grade A Grade
Coupling Ratio (%) 50/50 50/50
Excess Loss (Typical) (dB) 0.07 0.1
Maximum Insertion Loss (dB) 3.4 3.6
Polarization Sensitivity (dB) 0.15 0.2
Operating Wavelength (nm) 1310±40, 1550±40, or custom wavelength

Coupling Ratio: 1~50%
Directivity: ≥55 dB
Operating Temperature: -20°C to +80°C
Storage Temperature: -40°C to +85°C
Fiber Type: SMF-28
Fiber Pigtail Length: 1m
Port Configuration: 1×2 or 2×2

Coupling Ratio/Insertion Loss Conversion Chart
Coupling Ratio Insertion Loss Quality Level P Grade A Grade
40/60 4.4/2.5 4.6/2.8
30/70 5.6/1.8 6.0/2.0
20/80 7.4/1.1 7.7/1.3
10/90 10.8/0.6 11.6/0.8
5/95 14.2/0.4 14.6/0.5
2/98 18.5/0.2 19.0/0.3
1/99 21.0/0.2 21.5/0.3
Measured under the stable mode condition with LED light source.
Package Dimensions & Pigtail Style
Package Dimensions
Package Dimensions
Package D 3mm x 45mm stainless steel tube
Package E 3mm x 54mm stainless steel tube
Package F 3mm x 60mm stainless steel tube
Package G 10mm x 20mm x 90mm ABS cassette
Package H 10mm x 80mm x 100mm ABS cassette
Package I 18mm x 80mm x 120mm ABS cassette
Package J 18mm x 115mm x 140mm ABS cassette
Pigtail Style
Package Fiber Type
Package D, E 250um bare fiber
Package F 250um bare fiber or 900um loose tube
Package G, H, I, J 2mm, 3mm cable or 900um loose tube
Key Features
  • Low insertion loss
  • Low polarization dependent loss
  • High Return Loss Optional
  • Split Ratio 20/80, 40/60 (50/50 as default)
  • Compact for small application areas like in closure or splice trays
  • Wide Operating Temperature and Wavelength
  • Excellent Environmental & Mechanical Stability
Applications
  • FTTX (FTTP, FTTH, FTTN, FTTC)
  • Passive Optical Networks (PON)
  • Local Area Networks (LAN)
  • CATV Systems Amplifying
  • Monitoring System
