LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator Male to Female for Stable Signal Transmission
LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator Male to Female for Stable Signal Transmission
LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator Male to Female for Stable Signal Transmission
LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator Male to Female for Stable Signal Transmission
LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator Male to Female for Stable Signal Transmission
LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator Male to Female for Stable Signal Transmission
LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator Male to Female for Stable Signal Transmission
LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator Male to Female for Stable Signal Transmission
LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator Male to Female for Stable Signal Transmission
LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator Male to Female for Stable Signal Transmission
LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator Male to Female for Stable Signal Transmission
LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator Male to Female for Stable Signal Transmission
Specifications
Brand Name :
GEZHI or OEM
Model Number :
5dB LC/UPC Male to Female Singlemode Fiber Attenuator, Fixed Type
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
US$0.8/PCS-US$20/PCS
Payment Terms :
T/T,Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Fiber Connector :
LC/UPC

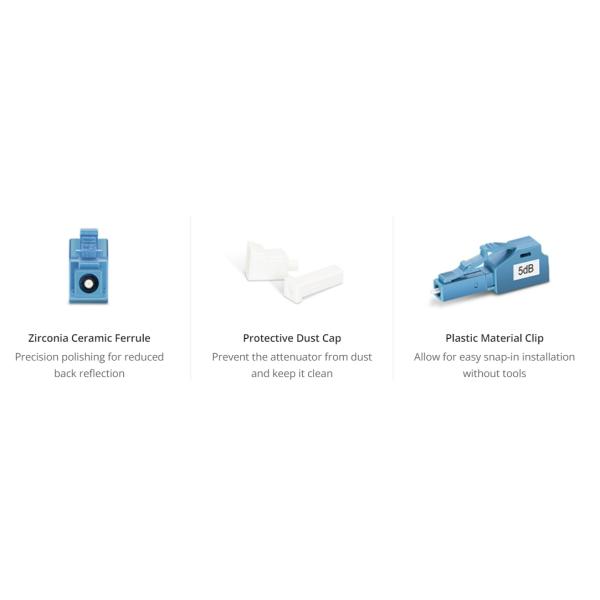

Ferrule Type :
Zirconia Ceramic
Connector Gender :
Fixed Male to Female
Transfer Mode :
Singlemode
Attenuation :
5dB
Operating Wavelength(nm) :
1260~1620(SM)
Attenuation Accuracy :
±0.5dB
Return Loss :
50dB
Polarization Dependent Loss :
≤0.2dB
Max Optical Input Power :
200mW
Durability :
500 times
Humidity :
95%RH
Operating Temperature Range :
-40 to 75°C (-40 to 167°F)
Storage Temperature Range :
-40 to 85°C (-40 to 185°F)
Description
LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator, Male-Female
As optical passive devices, Gezhi Photonics attenuators are primarily used in fiber optic systems to debug optical power performance, calibrate optical instruments, and attenuate fiber signals to ensure optical power remains at a stable and desired level in the link without affecting the original transmission wave.
Key Features
Signal Attenuation for Optical Transmission Security
Fiber optic attenuators reduce optical signal power levels and are often combined with active system components to maintain desired signal strength in fiber networks.
LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator Male to Female for Stable Signal Transmission LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator Male to Female for Stable Signal Transmission
Guaranteed Long-range Transmission with Accurate Attenuation
Built with metal-ion doped optical fiber, these attenuators provide stable 5dB attenuation levels to prevent optical overload at the receiver.
LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator Male to Female for Stable Signal Transmission
Versatile Applications in Fiber Optic Communication Systems
Fiber optic attenuators are commonly used to test power level margins in fiber optic communication systems and properly match transmitter and receiver optical signal levels.
LC/UPC Singlemode 5dB Fixed Fiber Optic Attenuator Male to Female for Stable Signal Transmission
Product Specifications
Fiber Connector SC/APC FC/UPC LC/UPC
Transfer Mode Singlemode Singlemode Singlemode
Attenuation 3dB 2dB 5dB
Operating Wavelength (nm) 1260~1620 (SM) 1260~1620 (SM) 1260~1620 (SM)
Return Loss ≥60dB ≥45dB ≥50dB
Durability 500 times ----- 500 times
