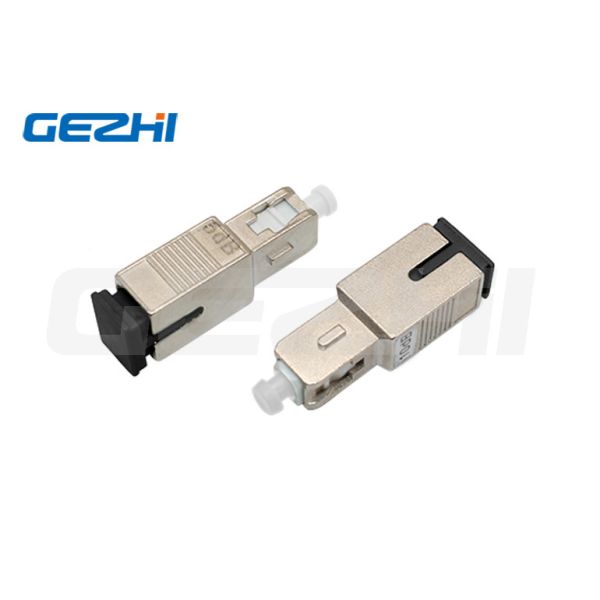

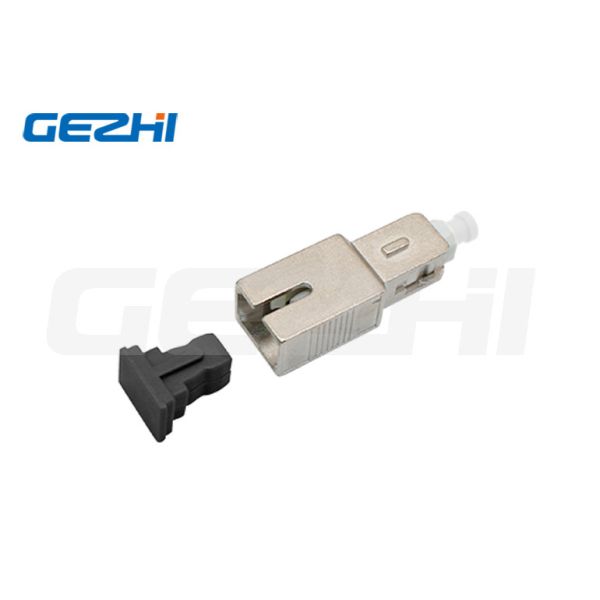

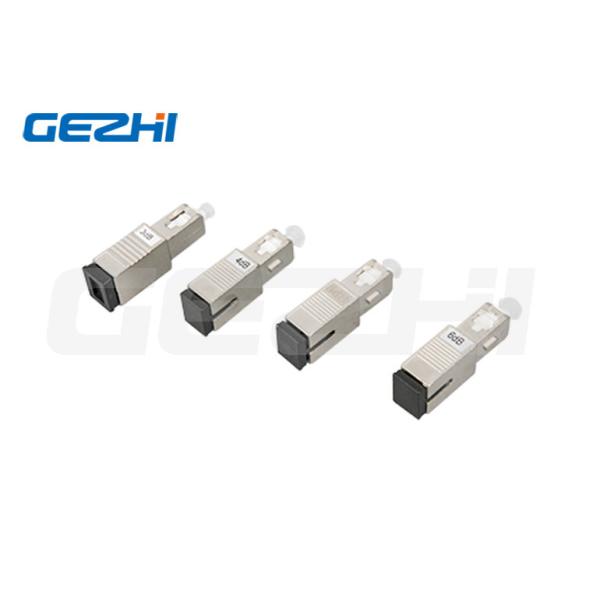

SC/UPC In-Line Fiber Optic Attenuator with 0-25dB Attenuation for 1310/1550nm Wavelength
SC/UPC In-Line Fiber Optic Attenuator with 0-25dB Attenuation for 1310/1550nm Wavelength
SC/UPC In-Line Fiber Optic Attenuator with 0-25dB Attenuation for 1310/1550nm Wavelength
SC/UPC In-Line Fiber Optic Attenuator with 0-25dB Attenuation for 1310/1550nm Wavelength
SC/UPC In-Line Fiber Optic Attenuator with 0-25dB Attenuation for 1310/1550nm Wavelength
SC/UPC In-Line Fiber Optic Attenuator with 0-25dB Attenuation for 1310/1550nm Wavelength
Specifications
Brand Name :
GEZHI or OEM
Model Number :
SC UPC Fiber Optical Attenuator
Certification :
ISO, ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
US$0.8/PCS-US$20/PCS
Payment Terms :
T/T,Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Name :
SC/UPC Female-Male Fiber Optical Attenuator
Attenuation Values :
0-25db
Attenuator Wavelength :
1310/1550
Operating Temperature :
-40°C~+75°C
Connector Type :
SC/UPC
Operating Wavelength(SM) :
1310nm And 1550
Attenuator Mode :
In Line Type
Description
SC UPC Inline Optical Attenuator
Female to Male 0-25dB Fiber Optic Accessories
Product Overview
Optical attenuators are precision devices designed to provide controlled signal attenuation in fiber optic transmission lines. Available in both fixed and variable types, these attenuators offer attenuation ranges from 1dB to 65dB and are manufactured to international standards including IEC compliance.
Key Features
  • Attenuation range: 1dB to 25dB
  • Compliant with ROHS, ISO9001, NTT, JIS, IEC, Bellcore standards
  • OEM/ODM services available
  • High precision attenuation tolerance
  • Multiple connector types available
Applications
  • Testing equipment and measurement systems
  • Fiber optical CATV networks
  • Fiber optical sensor systems
  • Fiber optical telecommunication systems
Technical Specifications
Parameter SM (9/125) MM (50/125, 62.5/125)
Attenuation Values 1dB to 20dB (1dB step), 25dB, 30dB 1dB to 25dB (1dB step)
Wavelength 1310nm & 1550nm 850nm & 1300nm
Attenuation Tolerance 1-10dB: <±1.0dB (standard), <±0.5dB (premium)
11-25dB: <±10% (standard), <±5% (premium)		 2dB,5dB,10dB: <±1.0dB (standard), <±0.5dB (premium)
15dB: <±10% (standard), <±5% (premium)
Return Loss PC: ≥45 dB
UPC: ≥55 dB
APC: ≥65 dB		 N/A
Operating Temperature -40°C to +75°C
Storage Temperature -40°C to +85°C
Attenuator Mode Fixed type, Male to Female type, In-line type, Variable type
