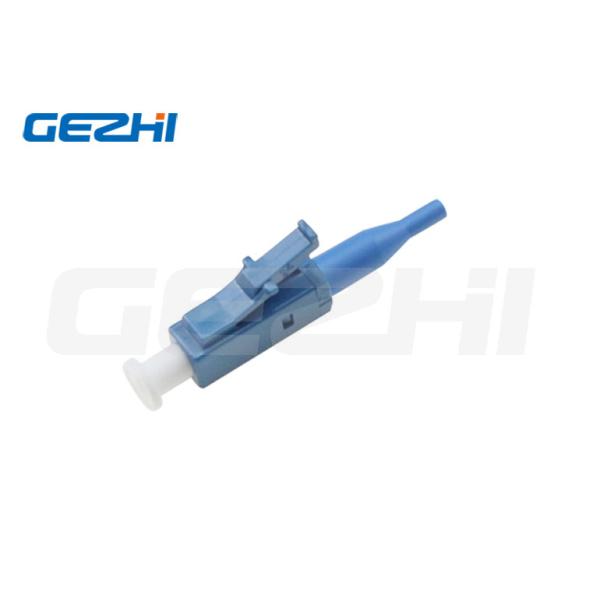

Compact Single Mode LC Fiber Optic Connector 0.9mm for FTTH Networks with Low Insertion Loss
Compact Single Mode LC Fiber Optic Connector 0.9mm for FTTH Networks with Low Insertion Loss
Compact Single Mode LC Fiber Optic Connector 0.9mm for FTTH Networks with Low Insertion Loss
Compact Single Mode LC Fiber Optic Connector 0.9mm for FTTH Networks with Low Insertion Loss
Compact Single Mode LC Fiber Optic Connector 0.9mm for FTTH Networks with Low Insertion Loss
Compact Single Mode LC Fiber Optic Connector 0.9mm for FTTH Networks with Low Insertion Loss
Specifications
Brand Name :
GEZHI or OEM
Model Number :
LC UPC/APC 0.9mm Connector
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
US$0.8/PCS-US$20/PCS
Payment Terms :
T/T,Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Connector Type :
LC UPC APC
Fiber Diameter :
0.9mm
Insertion Loss :
≤0.3dB
Return Loss :
≥60dB
Durability :
1000 times
Material :
Nickel plated brass, ceramic ferrule
Description

Compact Single Mode Simplex Optic Fiber Connector LC UPC APC 0.9mm FTTH Blue Green


Product Descriptions of Fiber Optic Connector:

The fiber optic connector has a screw thread fitting into the adapter to provide a secure connection. The connector is comprised of a nickel plated brass body and a ceramic ferrule/spring/crimp barrel assembly plus a crimp-over sleeve and rubber boot.


Optical Connector is a reusable passive component which could be applied in fiber and Cable connection. They are widely used in ODF, ODN,PON etc.Begate develop molds and produce various of kinds of Single Mode and Multi-mode fiber optic connectors for ST, SC, FC, LC, E2000, MPO, MU and MTRJ applications. Both pre-assembled connector and connector kits are available. Each fiber optic connector is functionally tested before shipping.


Application of Fiber Optic Connector:

1. Test Equipment

2. Data Processing Networks

3. Industrial, & Medical

4. Telecommunication Networks

5. Premise Installations

6. CATV, Metro

7. Local Area Networks (LANs)

8. Wide Area Networks (WANs)

9. Active Device Termination

Compact Single Mode LC Fiber Optic Connector 0.9mm for FTTH Networks with Low Insertion Loss


Features of Fiber Optic Connector:

1. Low insertion Loss and Back reflection loss
2. Polarized and color-coded (TIA568-A&ISO 11801)
3. UL-rated plastic housing and boot
4. Compact, pull-proof design
5. Behind-the-Wall style short connector


Product Details of Fiber Optic Connector:

Connector Type Performance Level
Standard Elite
Connector Mode Endface IL(dB) RL(dB) IL(dB) RL(dB)
LC/SC/FC/ST SM PC ≤0.3 ≥50 ≤0.2 ≥50
UPC ≤0.3 ≥55 ≤0.2 ≥55
APC ≤0.3 ≥60 ≤0.2 ≥60
MM PC ≤0.3 ≥35 ≤0.2 ≥35
MPO/MTP SM APC ≤0.7 ≥60 ≤0.35 ≥35
MM PC ≤0.5 ≥20 ≤0.35 ≥20
MTRJ SM PC ≤0.5 ≥50 / /
MM PC ≤0.5 ≥35 / /



Packaging:

1. Several pieces in a master PE bag

2. Hundreds piece in a cartoon

3. Other size carton is available too.


Pictures:


Compact Single Mode LC Fiber Optic Connector 0.9mm for FTTH Networks with Low Insertion Loss

Compact Single Mode LC Fiber Optic Connector 0.9mm for FTTH Networks with Low Insertion Loss
