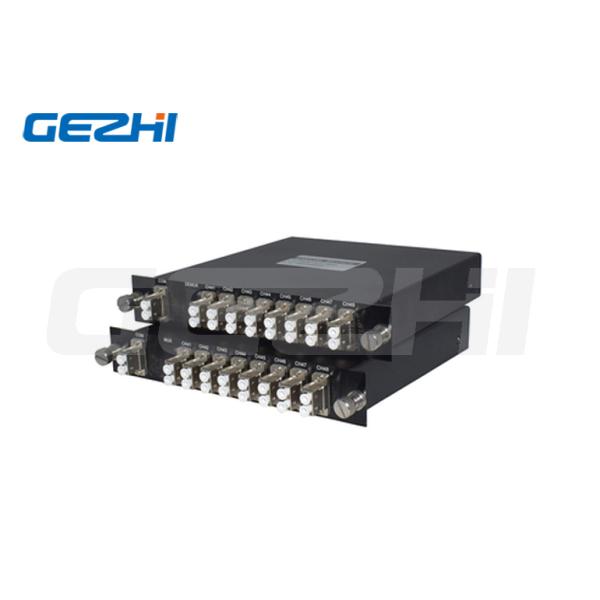

8CH DWDM Mux Demux Module CH41-CH48 Dual Fiber LGX With Metal Connectors
8CH DWDM Mux Demux Module CH41-CH48 Dual Fiber LGX With Metal Connectors
8CH DWDM Mux Demux Module CH41-CH48 Dual Fiber LGX With Metal Connectors
8CH DWDM Mux Demux Module CH41-CH48 Dual Fiber LGX With Metal Connectors
Specifications
Brand Name :
GEZHI or OEM
Model Number :
GZ-DWDM-8CH
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Product Name :
8CH DWDM Mux Demux
Package :
LGX
Center Wavelength :
C-band
Connector :
LC/UPC
Fiber Count :
2 Fibers
Operating Temperature :
-20 To +70℃
Description

8CH DWDM Mux Demux Module CH41-CH48 Dual Fiber LGX With Metal Connectors

Product Description

DWDM Mux/Demux ITU Wavelength provides the ability to consolidate your services over a single connection, whether voice, data, or Internet. Use fiber wavelength is unrestricted, allowing for increased control and scalability.

8CH DWDM Mux Demux Module CH41-CH48 Dual Fiber LGX With Metal Connectors

DWDM (Dense Wavelength Division Multiplexer) Mux/Demux Module offers high stable and reliable bandwidth in a cost-effective and small package. It's used with10G 80km DWDM SFP+ Transceiver for Long-Haul transportion.

Product specifications

Parameters
Channel Space(GHz) 100(standard) 200
Channel Number 1x4 1x8/1x16 1x40 1x4 1x8 1x16
Center Wavelength (nm) ITU Grid
Center Wavelength Accuracy(nm) +0.05 士0.1
Channel Passband(@-0.5dB)(nm) 0.22 0.5
Fiber Type SMF-28e with 900um loose tube or customer specified
IL(dB) 1.8 3.0 3.5 1.7 2.9 3.4
Passband Ripple(dB) 0.35 0.4 0.5 0.35 0.4 0.5
Isolation(dB) Adjacent Channel 25 28
Non AdjacentChannel 40
PDL(dB) 0.2
PMD(ps) 0.1
RL(dB) 45
Directivity (dB) 50
Maximum Optical Power (mw) 300
Operating Temperature (°C) -40~85
Storage Temperature (°C) -40~85
BOX Package(mm) 100*80*10 or140115*18
LGX Package 1U,2U
19 Rack mount Package 1U

Notes:

1.Specified without connectors.
2.Add an additional 0.2dB loss per connector.

Features Applications
* C Band * Channel Add/Drop
* 2-44 channels DWDM Mux/Demux (CH17-CH61) * DWDM Network
* Channel spacing: 0.8nm(100GHz Grid) * Wavelength Routing
* Com port is simplex * Fiber Optical Amplifier
* Protocol transparent (10Mbps to 100Gbps)

* CATV System
* Low insertion loss
* Excellent channel isolation
* Epoxy-free optical path
* Compliant to G.657A1 standard
* ISO 9001 manufacturing facility

* Wide Operating Temperature: -20~+70℃

Order Information

GZ Channel Spacing Channel Number Configuration 1st Channel Fiber Type Fiber Length Connector
GEZHI

1=100GHz

2=200GHZ

4=4-Channel

8=8-Channel

16=16-Channel

32=32-Channel

M=Mux

D=Demux

21=1560.61nm

22=1559.79nm

23=1558.98nm…

1=Bare fiber

2=900um Jacket

1=1 Meter

2=2 Meter

0=None

1=FC/APC

2=FC/PC

3=SC/APC

4=SC/PC

5=ST

6=LC
