4 Slot 1U Rack Mount 100Ghz 8CH DWDM Mux Demux Module
4 Slot 1U Rack Mount 100Ghz 8CH DWDM Mux Demux Module
4 Slot 1U Rack Mount 100Ghz 8CH DWDM Mux Demux Module
4 Slot 1U Rack Mount 100Ghz 8CH DWDM Mux Demux Module
4 Slot 1U Rack Mount 100Ghz 8CH DWDM Mux Demux Module
4 Slot 1U Rack Mount 100Ghz 8CH DWDM Mux Demux Module
4 Slot 1U Rack Mount 100Ghz 8CH DWDM Mux Demux Module
4 Slot 1U Rack Mount 100Ghz 8CH DWDM Mux Demux Module
Specifications
Brand Name :
GEZHI or OEM
Model Number :
4slot-8+1+MON-DWDM-MD
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union
Supply Ability :
100000Channel per month
Delivery Time :
5-8 work days
Packaging Details :
Paper box
Product Name :
DWDM Plug-in Module
Wavelength :
C34~C41+UPG+MON
Channel Passband :
0.8nm (100Ghz)
Line Type :
MUX+DMUX
Connector :
LC/UPC Adaptor
Application :
CATV Systems
Description

8CH DWDM Mux Demux Plug-in Module with Upgrade+Monitor in 4-slot 1U Rack-Mount

GEZHI’ 100Ghz 8CH DWDM Mux Demux Plug-in Module with Upgrade+Monitor is a low loss, high density passive optical module which based on the thin film coating technology with C34 to C41 wavelengthwith a upgrade port for future development and Fibre Extender and a monitor port to monitor the equipment status . The 100Ghz 8CH DWDM Mux Demux Plug-in Module with Upgrade+Monitor offers an high channel isolation WDM solution for data centers and Metro access applications. Its built a 8CH+Upgrade+Monitor DWDM Mux and 8CH+Upgrade+Monitor DWDM Demux in a LGX cassette, then insert 4cards LGX cassette in a 19" 1U Rackmount. The 8CH DWDM Mux Demux Plug-in Module is ideal for long-haul transport of fiber optic singals all over a dual fiber.

Features

ITU CWDM Grid

Low Insertion Loss

Monitor Port

4-slot 19" 1U Rackmount to save place

High Stability and Reliability

Applications

FTTX

Long-haul transport

CATV Systems

Data Center

WDM Network

Specification

Parameter Unit 8+1CH DWDM Mux+Demux
Channel Number -- 8+1CH
Operation Wavelength nm C34~C41+Upgrade+1% Monitor Port
Channel Central Wavelength nm ITU-T Grid @DWDM
Channel Passband nm 0.8 (100Ghz)
Insertion Loss @PB dB <2.8
Mux 1% monitoring dB <24.3
Demux 1% monitoring dB <21.5
Isolation @Adjacent Channel dB >30
Isolation @Non-adjacent Channel dB >34
Isolation @Reflect Channel dB >15
Passband Ripple dB <0.5
Polarization Dependent Loss dB <0.15
Polarization Mode Dispersion ps <0.1
Directivity & Return Loss dB Directivity: >50 Return Loss:>45
Power Handling mW <500
Connector -- SC/UPC or customized
Fiber Type -- SMF-28e or Customized
Operating Temperature ℃ -20 ~ +70
Storage Temperature ℃ -40 ~ +85
Package Dimension mm 4slot 19" 1U Rackmount

8CH DWDM Mux & Demux Module + Monitoring + Upgrade Port CWDM Module in 2-slot 1U Rack Mount

4 Slot 1U Rack Mount 100Ghz 8CH DWDM Mux Demux Module

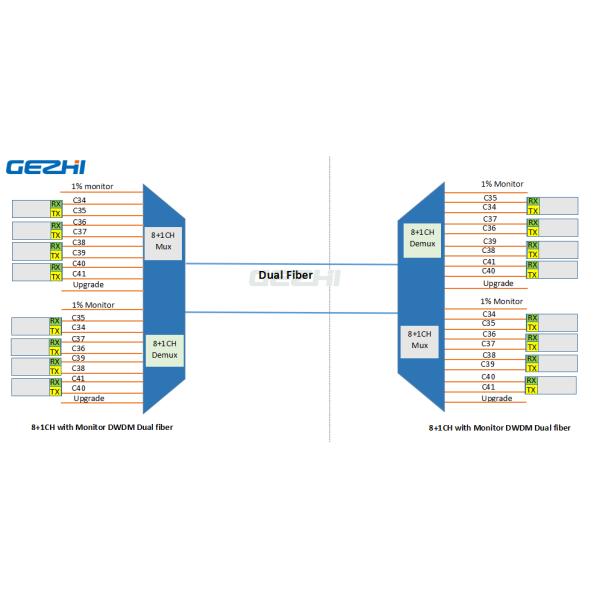

8CH DWDM Mux Demux Module Dual Fiber

4 Slot 1U Rack Mount 100Ghz 8CH DWDM Mux Demux Module

8CH DWDM Mux Demux Module Dual Fiber Test Data

4 Slot 1U Rack Mount 100Ghz 8CH DWDM Mux Demux Module
