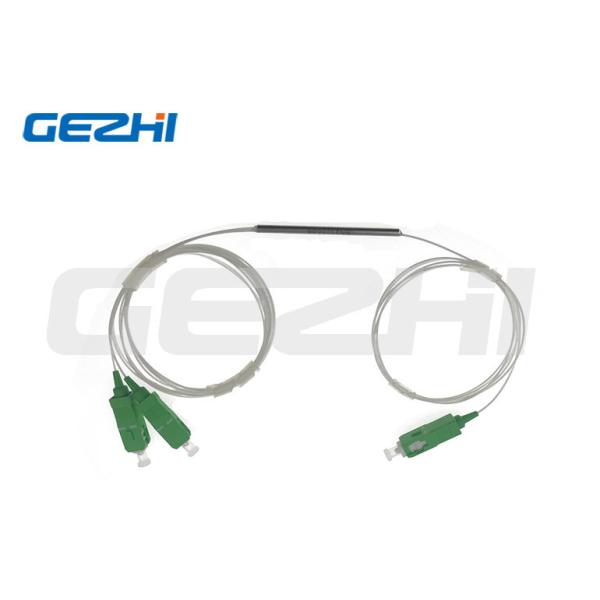

FTTH 1X2 FBT Coupler with Low Insertion Loss High Stability and SC/APC Connector for Optical Networks
FTTH 1X2 FBT Coupler with Low Insertion Loss High Stability and SC/APC Connector for Optical Networks
FTTH 1X2 FBT Coupler with Low Insertion Loss High Stability and SC/APC Connector for Optical Networks
FTTH 1X2 FBT Coupler with Low Insertion Loss High Stability and SC/APC Connector for Optical Networks
FTTH 1X2 FBT Coupler with Low Insertion Loss High Stability and SC/APC Connector for Optical Networks
FTTH 1X2 FBT Coupler with Low Insertion Loss High Stability and SC/APC Connector for Optical Networks
FTTH 1X2 FBT Coupler with Low Insertion Loss High Stability and SC/APC Connector for Optical Networks
FTTH 1X2 FBT Coupler with Low Insertion Loss High Stability and SC/APC Connector for Optical Networks
Specifications
Brand Name :
GEZHI or OEM
Model Number :
2 Way SC/APC FBT Fiber Optical Splitter
Certification :
CE RoHS,ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
US$59-US$118
Payment Terms :
T/T,Western Union
Supply Ability :
5000pcs per month
Packaging Details :
Paper box
Wavelength :
1310nm/1550nm
Description
FTTX FTTH 1X2 FBT Coupler 2 Way SC/APC Mini FBT Splitter 1310nm Or 1550nm
Product Overview

Hot Sale FTTX FTTH 1X2 FBT Coupler 2 Way SC/APC Mini FBT Fiber Optical Splitter 1310nm or 1550nm

Description

Fiber optic coupler is a device used in optical fiber systems with one or more input fibers and one or several output fibers. For fused optical splitters, they can be divided into different ratios such as 50/50 for even splits, or 80/20 where 80% of the signal goes to one side and 20% to the other. Optical splitters are essential components in passive optical networks (PON). FBT fused fiber splitters (couplers) support both singlemode (1310/1550nm) and multimode (850nm) applications.

Applications
  • Optical Fiber Communication Systems
  • Optical Fiber CATV
  • Passive Optical Network (PON)
  • Optical Amplifiers
  • Optical Access Networks/LAN
  • Monitoring Systems
  • Optical Fiber Sensor
Features
  • Excellent Environmental Stability
  • Excellent Mechanical Performance
  • Good Uniformity and Low Insertion Loss
  • Low Insertion Loss and Low Polarization Dependent Loss
  • Uniform Power Splitting with Good Stability and Reliability
  • Large-Scale Manufacturing Capability with Automatic Packaging Technology for Cost Advantage
FTTH 1X2 FBT Coupler with Low Insertion Loss High Stability and SC/APC Connector for Optical Networks
Specifications
Parameters Unit Values
Type / 1x2 or 2x2
Center Wavelength nm 1030 | 1064 | 1310 | 1550 | 2000
Operating Wavelength Range nm ±20 | ±20 | ±20 | ±20 | ±15
Max. Excess Loss dB 0.5 | 0.5 | 0.4 | 0.4 | 0.6
Tap Coupling Ratio % 1±0.5%, 5±1.0%, 10±2.0%, and 50%
Insertion Loss dB IL related to Coupling Ratio
Extinction Ratio dB 1x2:≥20 ; 2x2:≥18
Return Loss dB ≥55
Max Power Handling (CW) W 0.5, 1, or 3
Tensile Load N ≤5
Operating Temperature ℃ -5~+75
Storage Temperature ℃ -40~+85
Package Dimension mm φ3x54mm or φ3x60mm
Coupling Ratio Tolerance % 1/99 | 2/98 | 5/95 | 10/90 | 20/80 | 30/70 | 40/60 | 50/50
±0.5 | ±0.6 | ±1.0 | ±1.5 | ±2.0 | ±2.5 | ±3.0 | ±3.5
Dimensions
FTTH 1X2 FBT Coupler with Low Insertion Loss High Stability and SC/APC Connector for Optical Networks
1x2 Configuration
FTTH 1X2 FBT Coupler with Low Insertion Loss High Stability and SC/APC Connector for Optical Networks
2x2 Configuration
