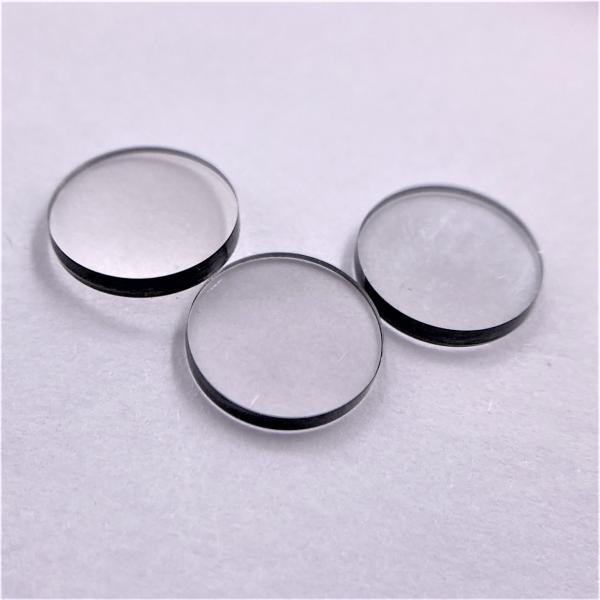

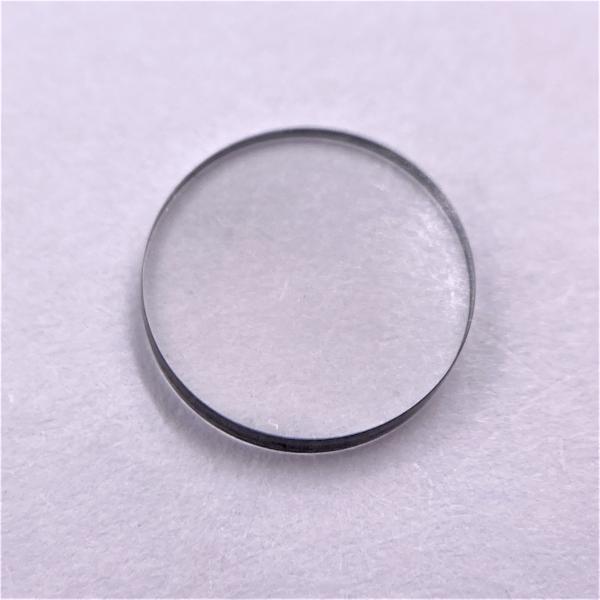

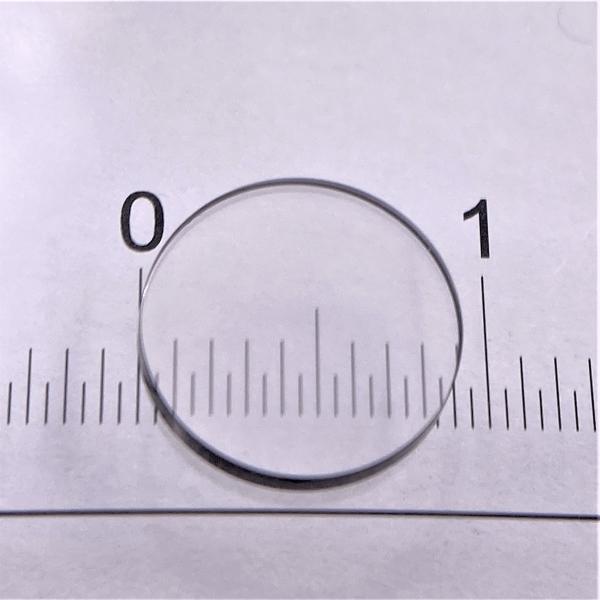

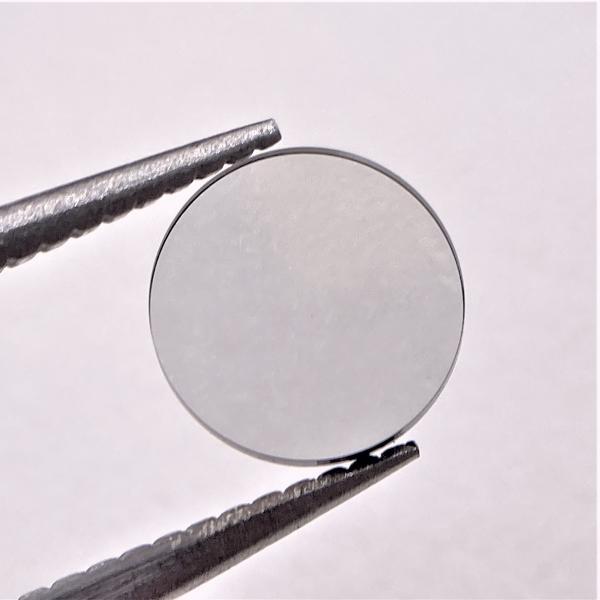

Round Optical CVD Diamond Components | Optical Grade Single Crystal CVD Diamonds
Round Optical CVD Diamond Components | Optical Grade Single Crystal CVD Diamonds
Round Optical CVD Diamond Components | Optical Grade Single Crystal CVD Diamonds
Round Optical CVD Diamond Components | Optical Grade Single Crystal CVD Diamonds
Round Optical CVD Diamond Components | Optical Grade Single Crystal CVD Diamonds
Round Optical CVD Diamond Components | Optical Grade Single Crystal CVD Diamonds
Round Optical CVD Diamond Components | Optical Grade Single Crystal CVD Diamonds
Round Optical CVD Diamond Components | Optical Grade Single Crystal CVD Diamonds
Round Optical CVD Diamond Components | Optical Grade Single Crystal CVD Diamonds
Round Optical CVD Diamond Components | Optical Grade Single Crystal CVD Diamonds
Round Optical CVD Diamond Components | Optical Grade Single Crystal CVD Diamonds
Round Optical CVD Diamond Components | Optical Grade Single Crystal CVD Diamonds
Specifications
Brand Name :
INFI
Model Number :
Round Optical Diamond
Place of Origin :
China ， Hunan
MOQ :
5
Price :
Please contact us
Supply Ability :
1000
Packaging Details :
Courier Box
Description

Optical Grade Single Crystal CVD Diamonds


These optically classified CVD single crystals possess unique optical and physical characteristics: superior light transmission, premium crystalline structure, dimensional stability, wear resistance, and high-temperature tolerance. Meeting stringent demands for optical systems, they enhance performance and reliability across optical applications.


Optical Applications

  • Laser Components: Resonators, output windows, mirrors

  • Windows & Lenses: Telescopes, cameras, sensors

  • Interferometer Elements: High-precision mirrors, beam splitters, gratings

  • Sensors: Spectrometers, optical scanners, photodetectors

  • Astronomical Observation Instruments

  • Fiber Optic Communication: Couplers, modulators, demodulators

  • Precision Measurement: Interferometers, Raman spectrometers

  • Medical Imaging: Endoscopes, optical microscopes, laser devices

  • Industrial: Laser etching equipment


Competitive Advantages
• Compact Component Design: 50% smaller than conventional optics
• Extreme Temperature Operation: -200°C to 850°C range
• Enhanced Signal Integrity: 40 dB higher SNR vs. sapphire windows


Material Properties
CVD diamond delivers exceptionally high broadband wavelength transmission with minimal IR scatter. Its extreme hardness and chemical inertness make it ideal for high-power, large-area applications requiring hazardous material resistance and strength. These properties enable compact geometries for lightweight solutions. Diamond shaping advancements solve novel optical challenges.


Round Optical CVD Diamond Components | Optical Grade Single Crystal CVD DiamondsRound Optical CVD Diamond Components | Optical Grade Single Crystal CVD Diamonds


Specification
Available size Up to 15*15mm²
Available thickness 0.1~2mm
Lateral tolerance +0.1,-0mm
Thickness precision ±0.02mm @≤10mm
±0.03mm @10~15mm
Face orientation {100}
Surface finish Polished,Ra<2nm
Edges Laser Cut
Laser Kerf <3°
Density 3.52g/cm³
Raman FWHM ~2.1cm-1
Nitrogen concentation <0.5ppm
Thermal conductivity 1900~2200W/(m*K) @300 K
Transmission >70% @1064nm
Refractiveindex 2.379 @10.6um


Optical grade CVD diamonds are also available in other shapes:

Round Optical CVD Diamond Components | Optical Grade Single Crystal CVD DiamondsRound Optical CVD Diamond Components | Optical Grade Single Crystal CVD Diamonds
