Specifications
Brand Name :
INFI
Model Number :
Square Optical Diamond
Place of Origin :
China
MOQ :
5
Price :
Negotiable
Supply Ability :
1000
Packaging Details :
Courier Box
Description

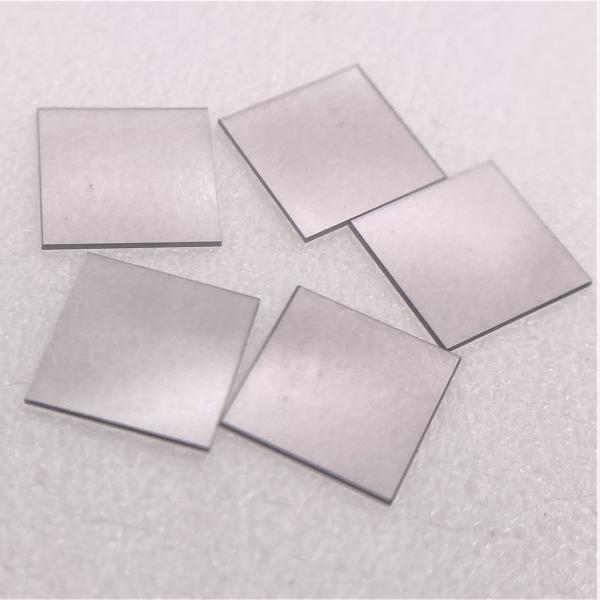

Square Optical CVD Diamonds

Characterized by outstanding optical performance, flawless crystal structure, dimensional integrity, wear resilience, and thermal stability, optical-grade CVD single crystal diamond fulfills demanding specifications for sophisticated optical systems. This elevates reliability and functionality across optical domains.


Specification
Face orientation {100}
Surface finish Polished,Ra<2nm
Edges Laser Cut
Laser Kerf <3°
Density 3.52g/cm³
Raman FWHM ~2.1cm-1
Nitrogen concentation <0.5ppm
Thermal conductivity 1900~2200W/(m*K) @300 K
Transmission >70% @1064nm
Refractiveindex 2.379 @10.6um


Implementation Areas

  1. Laser components (resonators/output windows)

  2. Optical lenses & sensors (telescopes/cameras)

  3. Interferometry elements (mirrors/beam splitters)

  4. Detection systems (spectrometers/scanners)

  5. Astronomical observation tools

  6. Fiber optic communication modules

  7. Precision measurement instruments

  8. Medical imaging devices (endoscopes/lasers)

  9. Laser etching systems


Square Optical CVD Diamonds | Higher quality Single Crystal CVD DiamondSquare Optical CVD Diamonds | Higher quality Single Crystal CVD Diamond


Technical Attributes
With broad-spectrum transmission and low infrared dispersion, CVD diamond combines extreme hardness with chemical inertness. This enables high-power/large-area applications demanding material strength and environmental resistance. Compact geometries facilitate lightweight designs, while advanced fabrication techniques address novel optical requirements.


Key Differentiators

  • Space Efficiency: Half the size of traditional optics

  • Thermal Endurance: Operational from cryogenic -200°C to 850°C

  • Signal Integrity: 40 dB superior signal-to-noise ratio vs. sapphire
