Automatic CNC Pipe Profile Cutting Machine 5 Axis Window Based Controller
Automatic CNC Pipe Profile Cutting Machine 5 Axis Window Based Controller
Specifications
Brand Name :
TAYOR
Model Number :
CNCXG-600
Certification :
CE
Place of Origin :
China
MOQ :
1Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30 Set a Month
Delivery Time :
30 days after payment
Packaging Details :
Wooden Case
Name :
CNC Pipe Profile Plasma Cutting Machine
Model :
CNCXG-600
Application :
CNC Pipe Profile Plasma Cutting for Steel Structure or Pressure vessel Cutting
Pipe OD :
50-630mm
Wall Thickness :
1-30mm Carbon Steel (Plasma Cutting)
Pipe Length :
6000mm
Controller :
5 axis Window Based CNC controller
Plasma Power Source Model :
125
Description

CNC Pipe Plasma Cutting Machine for Pipe Proflie Automatic Beveling and Cutting

Model: CNCXG600-V

Applications:

  • Pressure Vessel Building
  • Chemical Pipeline fabricating
  • Oil pipeline manufacturing
  • Steel Structure pipe cutting

    • Features

  • Multi-axis controlled and free movement to finish pipe end or bevel cut
  • 10” Touch screen controller with appropriative software
  • Off-line programming
  • Compatible with AutoCAD and Tekla
  • Flame and plasma cutting torch for thin and stainless steel tube

    • Specification

    Pipe Diameter 50-630 mm
    Torch Rail length (Pipe length) ≤12000 mm
    Cutting model Flame
    Plasma Cutting Thickness 1-25 mm
    Plasma model 105
    Flame cutting thickness 6-40 mm
    Photoelectric Height Sensor 0.1 sec response speed
    Control System pipe profile cutting software
    Data input Torch Screen Data Input
    Max Loading capacity 4000Kg
    Pipe Chuck 3 Jaws concentric chuck
    Flame Max beveling angle ±60°
    Plasma Max beveling angle ±45°
    Flame cutting speed 50 mm/min -800 mm/min
    Plasma cutting speed 100 mm/min-4000 mm/min
    Moving Error ≤0.2 mm /1000 mm
    Turning Angle Error ≤1° per 180°
    Pipe Rotate speed 0-10000 mm/min

    Detailed Pictures

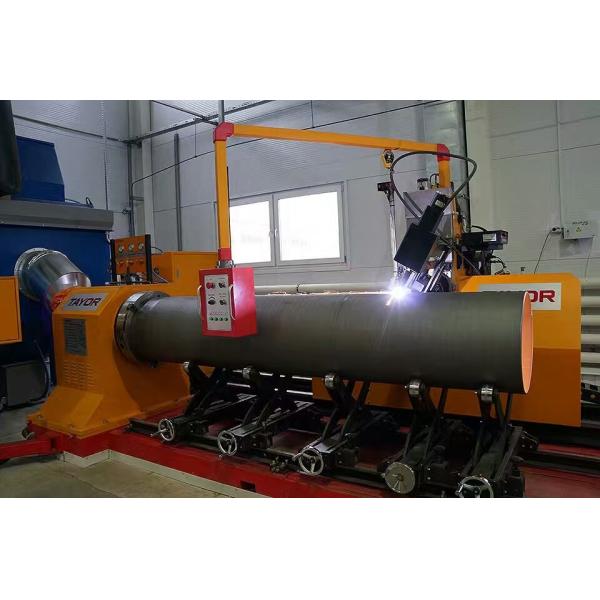

    Automatic CNC Pipe Profile Cutting Machine 5 Axis Window Based Controller

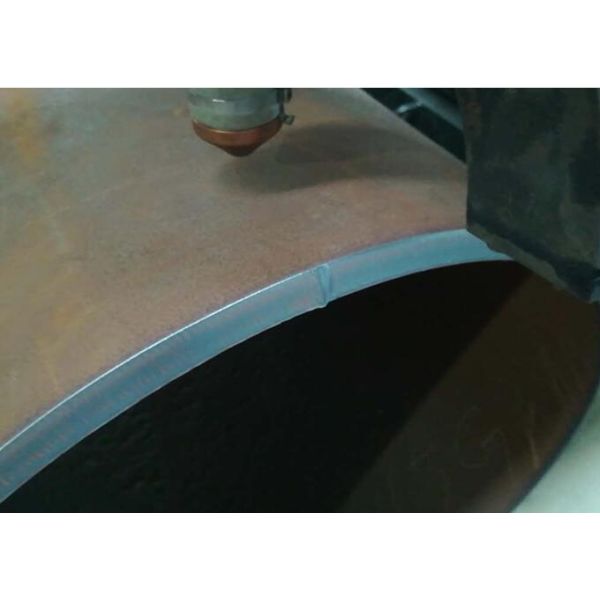

    Profile Cutting Effect of CNCXG600-V

    Automatic CNC Pipe Profile Cutting Machine 5 Axis Window Based Controller

    Automatic CNC Pipe Profile Cutting Machine 5 Axis Window Based Controller

    Order information

    Order Code CNCXG600-V
    Packing Wooden Case and Pallet
    Packing Size 2200 x 5200 x 2000 mm
    Packing Weight 5000Kg
    Delivery Time 30 Days after payment
