Metal Plate Gantry Type Cnc Plasma Cutting Machine
Metal Plate Gantry Type Cnc Plasma Cutting Machine
Metal Plate Gantry Type Cnc Plasma Cutting Machine
Metal Plate Gantry Type Cnc Plasma Cutting Machine
Metal Plate Gantry Type Cnc Plasma Cutting Machine
Metal Plate Gantry Type Cnc Plasma Cutting Machine
Metal Plate Gantry Type Cnc Plasma Cutting Machine
Metal Plate Gantry Type Cnc Plasma Cutting Machine
Metal Plate Gantry Type Cnc Plasma Cutting Machine
Metal Plate Gantry Type Cnc Plasma Cutting Machine
Specifications
Brand Name :
Hyzont
Model Number :
CNCSG-4000
Certification :
CE
Place of Origin :
Shanghai
MOQ :
1sets
Payment Terms :
T/T, L/C, Western Union, MoneyGram
Supply Ability :
100 sets / Month
Delivery Time :
10 days
Packaging Details :
wooden case
Usage :
Welding
Voltage :
220V
After-sales service provided :
Engineers available to service machinery overseas
Condition :
New
Welding area :
Customizable
name :
Cnc Plasma Cutting Machine
Description

Gantry type CNC plasma cutting machine price for easy metal plate and tube cutting .

Product Details

Gear rack

The rack and pinion combined with double cylinder axis guide rail deliver you high precision motion and high quality cutting edge, which will enhance your competitive power in your market place.

Electric cabinet

The enclosed control cabinet is easily accessible. The digital drives, low-cost replacement I/O modules and more reduce and limit your repaire and maintenance costs.

Metal Plate Gantry Type Cnc Plasma Cutting Machine Metal Plate Gantry Type Cnc Plasma Cutting Machine

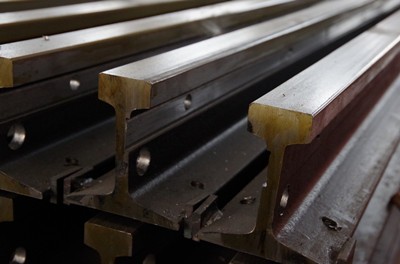

Floor mounted rails

Rugged floor mounted rails machined from 24 kg/m crane rail for smooth motion required by today's high performance plasma and flame torches.

Heavy-duty end trucks

The heavy-duty end trucks can support the steel dual cross beam and offer you rugged gantry structure ready to carry the cutting processes while offering you excellent part quality.

Metal Plate Gantry Type Cnc Plasma Cutting Machine
Technical item Technical parameters
Effective cutting width 2000 mm - 5500 mm
Effective cutting length 4000 mm - 20000 mm
Tailor-made dimension Accept tailor-made order
Flame piercing thickness 6 mm -80 mm
Edge cutting thickness 6 mm -200 mm for flame cutting
Plasma cutting thickness 1-45 mm for plasma cutting
Torch lifter vertical traveling distance ≤150 mm
Cutting precision ±0.5 mm
Cutting speed 100-12000 mm/min for plasma cutting 50-600 mm/min for flame cutting process
Number of lifter Double (standard), accept tailor-made order
Cutting process Plasma cutting and flame cutting
Torch lifting device flame capacitance adjustment /plasma arc pressure adjustment
duty cycle 24h
processing material Mild steel, stainless steel and aluminum

HYZONT (SHANGHAI) INDUSTRIAL TECHNOLOGIES CO., LTD.

Add: Building 1, Lane 99 Shenmei Road, Pudong District, Shanghai, China

Sales Manager: Mr. Ricky

Mob: +86 131 20953 010 WhatsApp: +86 131 20953 010 WeChat: zgyricky

Email: plasmacut@aliyun.com ricky@hyzontweldcut.com ricky@hyzont.com
