Automatic Orbital TIG Welding Machine HZTS-40 OBT-200 All Position Welder Heat Exchanger Tube to Tubesheet Welding
Automatic Orbital TIG Welding Machine HZTS-40 OBT-200 All Position Welder Heat Exchanger Tube to Tubesheet Welding
Automatic Orbital TIG Welding Machine HZTS-40 OBT-200 All Position Welder Heat Exchanger Tube to Tubesheet Welding
Automatic Orbital TIG Welding Machine HZTS-40 OBT-200 All Position Welder Heat Exchanger Tube to Tubesheet Welding
Automatic Orbital TIG Welding Machine HZTS-40 OBT-200 All Position Welder Heat Exchanger Tube to Tubesheet Welding
Automatic Orbital TIG Welding Machine HZTS-40 OBT-200 All Position Welder Heat Exchanger Tube to Tubesheet Welding
Automatic Orbital TIG Welding Machine HZTS-40 OBT-200 All Position Welder Heat Exchanger Tube to Tubesheet Welding
Automatic Orbital TIG Welding Machine HZTS-40 OBT-200 All Position Welder Heat Exchanger Tube to Tubesheet Welding
Specifications
Welding Power Source Model :
OBT-200
Manufacturing Standard :
GB15579.1-2024
Price :
USD 9000-13000 / Set (FOB Shanghai)
Applicable Tube OD :
Φ16-38mm (5/8"-1 1/2")
Welding Process :
All-position GTAW (TIG) argon arc fusion
Welding Current :
5A-200A
Cooling :
Water-cooled torch, air-cooled power source
MOQ :
1 Set
Packaging Details :
Aviation case for welding torch and export wooden case for power source
Tungsten Electrode Diameter :
Φ1.0mm
Storable Programs :
200
Brand Name :
HZTS
Torch Rotation Speed :
0.6-12 rpm
Display :
10-inch touch screen HMI
Printer :
Yes
Place of Origin :
Shanghai, China
Supply Ability :
100 Sets per Year
Delivery Time :
14 days after deposit
Divisible Welding Sections :
4
Certification :
GB15579.1-2024
Payment Terms :
30% deposit,70% balance before delivery (T/T)
Torch Angle :
0° or 7° (standard 7°)
Input Power :
AC220V±10% 50Hz/60Hz
Model Number :
HZTS-40 / OBT-200
Welding Torch Model :
HZTS-40
Warranty :
12 months from B/L date
Duty Cycle :
200A 60% / 150A 100%
Tube Type :
Tube ends flush
Description

Product Overview

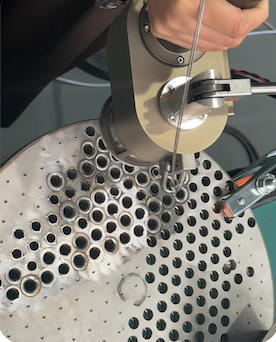

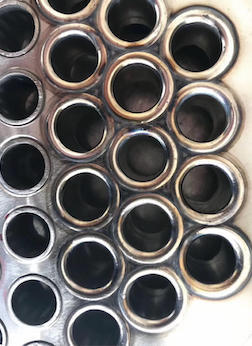

The tube to tubesheet automatic orbital welding machine is an integrated all-position GTAW (TIG) welding system specially designed for heat exchanger, condenser and boiler tube-to-tubesheet joints. It consists of the HZTS-40 suspended orbital welding torch and the OBT-200 integrated TIG orbital welding power source, delivering consistent, high-quality welds for thin-walled tubes in demanding industrial environments.

Main Components

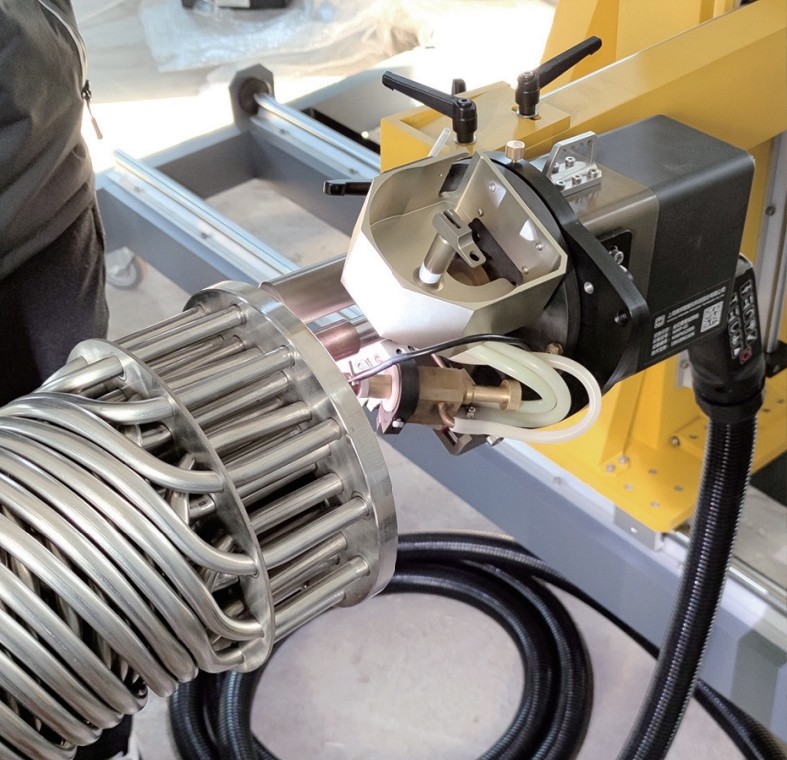

  • HZTS-40 All-position tube to tubesheet automatic orbital welding torch with suspended structure and internal circulating water cooling
  • OBT-200 Integrated TIG orbital welding power source with 10-inch touch screen HMI, printer and 3L water tank

Key Features

  • Modular design, compact structure, reliable and easy to use
  • All-position orbital welding for heat exchanger tube projection welding and tube flush welding
  • Welding area enclosed by transparent gas hood to ensure weld quality
  • Argon arc fusion welding process suitable for stainless steel, titanium alloy and carbon steel tubes
  • Water-cooled welding torch supports high-duty operation and improves efficiency
  • Suspended torch structure with simple HMI allows convenient single-person operation
  • Open and upgradable control system with 200 storable programs and 4 divisible welding sections

Technical Specifications

HZTS-40 Orbital Welding Torch

Tube TypeTube ends flush
Applicable Tube OD RangeΦ16-38mm (5/8"-1 1/2")
Cooling TypeInternal circulating water cooling
Adjustable Torch Angle0° or 7° (standard 7°)
Tungsten Electrode DiameterΦ1.0mm
Rotation Speed0.6-12 rpm
Welding ModeRotating non-twisting all-position mode with automatic reset
Shielding GasArgon
Torch Weight3.6 kg (without cables)

OBT-200 Integrated TIG Orbital Welding Power Source

Power Supply TypeIGBT inverter arc welding power source
Main Power VoltageAC220V±10% 50Hz/60Hz
Welding Current5A-200A
Duty Cycle200A 60% / 150A 100%
OCV65V
Power Rate4.5 KVA
Insulation / Protection ClassF / IP21
Display10-inch touch screen
Storable Programs200
Divisible Welding Sections4
PrinterYes
Water Tank Capacity3L
Dimensions (L/W/H)500 x 380 x 300 mm
Weight25 kg
Manufacturing StandardGB15579.1-2024

Applications

Specifically designed for thin-walled tube welding in semiconductors, chemical, food, pharmaceutical, electronic pipeline and heat exchanger manufacturing industries.

Services and Warranty

  • Price terms: FOB Shanghai
  • Lead time: 14 days
  • Payment: 30% deposit, 70% balance before delivery
  • Warranty: 12 months from B/L date
  • Online guidance for installation and commissioning provided

Contact us for detailed quotation and customized tube to tubesheet welding solutions.

HYZONT (SHANGHAI) INDUSTRIAL TECHNOLOGIES CO., LTD.
Add: Building 1, Lane 99 Shenmei Road, Pudong District, Shanghai, China
Sales Manager: Mr. Raymond
Mob: +86 15021164313 | WhatsApp: +8615021164313 | WeChat: +8615021164313
