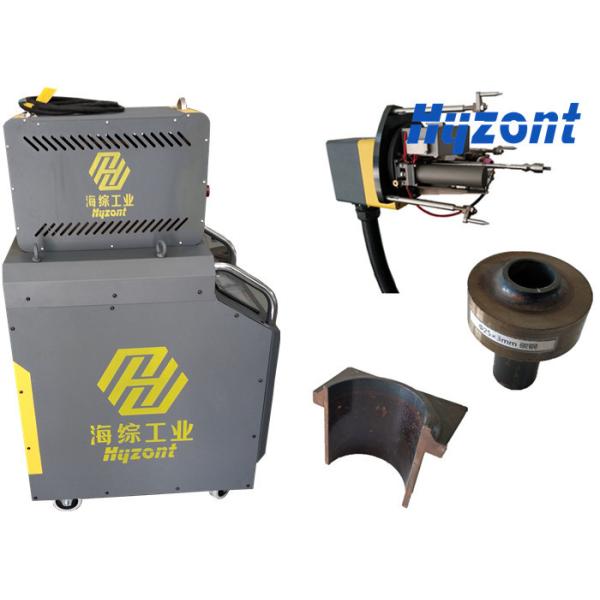

Compact Narrow Pitch Tube-to-Tubesheet Welding Machine with Digital Touch Screen and Lightweight Head
Compact Narrow Pitch Tube-to-Tubesheet Welding Machine with Digital Touch Screen and Lightweight Head
Compact Narrow Pitch Tube-to-Tubesheet Welding Machine with Digital Touch Screen and Lightweight Head
Compact Narrow Pitch Tube-to-Tubesheet Welding Machine with Digital Touch Screen and Lightweight Head
Specifications
Power Supply :
220V 50-60Hz
Certification :
CE, ISO 9001:2015
Packaging Details :
Export wooden case with shock-proof protection
Tube Diameter :
6-76 mm
Payment Terms :
T/T, L/C
Welding Process :
TIG / GTAW
Control System :
Digital Touch Screen
Delivery Time :
30-45 working days
Minimum Tube Pitch :
1.5 x Tube OD
Supply Ability :
30 Sets per Month
MOQ :
1 Set
Price :
USD 8000-35000 / Set
Welding Current :
5-250 A
Place of Origin :
Shanghai, China
Head Weight :
3.5 kg
Brand Name :
Hyzont
Model Number :
HTT-NP
Description

Compact Tube-to-Tubesheet Welding Machine for Narrow Pitch Tube Bundles

This compact tube-to-tubesheet welding machine is specially engineered for narrow pitch tube bundles where space between tubes is limited. The slim welding head design allows access to tight tube pitches without compromising weld quality, making it ideal for high density heat exchanger tube sheets.

Key Features

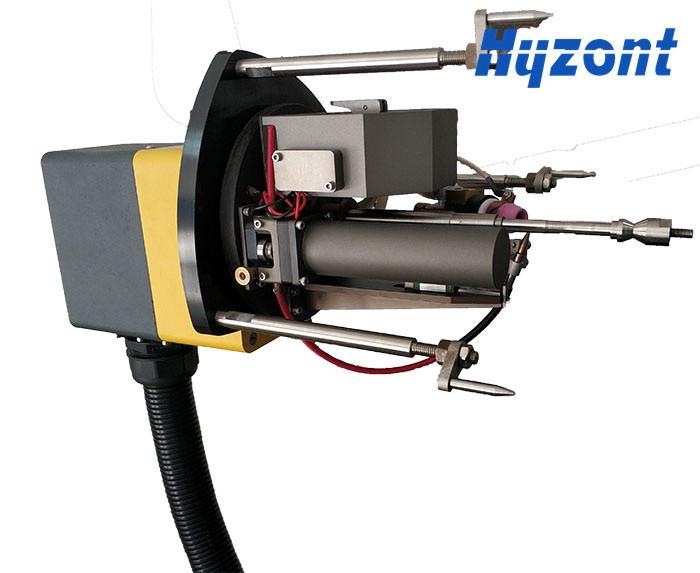

  • Slim welding head fits narrow pitch tube arrangements with minimal clearance
  • Lightweight head design reduces operator fatigue during long welding sessions
  • Precise torch positioning ensures consistent weld penetration
  • Compatible with protruding and flush tube ends
  • Quick release clamping mechanism for fast tube-to-tube positioning
  • Compact power source with digital current control

Technical Specifications

Tube Diameter Range6 - 76 mm
Minimum Tube Pitch1.5 x Tube OD
Welding ProcessTIG / GTAW
Welding Current5 - 250 A
Head Weight3.5 kg
Control SystemDigital Touch Screen
Power Supply220V / 50-60Hz

Applications

Ideal for heat exchangers, condensers and coolers with dense tube bundles in the chemical, power generation, HVAC and refrigeration industries.
