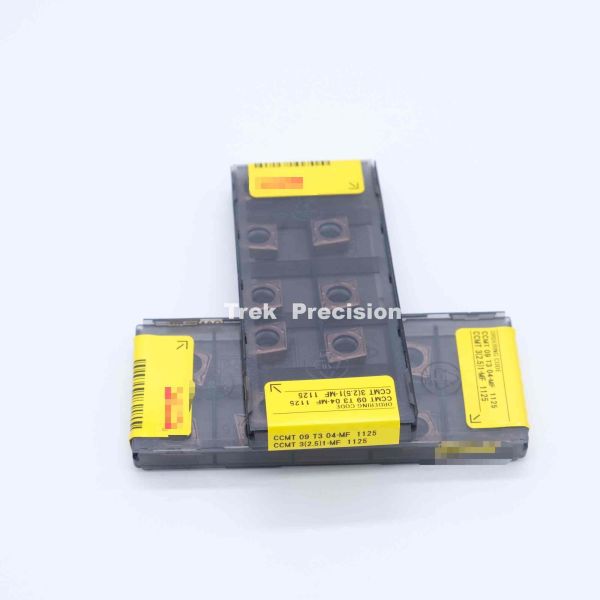

CCMT09T304-MF 1125 Precision Cutting Tools Metalworking Cutting Tools
CCMT09T304-MF 1125 Precision Cutting Tools Metalworking Cutting Tools
CCMT09T304-MF 1125 Precision Cutting Tools Metalworking Cutting Tools
CCMT09T304-MF 1125 Precision Cutting Tools Metalworking Cutting Tools
CCMT09T304-MF 1125 Precision Cutting Tools Metalworking Cutting Tools
CCMT09T304-MF 1125 Precision Cutting Tools Metalworking Cutting Tools
CCMT09T304-MF 1125 Precision Cutting Tools Metalworking Cutting Tools
CCMT09T304-MF 1125 Precision Cutting Tools Metalworking Cutting Tools
Specifications
Model Number :
CCMT09T304-MF 1125
Place of Origin :
Sweden
MOQ :
100
Price :
2-10USD/PCS
Payment Terms :
TT
Delivery Time :
4WEEKS
Packaging Details :
Carton with Bubble paper which is suitable for long-distance transport
Coating Type :
PVD
Diameter :
Varies by tool type, typically 3-25 mm
Processing :
Semi-finishing
Grade :
K30
Thickness :
6.40mm
Hardness Hra :
91.5
Cutting Edge :
None
Mfc :
0.3mm/r(0.1~0.6)
Application :
Metal cutting, machining, drilling, milling, turning
Hardness :
Up to 90 HRA
Hrc Degree :
45/50/55/60/65
For Brand :
Dornier/Toyota/Picanol loom
Cutterhead :
three-face
Iso Code :
P40
Compatibility :
Suitable for CNC machines and conventional machines
Description
CCMT09T304-MF 1125 precision cutting tools,metalworking tools,cutting tools.
CCMT09T304-MF 1125 Precision Cutting Tools Metalworking Cutting Tools
Product Description

The CCMT09T304-MF 1125 is a premium 80° rhombic turning insert engineered for high-precision finishing and light interrupted machining applications. Designed to address the challenges of加工 (machining) stainless steel, alloy steel, and heat-resistant superalloys (HRSAs), this insert combines Coromant's advanced material technology with optimized chip control geometry to deliver exceptional performance, tool life, and surface finish quality.

Technical Specifications
Parameter Value (mm) Value (inch) Engineering Significance
Inscribed Circle Diameter (IC) 9.525 ± 0.05 0.375 ± 0.002 Ensures compatibility with standard tool holders
Cutting Edge Length (L) 9.67 0.381 Provides stable cutting force distribution
Insert Thickness (S) 3.97 ± 0.13 0.1562 ± 0.005 Balances rigidity and chip flow space
Corner Radius (rε) 0.4 0.0156 Optimizes surface finish in finishing operations
Clearance Angle (αₙ) 7° - Reduces flank wear and friction
Fixing Hole Diameter (d₁) 4.4 0.1732 Secure insert clamping for vibration resistance
Material & Coating Technology

The insert features the GC 1125 grade, a PVD TiAlN (Titanium Aluminum Nitride) coated超细晶粒硬质合金 (ultra-fine grain carbide) that represents a breakthrough in cutting tool material science. This composition delivers:

  • Superior Wear Resistance: The multi-layer TiAlN coating provides exceptional resistance to abrasive wear, extending tool life by up to 50% compared to conventional coatings in stainless steel applications.
  • Enhanced Toughness: The ultra-fine grain carbide substrate ensures high刃口韧性 (edge toughness), making it suitable for light interrupted machining common in automotive and aerospace components.
  • Heat Resistance: The coating's thermal barrier properties maintain cutting performance at medium to high speeds (up to 475 m/min for non-ferrous materials), preventing thermal cracking in heat-sensitive alloys.
MF Chip Breaker Design

The MF (Medium Finish) chip breaker geometry is specifically optimized for finishing operations with low to medium feeds. Key features include:

3D rake angle design reduces cutting forces by 15-20%, minimizing workpiece deformation while ensuring sharp cutting action. The double projection structure enhances chip fragmentation, even for tough-to-machine materials like 304 stainless steel.

This design excels in producing consistent, manageable chips across a range of materials, reducing machine downtime for chip removal and improving process stability.

Application Range
Primary Materials
  • Stainless Steel (304, 316, 201)
  • Alloy Steel (45#, 27SiMn, 42CrMo4)
  • HRSAs (Inconel, Hastelloy)
  • Cast Iron (GG25, QT250)
Recommended Operations
  • External/Internal Turning
  • Finishing & Semi-finishing
  • Light Interrupted Machining
  • Precision Chamfering
Cutting Parameters (Reference)
Material Cutting Speed (m/min) Feed Rate (mm/rev) Depth of Cut (mm)
Carbon Steel (200 HB) 125-205 0.08-0.3 0.3-2
Stainless Steel (304) 80-150 0.08-0.21 0.5-1.4
Aluminum Alloy 300-800 0.1-0.3 Up to 3
HRSAs 35-80 0.08-0.15 0.5-1

Note: Parameters should be adjusted based on specific machine capabilities and workpiece conditions. For optimal results, refer to Coromant's CoroPlus™ Tool Library.

Competitive Advantages
  • Cost Efficiency: Extended tool life reduces insert change frequency and tooling costs
  • Surface Quality: Consistent 0.4mm corner radius delivers Ra ≤ 1.6μm surface finish
  • Versatility: Single grade suitable for multiple material groups, simplifying inventory management
  • Sustainability: Reduced tool consumption lowers environmental impact
