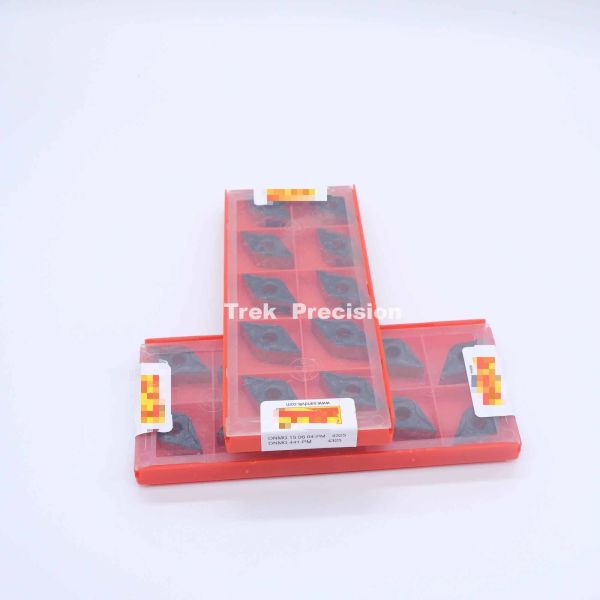

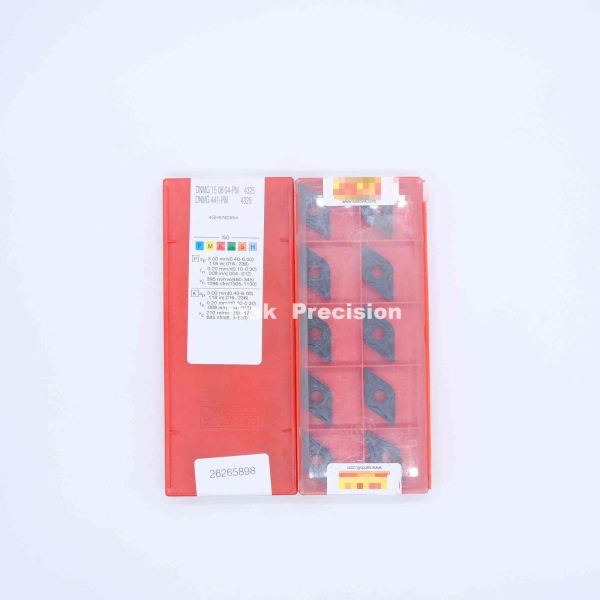

DNMG150604‑PM 4325 Grade Tungsten Carbide Indexable Turning Insert Compatible with Sandviks Coromant For CNC Steel Lathe Turning Machining
DNMG150604‑PM 4325 Grade Tungsten Carbide Indexable Turning Insert Compatible with Sandviks Coromant For CNC Steel Lathe Turning Machining
DNMG150604‑PM 4325 Grade Tungsten Carbide Indexable Turning Insert Compatible with Sandviks Coromant For CNC Steel Lathe Turning Machining
DNMG150604‑PM 4325 Grade Tungsten Carbide Indexable Turning Insert Compatible with Sandviks Coromant For CNC Steel Lathe Turning Machining
DNMG150604‑PM 4325 Grade Tungsten Carbide Indexable Turning Insert Compatible with Sandviks Coromant For CNC Steel Lathe Turning Machining
DNMG150604‑PM 4325 Grade Tungsten Carbide Indexable Turning Insert Compatible with Sandviks Coromant For CNC Steel Lathe Turning Machining
DNMG150604‑PM 4325 Grade Tungsten Carbide Indexable Turning Insert Compatible with Sandviks Coromant For CNC Steel Lathe Turning Machining
DNMG150604‑PM 4325 Grade Tungsten Carbide Indexable Turning Insert Compatible with Sandviks Coromant For CNC Steel Lathe Turning Machining
Specifications
Productname :
Carbide Cutting Tools
Trs :
1800
Structure Type :
Clip-on
Tip Height :
3.55
Coating Type :
PVD
Condition :
rough ground
Trs Mpa :
2250
Blade Face :
five faces
Coating :
TiN, TiAlN, AlTiN, DLC (optional)
Tolerance :
±0.01 mm
Wearresistance :
High
Brand Name :
Sandviks
Model Number :
DNMG150604-PM 4325
Place of Origin :
Sweden
MOQ :
100
Price :
2-10USD/PCS
Payment Terms :
TT
Delivery Time :
4WEEKS
Packaging Details :
Carton with Bubble paper which is suitable for long-distance transport
Flutes :
2/3/4 F
Alloy Composition :
WC and Co
Tooltype :
End mills, inserts, drills, reamers, taps
Hardness :
Up to 90 HRA
Description
DNMG150604-PM 4325 Carbide Cutting Tools, Turning inserts,Wear resistant insertsDNMG150604‑PM 4325 Grade Tungsten Carbide Indexable Turning Insert Compatible with Sandviks Coromant For CNC Steel Lathe Turning Machining
DNMG150604-PM 4325 Precision Turning Insert: Elevate Your Machining Performance

Engineered for excellence by Coromant, the DNMG150604-PM 4325 turning insert stands as a premium solution for precision machining of steel and cast iron components. This 55° diamond-shaped insert combines advanced material technology with optimized geometry to deliver exceptional wear resistance, consistent cutting performance, and extended tool life—making it an ideal choice for high-efficiency finishing and semi-finishing operations in automotive, aerospace, and general engineering industries.

Technical Specifications
Parameter Value
Insert Type 55° Diamond Turning Insert
Model DNMG150604-PM 4325
Material Grade 4325 Coated Carbide
Coating Technology CVD TiCN+Al₂O₃+TiN
Corner Radius 0.4 mm
Insert Thickness 6.35 mm
Cutting Edge Length 15.5 mm
Inscribed Circle Diameter 12.7 mm
Hole Diameter 5.16 mm
Applicable Materials Steel, Cast Iron
Recommended Operation Finishing to Semi-finishing
Key Advantages
  • Triple-Layer CVD Coating: The TiCN+Al₂O₃+TiN coating stack provides superior thermal stability (up to 900°C) and wear resistance. The alumina layer features single-crystal orientation technology, significantly reducing flank wear during high-speed machining.
  • Optimized Chip Breaker (PM槽型): The PM chip breaker geometry ensures efficient chip control, preventing chip entanglement and improving surface finish quality (Ra ≤ 0.8 μm) for precision components.
  • High-Strength Carbide Substrate: The 4325 grade substrate offers excellent toughness and抗塑性变形能力, making it suitable for both continuous and light interrupted cutting operations.
  • Cost-Effective Design: With 4 cutting edges and extended tool life, the insert reduces tool change frequency and overall machining costs.
Application Scenarios

Ideal for machining a wide range of steel and cast iron workpieces, including:

  • Automotive components (crankshafts, camshafts, gear blanks)
  • Hydraulic parts (valves, cylinders)
  • General engineering structural parts
  • Cast iron housings and brackets
Usage Recommendations

Recommended Cutting Parameters (for reference only; adjust based on specific workpiece material and machine tool):

  • Cutting Speed (vc): 150-300 m/min (steel), 120-250 m/min (cast iron)
  • Feed Rate (fn): 0.1-0.3 mm/rev
  • Depth of Cut (ap): 0.2-2.0 mm
