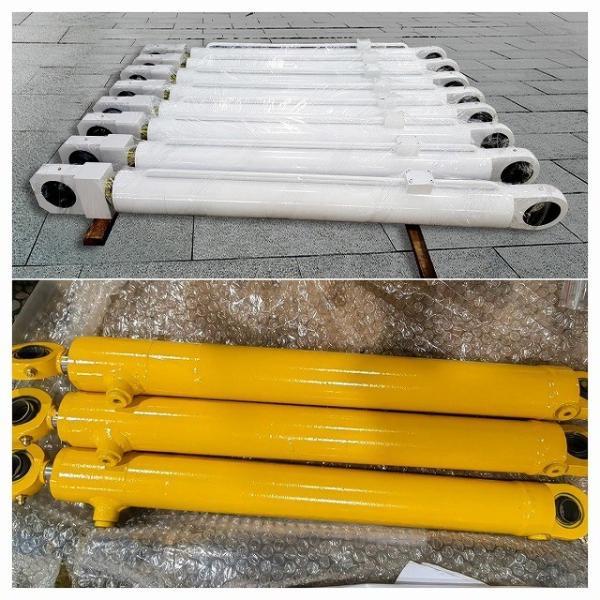

Bore Diameter 90mm Damping Hydraulic Cylinders
Bore Diameter 90mm Damping Hydraulic Cylinders
Bore Diameter 90mm Damping Hydraulic Cylinders
Bore Diameter 90mm Damping Hydraulic Cylinders
Specifications
Brand Name :
EOOE Hydraulic
Model Number :
D90/65-500
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 PCS/Year
Delivery Time :
3 Month
Packaging Details :
Plastic Wrap+Wooden Box
Colour :
White
Oil Cleanness :
NAS 9
Brand of Seals :
Parker
Warranty Time :
12 Month
Presuure Testing Before Delivery :
Test Every Cylinder
Piston Material :
QT400
Function :
Effective way to control the speed of the piston
Hydraulic Medium :
HFC46
Description

Ⅰ. Introduction

Damping Cylinder is an effective way to control the speed of the piston. It works by restricting the exiting flow and ensuring that the incoming flow achieves the maximum pressure. This process can be carried out by changing the area of the orifice and the profile of the cushioning bush.

It can cause a shock wave at the end of its stroke. Cushioning can reduce the shock by reducing the amount of air trapped in the cylinder. The concept is simple: the fluid exits the cap end through a large opening. Fluid then exits through a smaller opening. The air pressure in the cap end is adjusted by a needle valve, and this sets back the pressure in the cylinder. The force created by this movement slows the piston, causing it to stop. This system provides the best cushioning for the cylinder, minimizing the pressure shock in the main hydraulic circuit.

Ⅱ. Parameters

Specification D90/65-500

Application

Steel Mill Factory
Operating Pressure

21 MPa

Piston Rod Treatment

Laser Cladding
