5400 Stroke Hydroelectric Customized Hydraulic Cylinder 25MPa Operating Pressure
5400 Stroke Hydroelectric Customized Hydraulic Cylinder 25MPa Operating Pressure
5400 Stroke Hydroelectric Customized Hydraulic Cylinder 25MPa Operating Pressure
5400 Stroke Hydroelectric Customized Hydraulic Cylinder 25MPa Operating Pressure
Specifications
Brand Name :
EOOE Hydraulic
Model Number :
D320/220-4500
Certification :
ISO9001
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
10000 PCS/Year
Delivery Time :
3 Month
Packaging Details :
Plastic Wrap+Wooden Box
Oil Cleanness :
NAS 9
Quality :
Excellent
Operating Pressure :
25MPa
Warranty :
12 Month
Presuure Testing Before Delivery :
Available
Advantage :
Can be used in harsh environment
Colour :
Blue or as per your requirements
Environment Temperature :
-20℃ - +60℃
Description

5400 Stroke Customized Hydroelectric Cylinder

Ⅰ. Introduction

The hydraulic system consists of a package hydraulic cylinder, an electrical control system, and a mounting bracket. The complete system can share an electrical control device. Each Dam Gates Hoist Hydraulic Cylinder has a displacement sensor. This helps achieve high accuracy in arc gate opening angle and synchronization of the cylinders. The hydroelectric cylinder is designed to operate on low-voltage systems with high-voltage supplies.

The hydraulic power unit comprises a throttle valve, directional valve, and relief valve. The hydraulic cylinders in the Dam Gates Hoist are standard components, which make maintenance simple and cost-effective. Each cylinder is equipped with a displacement sensor, which helps achieve precise arc gate opening angle and synchronizes the operation of the entire system. The electrical control unit typically consists of two sets of cylinders and a PLC to monitor and control the system.

Ⅱ. Parameters

Cylinder Specification D320/220-4500

Application

Water Conservancy Industry
Sealing

Merkel Brand

Piston Rod

Chrome+Nickel Plating

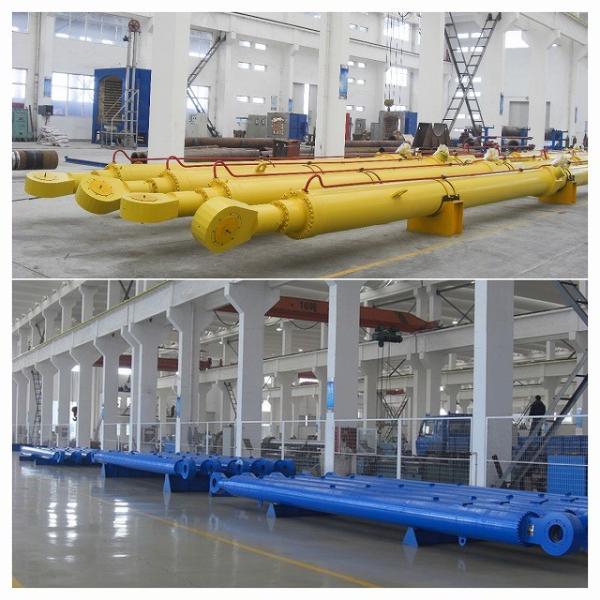

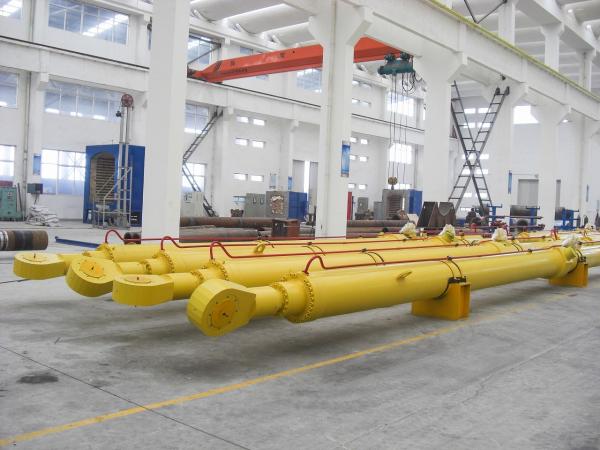

Ⅲ. Picture

5400 Stroke Hydroelectric Customized Hydraulic Cylinder 25MPa Operating Pressure
