Specifications
Brand Name :
CTS battery
Model Number :
215KWh
Certification :
CE/MSDS/UN38.3
Place of Origin :
China
MOQ :
1
Price :
25000~28000USD
Payment Terms :
L/C, D/A, T/T, D/P
Delivery Time :
25~35days
Packaging Details :
wooden case
product name :
industrial commercial energy storage
Energy :
215KWh
Life Cycles :
>6000cycels
Management :
Smart BMS
Ip Level :
IP54
System Warranty :
5 years
Battery Materials :
LiFePO4
applicaiton :
PV-BESS-EV Charging integrated Solution
Description
PV-BESS-EV Charging integrated Solution for EV Charging Station
╣PRODUCT DESCRIPTION
CTS can offer integrated solar-storage-charging solutions that combine solar PV generation, battery storage, and EV chargers for maximum energy efficiency. Whether for home EV charging, commercial parking lots, or industrial facilities, our solution delivers reliability and cost-effectiveness.
All-in-One Energy Solution: Integrated PV panels, battery storage, and EV charger for commercial, and industrial use.
Smart Energy Management: Built-in EMS for self-consumption optimization and intelligent scheduling.
High Efficiency & Safety: Premium PV modules and safe LiFePO4 batteries with advanced BMS.
Energy independence: Solar energy is self-generated and used during the day, reducing dependence on the power grid. Peak shaving and valley filling: The energy storage system charges during thevalley and discharges during the peak, reducing electricity costs. Flexible deployment: Applicable to a variety of scenarios, flexible switching be-tween off-grid and on-grid
Some Parameters of Energy Storage Battery System
(CTS also can offer PV system and EV charging system )
Model
215KWh+100KW/IP54
305KWh+100KW
362KWh+100KW
Battery Energy
215KWh
305KWh
362KWh
PCS Power
100KW
100KW
100KW
MPPT Power
120KW
120KW
120KW
MPPT Range
250~850Vdc(10r 4Channel)
250-850Vdc(1 or 4Channe)
250-850Vdc(1 or 4Channel)
AC Voltage
400V/230V
400V/230V
400V/230V
Protection Level
IP54
IP54
IP54
Parallel Qty.
10
10
10
Diesel Generator Interface
Support
Support
Support
Size(mm)
1580*1050*2090mm
1580*1190*2355mm
1580*1190*2355mm
Weight(kg)
~2500kg
~2930kg
~3230kg
Solar-Storage-Charging Integrated Solution
| PV + Battery Storage + EV Charger

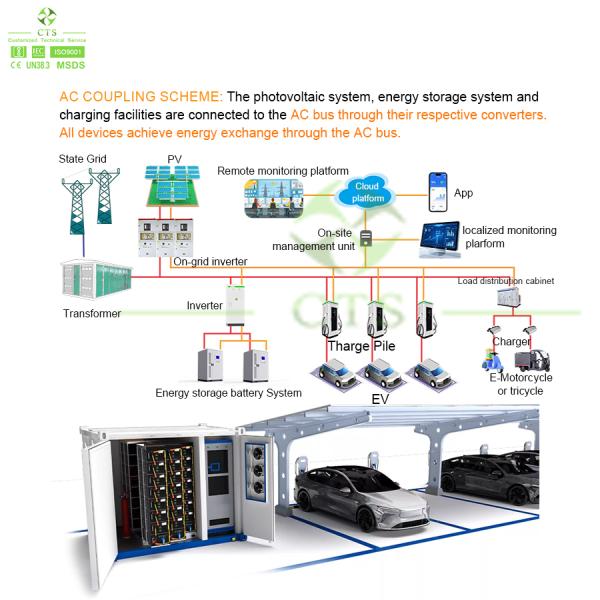

The AC-coupled solution connects the PV system, energy storage system, and charging facilities to a common AC bus through their respective inverters, enabling energy exchange among all devices.
The DC-coupled solution connects the PV system, energy storage system, and DC charging equipment directly to a high-voltage DC bus. By reducing multiple DC/AC conversions, it significantly improves overall system efficiency.
The AC/DC hybrid solution allows the PV system, energy storage system, and DC charging equipment to be selectively connected to their respective AC or DC buses, providing dynamic energy routing.
If you want know more about the whole system, plz click "Chat now"!!
╣PRODUCT ADVANTAGES
1. Reduce costs :
Reducing electricity consumption during the day through photovoltaic power generation Excess electricity can be stored in batteries and used at night or when electricity prices are high Avoid peak electricity prices, achieve peak shaving and valley filling, reduce costs and increase efficiency..

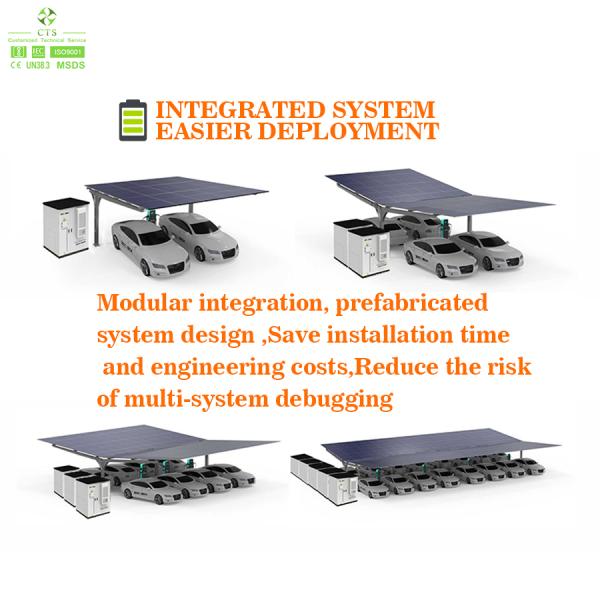

2. Integrated system, easier deployment
Modular integration, prefabricated system design ,Save installation time and engineering costs,Reduce the risk of multi-system debugging.
3. Safe and reliable, intelligent operation and maintenance
Equipped with intelligent EMS system, real-time monitoring and scheduling Multiple protection mechanisms to ensure safe operation of the systemSupport remote fault diagnosis and early warning
4. Relieve grid pressure Distributed power generation + energy storage, reduce dependence on traditional power grids Reduce the grid load risk caused by large-scale simultaneous charging of electric vehicles
╣APPLICATIONS
◆ Industrial and commercial parks
Photovoltaic power generation for self-use during the day, and the remaining power isstored or sold Use the energy storage system to supply power at night or during peak hours
◆Charging stations/power stations
Highway service areas, urban public parking lots Combining photovoltaics and energy storage to solve the problem of grid expansion
◆Off-grid areas
Remote mountainous areas, islands, camps and other areas without electricity or un-stable power supply Provide stable and continuous green power support
◆Smart home/building
Achieve full coverage of "self-generation and self-use + smart energy storage + emergency power supply" for families
Cooperate with energy management systems to improve energy efficiency
╣WHY CHOOSE US ?
* Professional 30+ senior engineers offer 24 hours online service and response within 30 min.
* 10000m² factory, 200 worker, 30 engineers and 4 production line, 1GWH annual production capacity.
* One-stop customized service for 12V to 1000V battery system.
* 100% OQC testing with 25 detection contents.
* 14 years lithium battery designing and production experience.
* ISO9001&IATF16949 certifications to ensure the quality of products.
* Cross-industry battery solution.
* 2 factories in battery manufacturing and R&D.
* Global on-site technical support.
