48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times
48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times
48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times
48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times
48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times
48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times
48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times
48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times
48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times
48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times
48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times
48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times
Specifications
Brand Name :
CTS
Model Number :
48100/48200
Certification :
MSDS/UN38.3
Place of Origin :
Hunan, China
MOQ :
2
Price :
580-1150
Payment Terms :
T/T,Western Union,MoneyGram
Supply Ability :
3000 units per month
Delivery Time :
25 working days
Packaging Details :
Wooden case
Nominal voltage :
51.2V
Nominal capacity :
100Ah/200Ah/280Ah
Cycle Life :
6000 Times
OEM/ODM :
Acceptable
Battery cells :
Lifepo4
Advantage :
Scalability

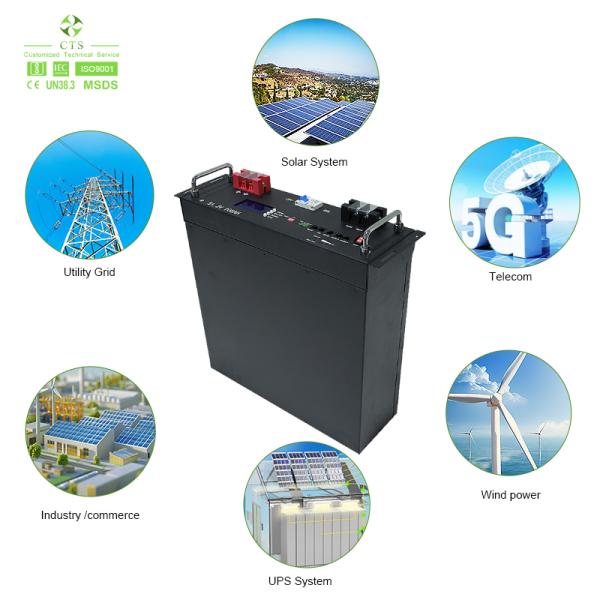

Application :
Energy storage system
Warranty :
3 Years
Description

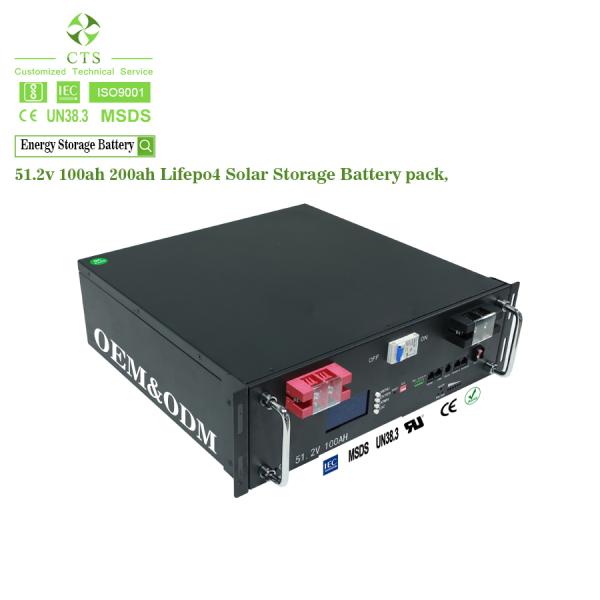

51.2V 100Ah 200Ah Lithium Ion Battery Pack 48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power


48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times

Expandable, plug-and-play backup power supply for home and office.

Product Description

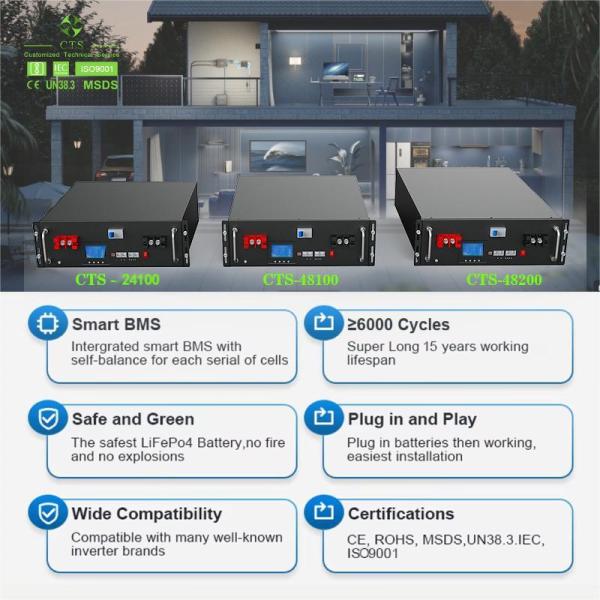

Three modules available


MODEL
CTS4850R
CTS48100R
CTS48200R
ELECTRICAL SPECIFICATIONS
Cell Type - Chemistry
LiFePO4
LiFePO4
LiFePO4
Rated Capacity
50Ah
100Ah
200Ah
Rated Voltage
51.2V
51.2V
51.2V
Energy
2.56kWh
5.12kWh
10.24kWh
MECHANICAL SPECIFICATIONS
Dimensions (L x W x H)
442*410*133mm
442*435*155mm
442*820*155mm
Weight
28Kg
48Kg
82Kg
DISCHARGE SPECIFICATIONS
Discharge Cut-off Voltage
40V
40V
40V
Max Continuous Discharging Current
50A
100A
150A
Recommended Disharge Current
25A
50A
100A
CHARGE SPECIFICATIONS
Charging Limited Voltage
57.6V
57.6V
57.6V
Max Charging Current
50A
100A
150A
Recommended Charge Current
25A
50A
100A
Working Temperature Range
Charge: 0~45℃
discharge : -20~60℃
Recommended Operating Temperature
15~35℃
Recommended Storage Temperature & Humidity Range
15~35℃, 45~75%RH


Support 15 parallel connections
Meet the power consumption of different houses


48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times

Detailed design


48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times

How to connect batteries with the inverter and MPPT?


48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times

Five exclusive designs


48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times

48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times

1. 3% power over specification
A+++ battery, buy 100Ah, you will get 103Ah
2. Internal protection
The ABS bracket is higher than the busbar to prevent impact/heavy objects from falling on top of the metal cover.


48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times

48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times

3. Comprehensive monitoring
4 temperature sensors and 16 voltage sensors per battery are controlled by BMS
4. Double strong connection
Double strong connection busbar adopts screw connection and laser welding, double insurance

5. Read battery infomation on the computer
Using RJ45 cable, you can read battery information on the computer through RS485 interface. Information includes battery voltage, total voltage, battery temperature, SOC, etc.

48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times



48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times
CTS
Other
Plastic holder
1.We use customized plastic holder between each cells for better insulation, so when the operator install batteries, there will be no danger
No holder between cell, insulation need to be concerned
Unblocked explosion-proof valve
2.The explosion-proof valve is not blocked, the physical structure safety of the cell is ensured
Both has blocked explosion-proof valve, not meet the cell safety using requirements
BMS with cover
3.BMS is well protected by metal cover, prevent damage for shock
No cover on both BMS
Laser welding+Screws
4. We use laser welding around the srew to further strengthen the connection to completely eliminate the risk of screw falling. Laser welding also reduce the contact surface between the screw and the bus bar to enhance current capability. This laser welding can also reduce internal resistance and reduce power consumpution. The user can get more power
First has untidy welding, big risk of damage cables, second only srews.
Orderly cable arrangement
5. Orderly cable arrangement can reduce poor connector contact, short circuit and open circuit between wires
lack of standardization, cables go through basbar in the first, disorder cables in the second

Company Profile


48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times
● Professional 30+ senior engineers offer 24 hours online service and response within 30 min.
● 10000m² factory, 200 worker, 30 engineers and 4 production line, 1GWH annual production capacity.
● 100% OQC testing with 25 detection contents.
● 14 years lithium battery designing and production experience.
● ISO9001 &IATF16949 certifications to ensure the quality of products.
● Global on-site technical support.

Hunan CTS Technology Co., Ltd. is an ISO 9001 and IATF 16949 certified manufacturer specializing in the R&D, production and sale of lithium battery packs since 2011.

With 10000m² factory, 200 worker, 30 engineers and 4 production line, CTS focuses on customizing batteries for middle-to-high-end markets with 1GWH annual production capacity. CTS batteries are widely used in 200+ electrification applications, including all kinds of electric vehicles, electric boats, electric motorcycles, energy storage systems.

Guided by the principle of "Customers First, Quality is Life", CTS strictly follows 5S factory management standard in every detail of production, ensuring that each battery undergoes 100% OQC testing with 25 detection contents.

CTS batteries are certified with R100, IEC 62619, CE,MSDS and UN38.3 and trusted by customers in 30+ countries and regions.

Together, we can lead the new energy revolution and support global zero-emission efforts!



Product testing and shipping
1. Cartons and foam packaging to ensure safety in different modes of transportation
2. 100% inspection before shipment to ensure quality control
3. MSDS and UN38.3 certification to ensure customs declaration and clearance during transportation
4. On-site customs inspection to ensure battery safety

48V 280Ah Solar Energy Storage Batteries for Office Home Backup Power OEM/ODM Acceptable and Long Cycle Life 6000 Times
