Bluetooh 185psi TPMS Tire Pressure Sensors Low Energy
Bluetooh 185psi TPMS Tire Pressure Sensors Low Energy
Bluetooh 185psi TPMS Tire Pressure Sensors Low Energy
Bluetooh 185psi TPMS Tire Pressure Sensors Low Energy
Bluetooh 185psi TPMS Tire Pressure Sensors Low Energy
Bluetooh 185psi TPMS Tire Pressure Sensors Low Energy
Bluetooh 185psi TPMS Tire Pressure Sensors Low Energy
Bluetooh 185psi TPMS Tire Pressure Sensors Low Energy
Specifications
Brand Name :
CSPPM
Model Number :
BSE-09T
Certification :
CE
Place of Origin :
China
MOQ :
4
Packaging Details :
Standard package
Working Voltage :
1.8V~3.6V
Working Humidity :
95% MAX
Working Current :
< 18 mA
Tire Pressure Monitoring Range :
0 ~ 185psi (0 ~ 1280kPa)
Tire Temperature Monitoring Range :
- 40℃ ~ 105℃
Battery Capacity :
345 mAh (CR2050)
Description

Commercial Vehicle - Multi Wheels Bluetooh Low Energy Tire Pressure Monitoring System

Products Description
BSE-09T
Commercial Vehicle - Multi Wheels Bluetooh Low Energy Tire Pressure Monitoring System
Product Paramenters
1.8Working Voltage
1.8V~3.6V
Working Humidity
95% MAX
Working Current
< 18 mA
Storage Temperature
- 40℃ ~125℃
Working Temperature
- 20℃ ~ 105℃
Tire Pressure Monitoring Range
0 ~ 185psi (0 ~ 1280kPa)
Tire Temperature Monitoring Range
- 40℃ ~ 105℃
RF Frequency
2.4 GHz
RF Power
8 dBm MAX
Battery Life
>3 years (12hrs/day)
Battery Capacity
345 mAh (CR2050)
Sensor Weight
< 16.5g ± 0.5g (including battery)

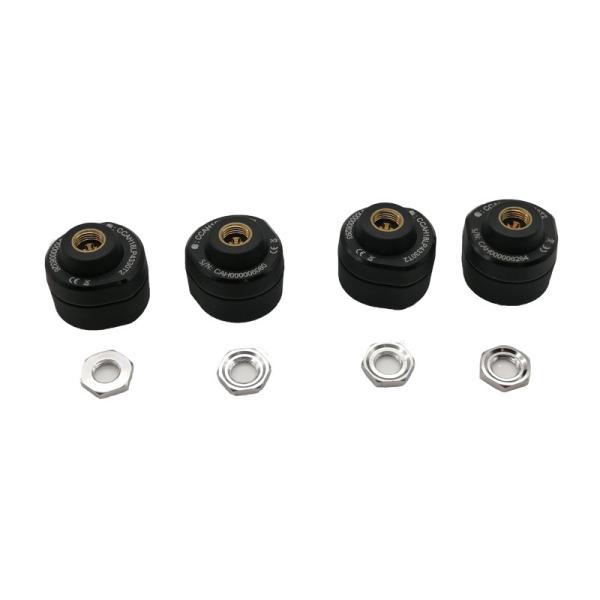

installation Accessories:

Installation

Accessories

BLE TPMS Sensor Accessories

Bluetooh 185psi TPMS Tire Pressure Sensors Low Energy Bluetooh 185psi TPMS Tire Pressure Sensors Low Energy Bluetooh 185psi TPMS Tire Pressure Sensors Low Energy

Wrench

It is suggested to leave the wretch in the vehicle.

Installation steps:

Bluetooh 185psi TPMS Tire Pressure Sensors Low Energy

Rotate Lock-Nut into bottom of valve.

Bluetooh 185psi TPMS Tire Pressure Sensors Low Energy

Bluetooh 185psi TPMS Tire Pressure Sensors Low Energy

Rotate Sensor to valve until no air leakage and lock.

Use wrench to reverse tighten Lock-Nut onto the Sensor.

Bluetooh 185psi TPMS Tire Pressure Sensors Low Energy Bluetooh 185psi TPMS Tire Pressure Sensors Low Energy

Lock-Nut Counter clockwise

Bluetooh 185psi TPMS Tire Pressure Sensors Low Energy

Apply soap water on valve stem nut to check whether produce
bubble and air leakage. No bubbling means correct installation.
In case there is bubbling, please re-install according to the
procedure.
Bluetooh 185psi TPMS Tire Pressure Sensors Low Energy
