Specifications
Brand Name :
CSPPM
Model Number :
PPM-T9101
Certification :
CE
Place of Origin :
China
MOQ :
1 PCS
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
1000 pcs per month
Delivery Time :
5-8 working days
Packaging Details :
Standard export packing, including instructions and certificate
Pressure range :
0 ~ 250 MPa
Accuracy :
0.5%FS
Absolute source impedance (250VDC) :
50M Omega
Long term stability (1 year) :
+ 0.25%Span
Overload pressure :
1.5Double full range
Destructive pressure :
5Double full range
Compensation temperature :
-20 ~ 85 C
working temperature :
-40 ~ 85 C
Storage temperature :
-40 ~ 85 C
Protection level :
IP65 Wireless Coaxial Transmitter and Receiver
Description

Product Introduction:

Metal strain-type pressure transmitter adopts high-strength stainless steel elastomer as the substrate. It uses mature strain gauge technology and is fully welded and sealed in a stainless steel housing. It has a wide applicable temperature range; good long-term stability, low power consumption, small hysteresis error, and repeat Good sex and other characteristics. It is resistant to frequent vibration and shock, and it is overloaded by more than 5 times of pressure. Dimensions can be customized.

Applications :

Petroleum, chemical, water conservancy, metallurgy, power
Light industry, textile, building materials, hydrogeology, Food, medicine,

environmental protection and other industries , Pressure measurement of gas,

liquid and steam in industrial field monitoring and control.

Technical Parameters :

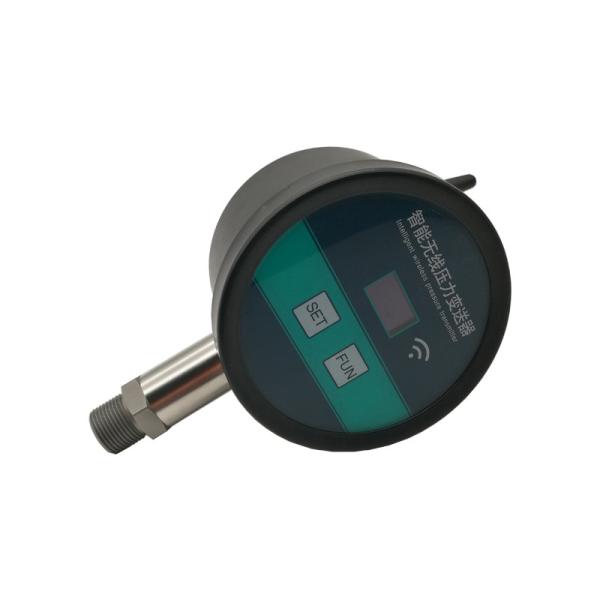

Product Name Fire Fighting OLED 0.96 inch ultra low power display Wireless Pressure Gauge
PARAMETERS VALUES
Accuracy (including nonlinearity, hysteresis and repeatability) 0.5%
Long term stability (1 year) + 0.25%Span
Absolute source impedance (250VDC) 50M Omega
Overload pressure 1.5Double full range
Destructive pressure 5Double full range
Compensation temperature -20 ~ 85 C
working temperature -40 ~ 85 C
Storage temperature -40 ~ 85 C
Protection level IP65
Power supply 3.6V high energy lithium battery
Display

OLED 0.96 inch ultra low power display
Sending interval 1min ~ 9999min can be set
Project content Parameter index
Accuracy (including nonlinearity, hysteresis and repeatability) 0.5%
Long term stability (1 year) + 0.25%Span

Definition of wiring:

Direct outgoing
2-wire system 3-wire system
Liquid-Fillable, Industrial Stainless Steel Pressure Gauges Power supply red red
Negative power black black
Signal positive 一 green

Dimensions in mm :
