Specifications
Brand Name :
HUAFANG
Model Number :
HF-918/B1
Certification :
CE/IOS9001/UDEM
Place of Origin :
China
MOQ :
One
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
300 sets/month
Delivery Time :
30 Work Days
Packaging Details :
Wooden Box
Computerized :
Yes
weight :
615kg
knitting Style :
Warp
Knitting Width :
918mm
Voltage :
380V/220V
Knitting Method :
Single Phase
Description

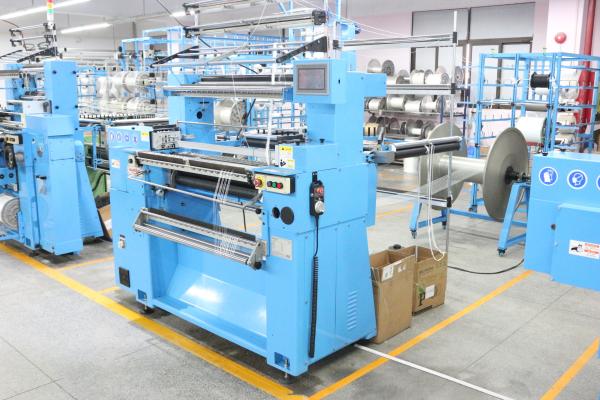

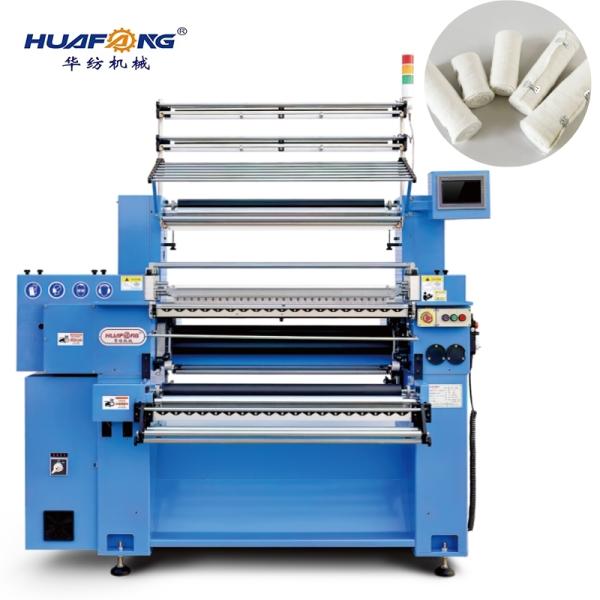

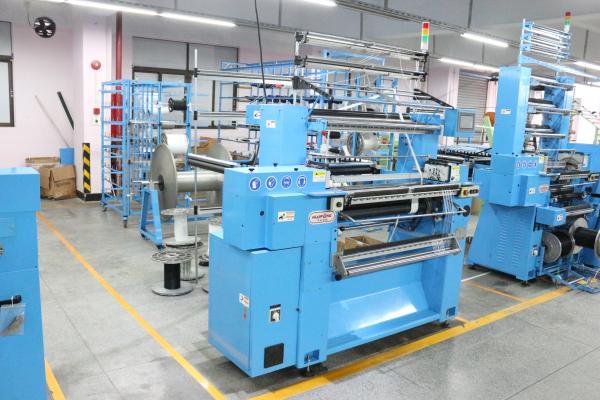

Overview of HF - 918B1 Medical - specific Equipment

The HF - 918B1 medical - specific equipment is designed for the production of medical textile accessories, combining rich configurations with diverse process solutions to meet different production needs.

Standard Configuration

The operating width is 918mm. There are options of 15 needles (540 needle positions), 18 needles (630 needle positions), 20 needles (720 needle positions) and 24 needles (840 needle positions). The number of weft yarn bars is 3. For power, the main drive motor is a 3.8KW servo motor, and the take - up, rubber thread feeding and spandex motors are each 0.75KW servo motors. It is also equipped with 1 set each of single - layer elastic rubber thread conveyor, rear weft elastic rubber thread stable conveyor, single - roller glue roll tape - falling frame, and a set of three - color indicator lights for indicating normal startup, yarn breakage and shutdown status. The working voltage is 220V, the speed ranges from 0 - 2000 revolutions per minute, the net weight is 650KG, and the dimensions are 2M × 1.05M × 2.15M.

Single Phase Knitting Method 615kg Customized Medical Textile Accessories With Tailored Configurations ProcessesSingle Phase Knitting Method 615kg Customized Medical Textile Accessories With Tailored Configurations Processes

Key Points

  • Strong Adaptability: It can produce 5 pieces of 140mm - wide webbing simultaneously and support multi - needle production from 15 - 24 needles.
  • Process Selection: Choose the large bobbin solution for low - cost and space - saving; choose the large yarn stand solution to reduce equipment investment; choose the small bobbin solution for small - batch and flexible production.
  • Medical Scenarios: The large bobbin solution more is suitable for the production of medical webbing with high - stability requirements due to its low manual intervention and low loss rate. Overall, the HF - 918B1 provides a comprehensive and flexible solution for the production of medical textile accessories.
