Industrial Grade Multifunctional Crochet Weaving Machine For Cotton Yarn Fabrics
Industrial Grade Multifunctional Crochet Weaving Machine For Cotton Yarn Fabrics
Industrial Grade Multifunctional Crochet Weaving Machine For Cotton Yarn Fabrics
Industrial Grade Multifunctional Crochet Weaving Machine For Cotton Yarn Fabrics
Industrial Grade Multifunctional Crochet Weaving Machine For Cotton Yarn Fabrics
Industrial Grade Multifunctional Crochet Weaving Machine For Cotton Yarn Fabrics
Industrial Grade Multifunctional Crochet Weaving Machine For Cotton Yarn Fabrics
Industrial Grade Multifunctional Crochet Weaving Machine For Cotton Yarn Fabrics
Industrial Grade Multifunctional Crochet Weaving Machine For Cotton Yarn Fabrics
Industrial Grade Multifunctional Crochet Weaving Machine For Cotton Yarn Fabrics
Specifications
Brand Name :
HUAFANG
Model Number :
HF-918/B3
Certification :
CE/IOS9001/UDEM
Place of Origin :
China
MOQ :
One
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
300 sets/month
Delivery Time :
30 Work Days
Packaging Details :
Wooden Box
knitting Style :
Warp
Knitting Method :
Single Phase
Computerized :
Yes
Gauge :
15GG, 20GG, 24GG
Knitting Width :
918mm
Voltage :
220V/380V
Description

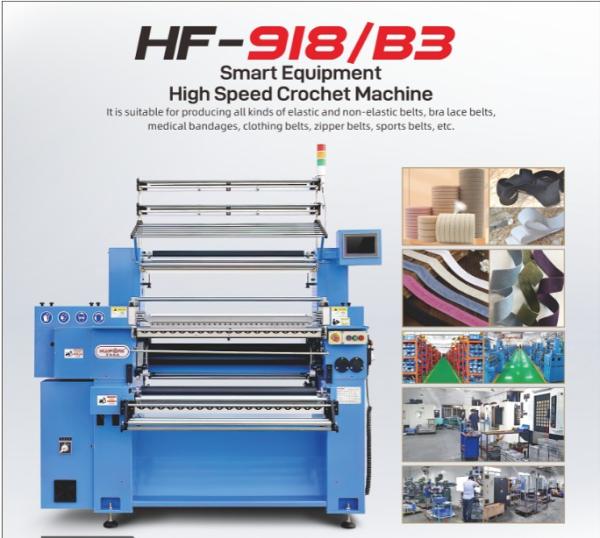

HF-918/B3 Smart High-Speed Crochet Machine – Precision Weaving, Efficient Production
The HF-918/B3 is a professional industrial-grade crochet machine, engineered to excel in diverse textile production scenarios. It specializes in manufacturing a wide range of products, including elastic/non-elastic belts, lace belts, medical bandages, bra straps, and clothing belts—meeting both functional and decorative textile needs.
Core Advantages:
Stable & Efficient Operation: With a unique structural design, it achieves high-speed operation (1200-1400 rpm) while maintaining low noise and zero oil leakage, ensuring a smooth, clean production environment. Its robust stability minimizes vibration during long-term use, laying the foundation for consistent product quality.
Flexible Weaving Capabilities: Equipped with 8/11 weft rods and a 12/50 pattern chain cycle, it supports diversified fabric patterns. The independent pattern plate combination design adapts to various needle counts, allowing quick pattern adjustments according to fabric structure requirements—ideal for both mass production and small-batch customization.
Intelligent Design for Ease of Use: The weft density transmission system, composed of precision sprockets and chains, works with a layered warp management device (weft density range: 5-25) to simplify operation and save setup time. A two-stage rubber feeding roller ensures stable rubber tension, avoiding uneven stretching.
Durable & Low-Maintenance: An independent oil supply system precisely lubricates key components, extending the machine’s service life while reducing maintenance frequency. Its industrial-grade build withstands high-intensity production, lowering long-term operational costs.
Technical Specifications:
Operating width: 918mm
Needle count: 15 inches
Motor power: 1.5kW

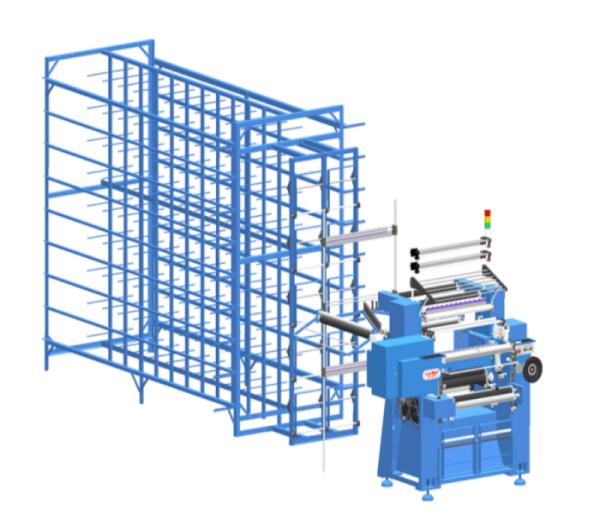

Standard configuration: Double-sided finished product conveyor, rubber feeding device, head frame, yarn frame
Optional devices: Adjustable positive warp conveyor, warp disc, double-tooth edge device
From functional textiles like medical bandages to decorative accessories like lace belts, the HF-918/B3 balances precision, efficiency, and flexibility—making it an essential asset for textile enterprises aiming to expand product lines and enhance competitiveness.
Our Product Range:
Textile machinery: Crochet machines, weaving machines, knitting machines, braiding machines, elastic band machines, warping machines
Accessories: Weaving machine accessories, crochet machine accessories, general textile machine parts
Supporting equipment: Packaging machines
For inquiries or customization needs, please contact us for detailed specifications.
