Manual curved edge bander with 10-50mm panel thickness 0.3-3mm edge band thickness and 20mm min working radius for stable edge banding
Manual curved edge bander with 10-50mm panel thickness 0.3-3mm edge band thickness and 20mm min working radius for stable edge banding
Specifications
Description

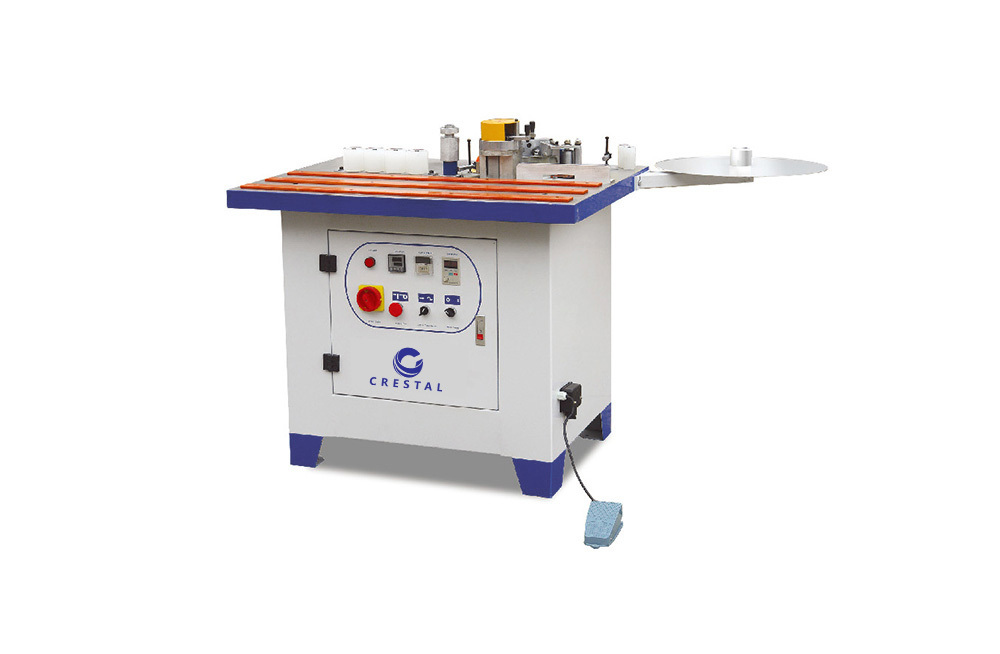

Manual Curved Edge Bander
Product Overview

This manual edge banding machine is designed for professional furniture manufacturing applications, offering reliable performance for both straight and curved edge operations.

Applications
  • Medium density fiber board (MDF)
  • Block board
  • Wood panels
  • Particleboard
  • Plywood
  • Polymer doors
Key Features
  • Stable and reliable operation for both straight and curved edges
  • Durable construction for long-term performance
  • Affordable pricing for cost-effective manufacturing
  • Ideal for large and medium-sized furniture and cabinet manufacturers
Technical Specifications
Parameter Specification
Panel Thickness 10-50mm
Edge Band Thickness 0.3-3mm
Minimum Working Radius 20mm
Heating Power 1.6kW
Feeding Speed 0-14m/min
Air Pressure 0.6MPa
Voltage 380V, 50Hz
Total Power 1.78kW
Overall Dimensions 1400 × 800 × 1100mm
Net Weight 150kg
