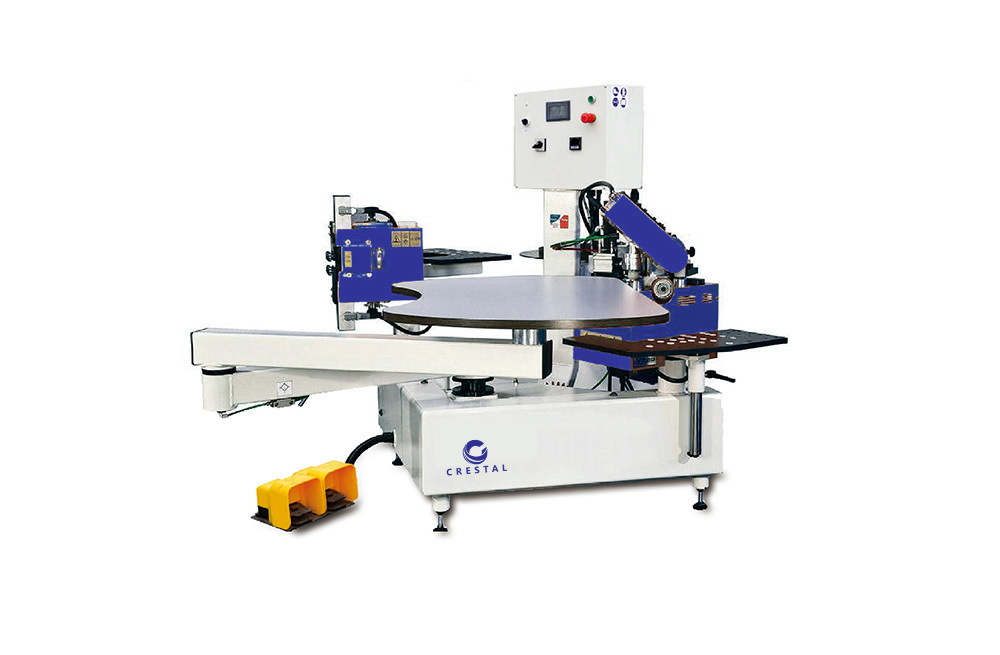

Automatic Curved Edge Bander with PUR and EVA Glue Pot 2600ml Volume and 0-30cm/s Feeding Speed
Automatic Curved Edge Bander with PUR and EVA Glue Pot 2600ml Volume and 0-30cm/s Feeding Speed
Specifications
Description
Automatic Curved Edge Bander
Product Features
  • Curved board automatic feeding, suitable for round, oval, and rounded rectangle shapes
  • Infrared distance measurement with accurate docking (±0.3mm error), high precision, no manual operation required
  • Upper glue pot design compatible with PUR and EVA adhesives, one-key glue discharge for easy operation
  • Servo motor for fast action response, low noise, and excellent machine stability
  • Feeding speed 0-30cm/s for high working efficiency
  • Four automatic cleaning devices with adjustable spray time and intervals
  • 2600ml glue pot capacity with insulation function, reducing heating wait time
  • Trimming unit with upper and lower trimming, flexible flat scraping device, no secondary processing required
  • 2L pressure storage tank ensures normal operation during external air pressure fluctuations
  • Touch screen stores 20 form data types for easy operation and improved efficiency
Technical Parameters
Voltage 380V/50HZ/3phase
Total Power 6.5KW
Edge Banding Speed 0-30cm/s
Air Pressure 0.6-0.8Mpa
Vacuuming φ150mm
Glue Pot Temperature 110ºC-210ºC
Tank Capacity 2L
Glue Material PUR/EVA
Glue Pot Volume 2600ml
Strip Thickness 0.5-3mm
Trimming 14-70mm both sides trimming, <14mm single trimming
Strip Width 12-70mm
Size 1870×1400×1530mm
