Specifications
Model NO. :
JZ-326B Pro
Testing Equipment Type :
Car Fault Detector
Certification :
CE, ISO
Update Method :
by Internet
Condition :
New
Standard :
Standard
Motor Power :
7.5 Kw
Power :
380V AC 3-Phase-4-Wire
Rail Pressure :
0-2700 Bar
Rail Pressure Precision :
5 Bar
Filter Precision :
< 5 Um
Diesel Tank Volume :
40 L
Fuel Temperature :
38-42 'c
Net Weight :
750 Kg
Metering Way :
Gear Flow Sensor
Transport Package :
Wooden Board
Specification :
1730*1250*1720 mm
Trademark :
JZHY
Origin :
Wuxi City, Jiangsu, China
HS Code :
9031200090
Production Capacity :
1500 Pieces/Year
MOQ :
1
Price :
10000
Description
Product Introduction

JZ-326B PRO common rail injector test bench adopts full automatic control, which can conveniently repair and test Euro-3, Euro-4,Euro-5,Euro-6 injectors.
It can test thousands of injectors. The experimental data are complete.

Jz-326b PRO High Pressure Common Rail 4 - 6 Injector Same Time Test Bench
Jz-326b PRO High Pressure Common Rail 4 - 6 Injector Same Time Test Bench
Jz-326b PRO High Pressure Common Rail 4 - 6 Injector Same Time Test Bench


Standard Functions:



Test common rail injector
Test piezoelectric injector
Test 4-pin,6-pin,Heavy Engine injector
Test the oil injection and return of 4 injectors simultaneously and generate the code at the same time
Remote software upgrade,data update



Coding Function:



Generate 7/8/9//10 digital IQA code
Generate piezo IMA ISA code
Generate 16/22/24/26/30/32 digital code
Generate C2i,C3i,C4i code
Generate IIC code
Generate XPI code



Hardware Configuration:



8 flow meters
CP4 common rail pump

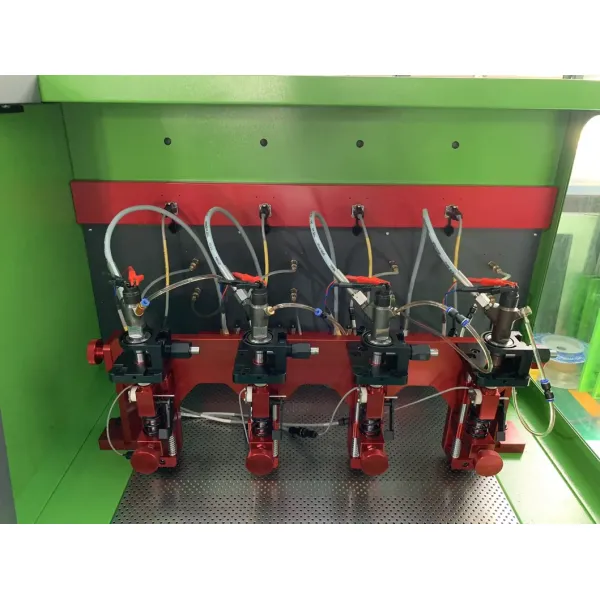

4 sets of pneumatic fixture,compatible with internal/external injectors

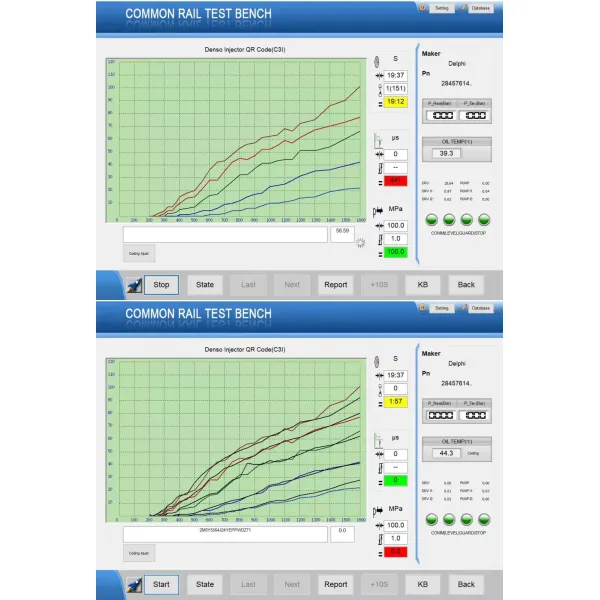

19 Inch industrial computer,touch screen and keyboard dual mode operation



Jz-326b PRO High Pressure Common Rail 4 - 6 Injector Same Time Test Bench


Technical Parameters

Technical Parameters
   Model Number    JZ-326B PRO
   Color    Green
   Frequency    50Hz / 60Hz
   Speed    0~2000 RPM
   Speed Control Mode    Frequency Converter
   Main Output    7.5 KW
   Oil Tank Cooling Output    105 Watts
   Power    380V AC 3-Phase-4-Wire
   Heating/Cooling    Air Conditioning (2P)
   Diesel Tank Volume    40L Filtration :3μm
   Fuel Temperature    40ºC ± 2ºC
   Nozzel Flow Sensor    Gear Flow Sensor
   Flow Metering Unit    0.008~2L /min
   Control Return Voltage    DC 12V  DC 24V
   ECU Internal Boost    0-200 VDC(max)
   Max CR Pressure    2700 Bar
   Rail Pressure  Accuracy    ±5 Bar
   Injection Frequency    400-6000 n/M
   Pulse Width    100-3000 μs
   Noise level    <85dB
   Machine Dimension    1640*1300*1550MM
   Packing Dimension    1730*1250*1720MM
   Net Weight    750KG
   Gross Weight    837KG
