Specifications
Certification :
CE, ISO
MOQ :
1
Price :
30000
Model NO. :
JZ-825 PRO
Filter Precision :
< 5 Um
Fuel Temperature :
38-42 C
Power :
3-Phase 4-Wire 380V 50/60Hz
Rail Pressure :
0-2700 Bar
Rail Pressure Precision :
5 Bar
Tank Volume :
40 L
Net Weight :
1200 Kg
Dimensions :
2580*1500*2210
Frequency :
50Hz / 60Hz
Main Output :
45 KW
Speed :
0~4000 RPM
CR Pump Motor Output :
5.5 KW
Diesel Supply Motor Output :
0.75 KW
Engine Oil Pump Motor Output :
0.55 KW
Description
JZ-825 PRO Giant Diesel Common Rail High Pressure Smart HEUI EUI EUP Injector Heavy Lifter Machine Pump Diagnostic Test Bench

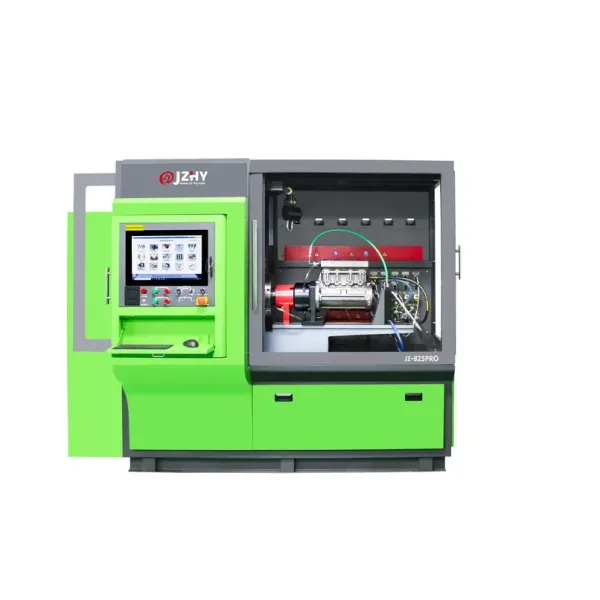

The JZ-825 PRO multi-function test bench features full automatic control for convenient repair and testing of Euro-3 to Euro-6 injectors and high-pressure pumps. This advanced system can test thousands of injectors and high-pressure pumps with comprehensive experimental data collection.
Optional functions include unit pumps & unit injectors, medium pressure injectors testing, actuated pumps, and more. Designed primarily for heavy engines used in vessels, excavators, lifters, and similar applications, the machine includes an integrated crane for handling heavy pumps safely.
Jz-825 PRO Giant Diesel Common Rail High Pressure Smart Heui Eui Eup Injector Heavy Lifter Machine Pump Diagnostic Test Bench
Key Functions & Capabilities
  • EUl & EUP testing capability

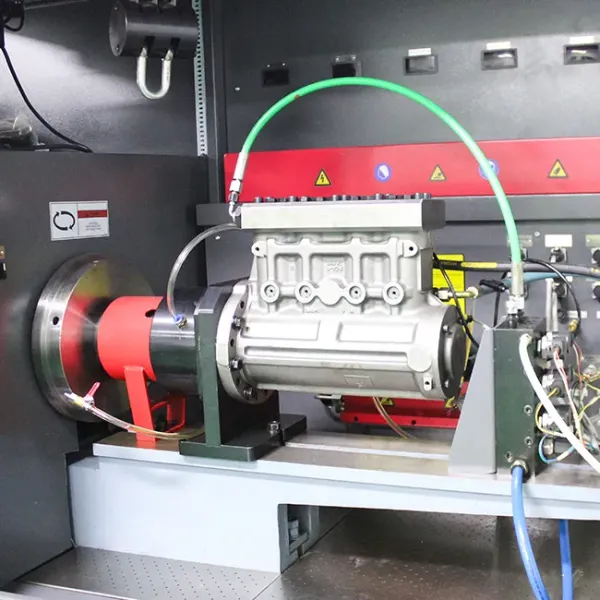

  • Common rail high pressure oil pump testing
  • HEUI injector testing
  • HEUI actuation pump testing
  • Solenoid valve injector testing
  • Piezoelectric ceramic injector testing
  • 4-pin injector testing (optional)
  • 4-cylinder common rail oil pump testing (optional)
  • X15, Q60 single pump testing (optional)
  • Remote upgrade, system update, and technical guidance
  • Simultaneous testing of 6 injectors (optional)
  • HPI Actuator testing (optional)
  • Electronic measuring system

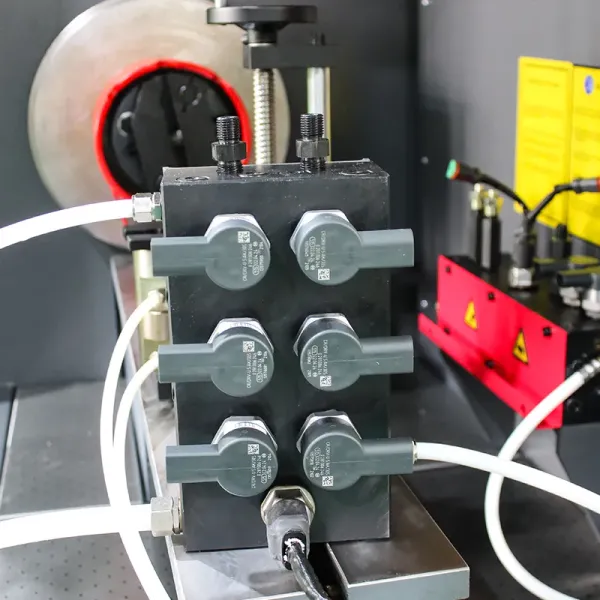

  • Eight DRV configuration
  • Oil level lowest limit alarm
  • Imported flow sensor technology
  • Oil nozzle opening pressure flow measurement
  • Flow sensor linear calibration
  • Common rail with filter function
  • High pressure filter blockage reminder
  • 9 flow sensor metering units
  • Jet drive and system voltage monitoring
  • Internal integrated oil actuated pump and high pressure common rail pump
  • Expandable operating room without switching
  • Simultaneous testing of 4-6 injectors (non-rotation solenoid valve switching)
Product Details
Jz-825 PRO Giant Diesel Common Rail High Pressure Smart Heui Eui Eup Injector Heavy Lifter Machine Pump Diagnostic Test Bench Jz-825 PRO Giant Diesel Common Rail High Pressure Smart Heui Eui Eup Injector Heavy Lifter Machine Pump Diagnostic Test Bench Jz-825 PRO Giant Diesel Common Rail High Pressure Smart Heui Eui Eup Injector Heavy Lifter Machine Pump Diagnostic Test Bench Jz-825 PRO Giant Diesel Common Rail High Pressure Smart Heui Eui Eup Injector Heavy Lifter Machine Pump Diagnostic Test Bench
Technical Specifications
Model Number JZ-825 PRO
Color Green
Frequency 50Hz / 60Hz
Motor Height 180 MM
Main Output 45 KW
Speed 0~4000 RPM
Speed Control Mode Frequency Converter
CR Pump Motor Output 5.5 KW
Diesel Supply Motor Output 0.75 KW
Engine Oil Pump Motor Output 0.55 KW
Oil Tank Cooling Output 370 Watts
Power 380V AC 3-Phase-4-Wire
Cooling/Heating Air Conditioning (5P)
Diesel Tank Volume 120L Filtration Accuracy:3μm
Engine Oil Tank Volume 40L Filtration Accuracy:5μm
Fuel Temperature 40ºC ± 2ºC
Nozzel / Pump Flow Sensor Gear Flow Sensor
Flow Metering Unit 0.008~2L /min
Control Return Voltage DC 12V / DC 24V
ECU Internal Boost 0-200 VDC(max)
Max Common Rail Pressure 2700 Bar
Rail Pressure Testing Accuracy ±5 Bar
Max Medium Common Rail Pressure 250 Bar
Diesel Oil Supply Pressure 0~2.5 Mpa
Oil Supply Pressure 0~2.5 Mpa
Injection Frequency 400-6000 n/M
Pulse Width 100-3000 μs
Machine Dimension 2510*1410*1960 MM
Packing Dimension 2580*1500*2210 MM
Net Weight 1682 KG
Gross Weight 1934 KG
Testing Scope
Jz-825 PRO Giant Diesel Common Rail High Pressure Smart Heui Eui Eup Injector Heavy Lifter Machine Pump Diagnostic Test Bench Jz-825 PRO Giant Diesel Common Rail High Pressure Smart Heui Eui Eup Injector Heavy Lifter Machine Pump Diagnostic Test Bench Jz-825 PRO Giant Diesel Common Rail High Pressure Smart Heui Eui Eup Injector Heavy Lifter Machine Pump Diagnostic Test Bench
