Specifications
Model Number :
H9HCNNN4KMMLHR
Certification :
Original Parts
MOQ :
1 package
Price :
Negotiation
Payment Terms :
T/T, PayPal, Western Union, Escrow and others
Supply Ability :
6000pcs per month
Delivery Time :
3-5 work days
Packaging Details :
10cm X 10cm X 5cm
Item number :
H9CCNNN8JTALAR
Package :
BGA178
Org. :
X32
Density :
8GB
Vol: :
1.8V-1.2V-1.2V
Speed :
T/U
Description

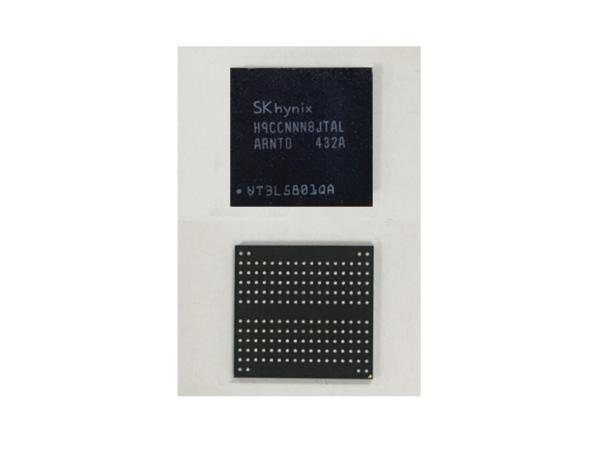

DRAM Memory Chip H9CCNNN8JTALAR 8Gb LPDDR3 BGA178 Memory Chip Storage​

H9CCNNN8JTALAR

Features:

[ FBGA ]

  • Operation Temperature
    - -30'C ~ 105'C
  • Packcage
    - 178-ball FBGA
    - 11.0x11.5mm2, 1.00t, 0.65mm pitch
    - Lead & Halogen Free

[ LPDDR3 ]

  • VDD1 = 1.8V (1.7V to 1.95V)
  • VDD2, VDDCA and VDDQ = 1.2V (1.14V to 1.30)
  • HSUL_12 interface (High Speed Unterminated Logic 1.2V)
  • Double data rate architecture for command, address and data Bus;
    - all control and address except CS_n, CKE latched at both rising and falling edge of the clock
    - CS_n, CKE latched at rising edge of the clock
    - two data accesses per clock cycle
  • Differential clock inputs (CK_t, CK_c)
  • Bi-directional differential data strobe (DQS_t, DQS_c)
    - Source synchronous data transaction aligned to bi-directional differential data strobe (DQS_t, DQS_c)
    - Data outputs aligned to the edge of the data strobe (DQS_t, DQS_c) when READ operation
    - Data inputs aligned to the center of the data strobe (DQS_t, DQS_c) when WRITE operation
  • DM masks write data at the both rising and falling edge of the data strobe
  • Programmable RL (Read Latency) and WL (Write Latency)
  • Programmable burst length: 8
  • Auto refresh and self refresh supported
  • All bank auto refresh and per bank auto refresh supported
  • Auto TCSR (Temperature Compensated Self Refresh)
  • PASR (Partial Array Self Refresh) by Bank Mask and Segment Mask
  • DS (Drive Strength)
  • DPD (Deep Power Down)
  • ZQ (Calibration)
  • ODT (On Die Termination

H9CCNNN8JTALAR 8Gb Ram Memory For Desktop Computers  LPDDR3  BGA178   Storage
