Automatic Servo Piston Filling Capping Labeling Line for Shampoo Cream Lotion
Automatic Servo Piston Filling Capping Labeling Line for Shampoo Cream Lotion
Automatic Servo Piston Filling Capping Labeling Line for Shampoo Cream Lotion
Automatic Servo Piston Filling Capping Labeling Line for Shampoo Cream Lotion
Automatic Servo Piston Filling Capping Labeling Line for Shampoo Cream Lotion
Automatic Servo Piston Filling Capping Labeling Line for Shampoo Cream Lotion
Automatic Servo Piston Filling Capping Labeling Line for Shampoo Cream Lotion
Automatic Servo Piston Filling Capping Labeling Line for Shampoo Cream Lotion
Specifications
packaging type :
Bottles
Weight (KG) :
500
Production capacity :
1800-2500BPH
Voltage :
1P/220V/50HZ, 110V/220V
video outgoing-inspection :
Provided
Payment Terms :
TT
packaging material :
Plastic, Wood
Control :
PLC+ Touch Screen
Function :
piston filling and capping
Delivery Time :
7 work days
Suitable for :
shampoo, detergent, lotion, etc
Filling volume :
10ml-2000ml
Price :
R 67 353,46-84 191,82
driven type :
Electric
key selling points :
High-Accuracy
After-sales Service Provided :
Video Technical Support, Field installation, commissioning and training, Online support
Filling nozzles :
4/6/8/10/12(customized)
Brand Name :
COSMATI
dimension(l*w*h) :
2000 x 1100 x 2200mm
machinery test report :
Provided
filling nozzle :
2, 1, 6, 4
core components :
Motor, PLC
Bottle :
glass bottle/plastic bottle
Packaging Details :
wooden cases
automatic grade :
Automatic
Keywords :
shampoo filling capping and labeling machine
warranty :
1 Year
filling accuracy :
±1%
Place of Origin :
Guangdong, China
MOQ :
1
Supply Ability :
10000 set
Product name :
Automatic Liquid Paste Filling Machine
application :
Commodity, Chemical
Filling Volume :
500 mL, 200mL, 100mL, 300mL, 1L, 400 mL
filling material :
Water, detergent, shampoo
Description

Introduction

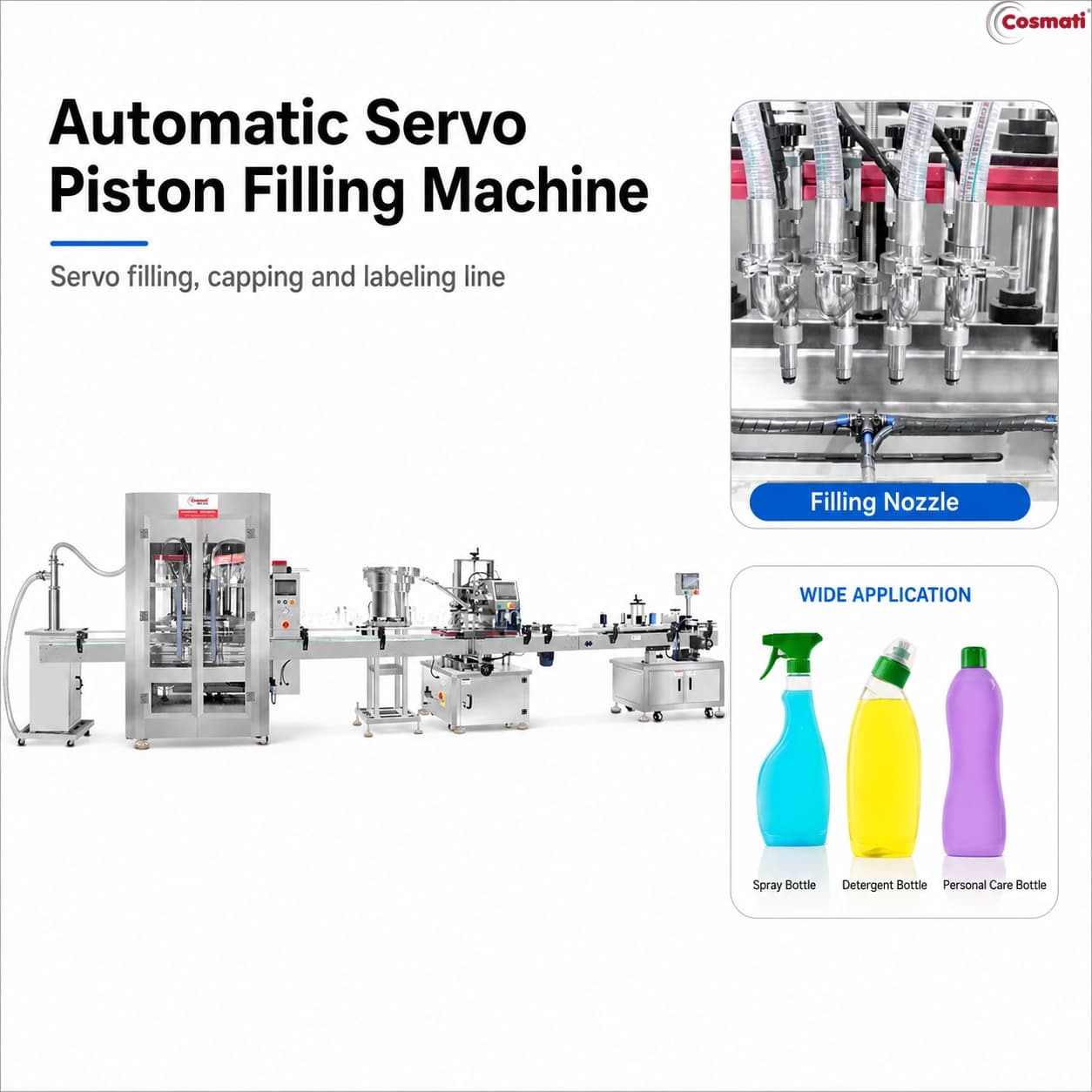

The Automatic Servo Piston Filling Capping Labeling Line is designed for automatic filling and packaging of shampoo, cream, lotion, honey and other liquid or viscous products.

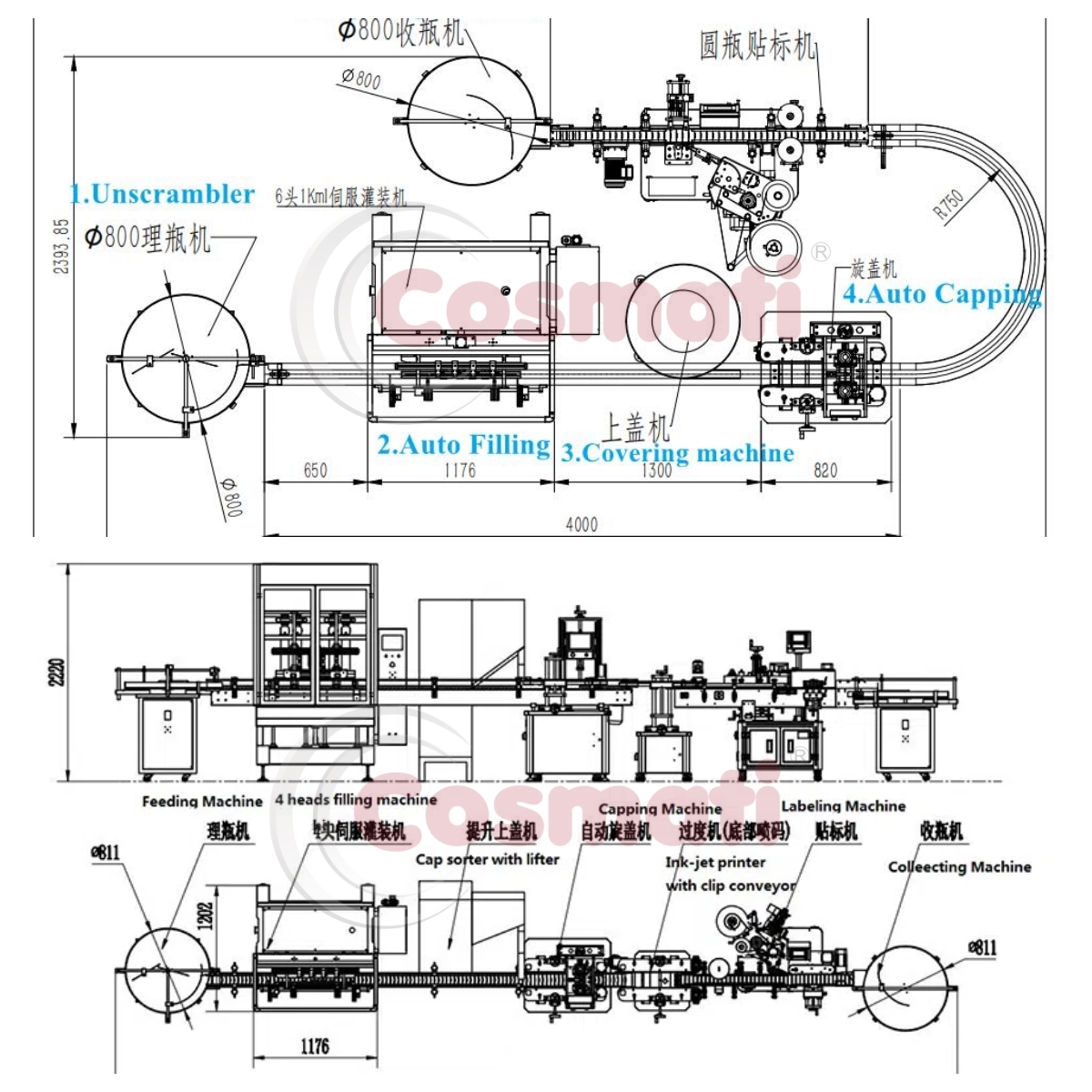

The production line combines material feeding, servo piston filling, cap feeding, capping and labeling into a continuous packaging process. The servo motor drives the piston filling system, providing precise filling control and convenient volume adjustment for different bottle sizes and production requirements.

Multiple anti-drip filling nozzles improve filling efficiency while helping reduce dripping, stringing and product waste. The four-way valve provides stable material circulation and reliable sealing performance throughout the filling process.

The machine adopts a PLC and touch screen control system, allowing operators to adjust filling parameters and monitor machine operation through a user-friendly interface.

Optional automatic cap feeding, capping and labeling equipment can be integrated according to bottle shape, cap type and labeling requirements, making the line suitable for cosmetic, personal care, food and daily chemical production.

Key Features

  • Servo motor driven piston filling provides precise and repeatable dosing.
  • Filling volume can be adjusted conveniently through the control system.
  • Multi-nozzle configuration improves production efficiency.
  • Anti-drip filling nozzles reduce dripping and product stringing.
  • Four-way valve provides smooth material circulation and strong sealing performance.
  • PLC touch screen provide convenient operation and parameter adjustment.
  • Feeding pump continuously supplies material to the filling system.

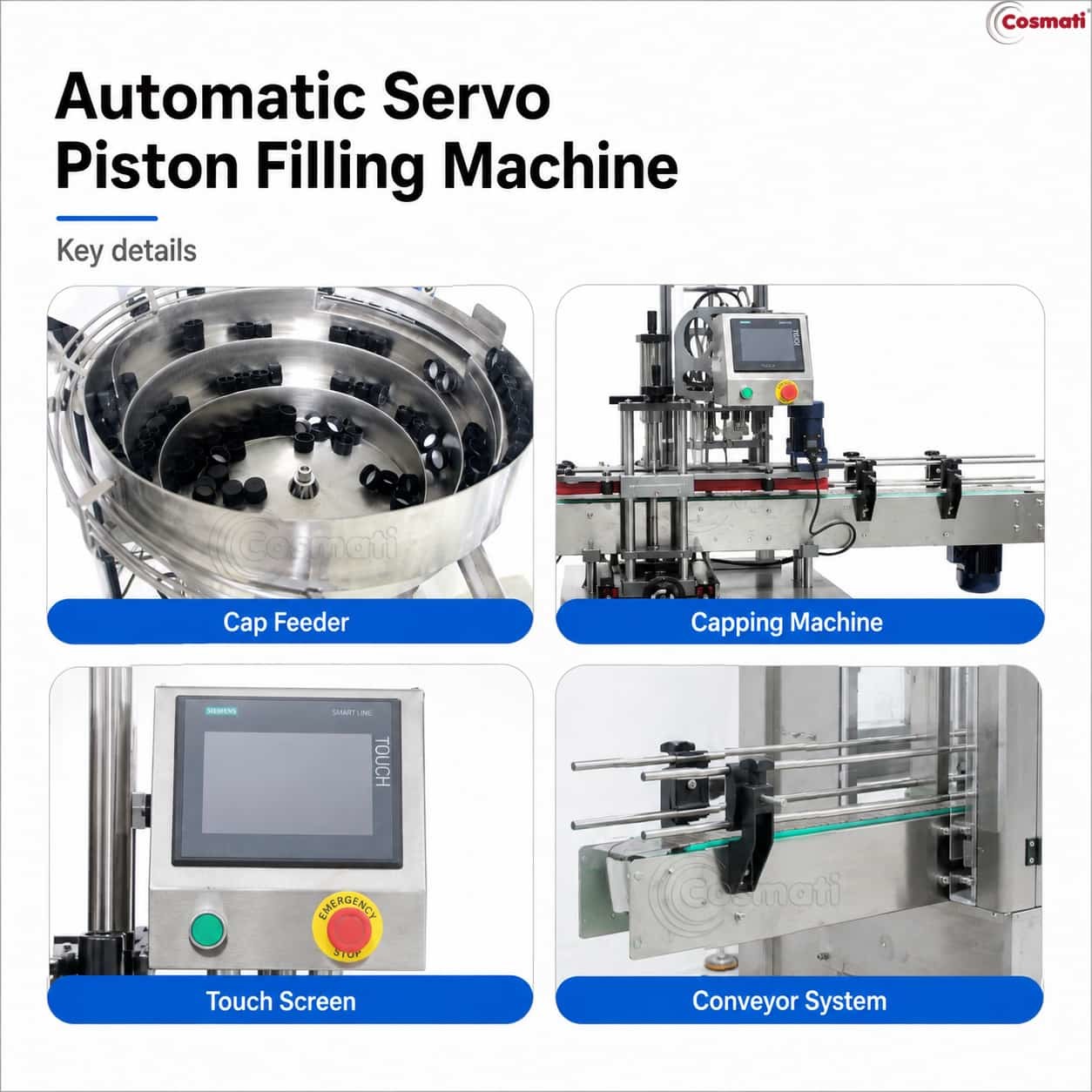

  • Automatic cap feeder can be customized according to cap diameter.
  • Capping machine supports different cap styles including screw caps and pump caps.
  • Labeling machine supports round bottle labeling and double-side labeling.
Factory profile
Automatic Servo Piston Filling Capping Labeling Line for Shampoo Cream Lotion

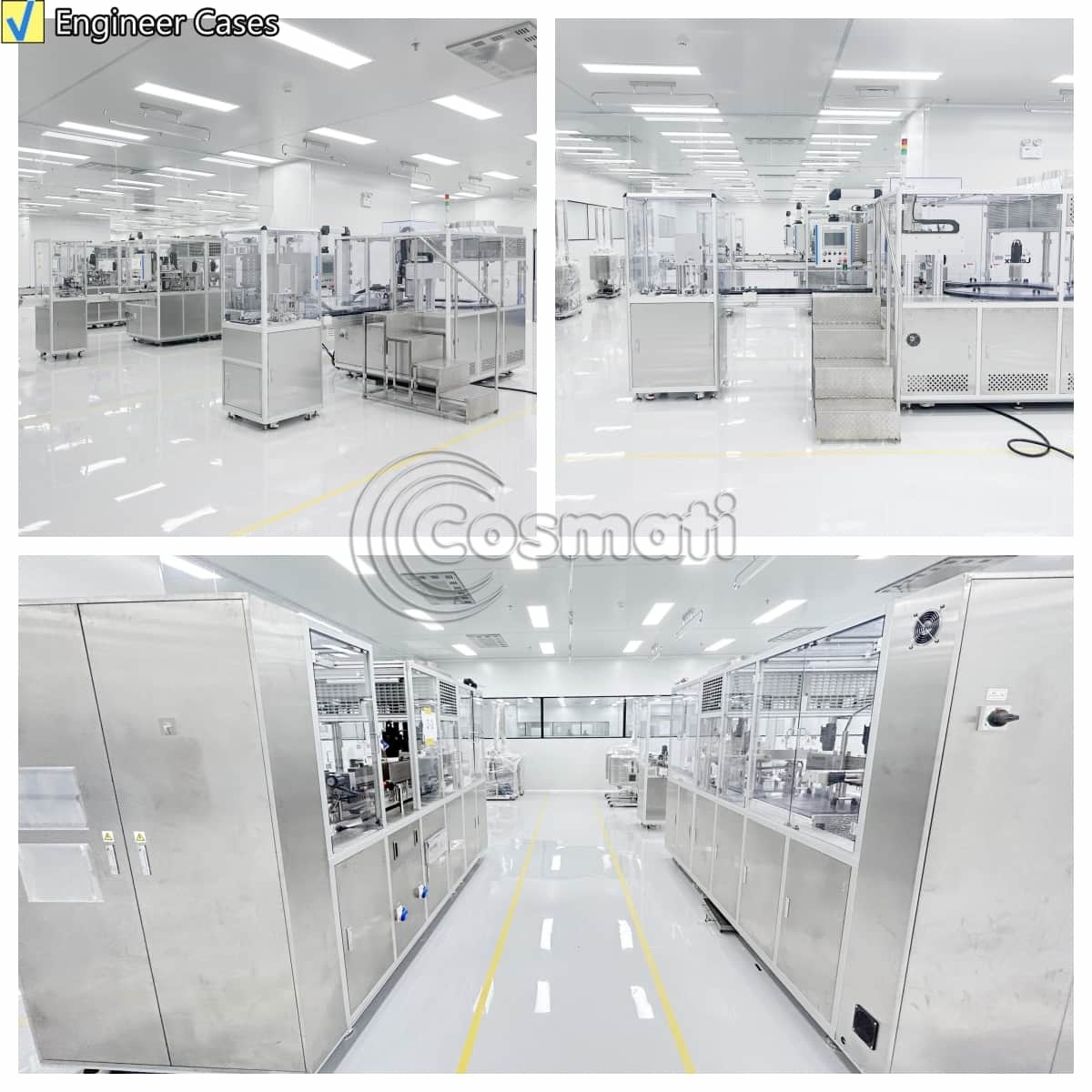

Engineer case
Automatic Servo Piston Filling Capping Labeling Line for Shampoo Cream Lotion
Automatic Servo Piston Filling Capping Labeling Line for Shampoo Cream Lotion
Automatic Servo Piston Filling Capping Labeling Line for Shampoo Cream Lotion
Automatic Servo Piston Filling Capping Labeling Line for Shampoo Cream Lotion
Trade show participation
Automatic Servo Piston Filling Capping Labeling Line for Shampoo Cream Lotion

Customer visit

Automatic Servo Piston Filling Capping Labeling Line for Shampoo Cream Lotion
Automatic Servo Piston Filling Capping Labeling Line for Shampoo Cream Lotion

Packaging & shipping specifications

Automatic Servo Piston Filling Capping Labeling Line for Shampoo Cream Lotion

FAQ

1. What products can this production line fill?

The machine is suitable for shampoo, cream, lotion, honey, conditioner, liquid soap, gel and other liquid or viscous products.

2. What filling method does the machine use?

The filling machine uses a servo driven piston filling system.

The servo motor controls piston movement to provide accurate and repeatable product dosing.

3. Why use a servo motor?

Servo control provides precise piston positioning and makes filling volume adjustment easier.

It also helps maintain stable filling performance during continuous production.

4. Can the filling volume be adjusted?

Yes. Filling parameters can be adjusted according to different bottle capacities within the supported machine range.

5. Can this machine fill thick products?

Yes. Servo piston filling is suitable for many medium and high viscosity products including cream, lotion, honey and cosmetic paste.

The filling cylinder and nozzle should be selected according to actual viscosity.
